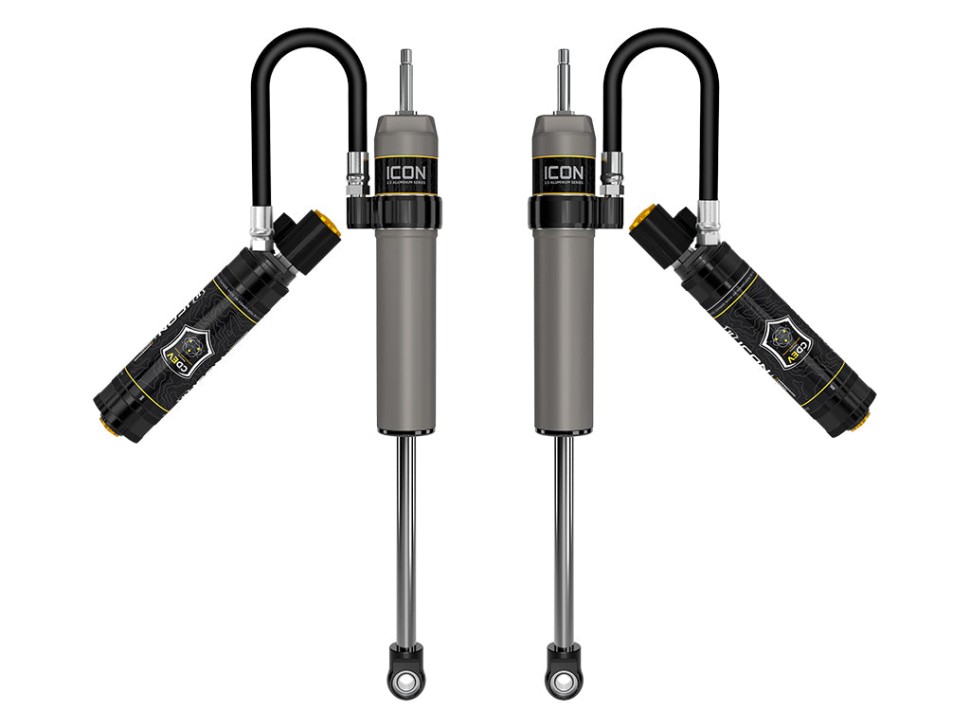

Icon Vehicle Dynamics 67800EP 2.5 VS Remote Reservoir CDEV Rear Reservoir Adjustable Shock Lift 0-2.5" Ford F-250/F-350 17-26 Pair

ICON V.S. 2.5 Aluminum Series Shocks with CDEV

ICON V.S. 2.5 Aluminum Series shocks with CDEV are vehicle-specific performance shocks configured in both length and damping tune for each application. Piggyback and remote reservoir designs use a 6061 billet aluminum manifold below the top cap to create an internal Bump Zone that increases damping near full compression to reduce harsh bottom-outs. These shocks are fully rebuildable and re-tunable and include the CDE valve upgrade for electronic in-vehicle adjustment.

The Compression Damping Electronic Valve (CDEV) meters oil flow to regulate compression damping. The infinitely variable valve reacts in under 40ms and makes precise adjustments across varying terrain. Hydraulic circuits are custom tailored per application. The system leverages onboard G-force and gyroscope sensors and algorithm-driven control to predict terrain and adjust shock settings.

Key Features

• Electronic in-vehicle adjustment: CDEV allows on-the-fly compression damping changes and active adjustment via ICON Intelligent Control.
• Bump Zone: Internal bump zone increases damping by approximately 20% as the shock approaches full compression to improve control and prevent harsh bottoming.
• Durable construction: One-piece, hard-anodized, impact-extruded aluminum cylinders for corrosion resistance and consistent finish.
• Improved heat dissipation: Remote reservoir design reduces shock fade during prolonged use.
• Premium oil: Grade 5WT shock oil for consistent damping across a wide temperature range.
• Piston design: One-piece digressive piston with vehicle-specific valving for balanced on- and off-road performance.
• Robust shaft: 7/8" induction hardened, chrome-plated shock shaft.
• High-quality mounts: PTFE-lined spherical bearings and application-specific mounting hardware.
• Precision components: 6061 aircraft-grade aluminum CNC machined components.
• Serviceable: Fully rebuildable and re-tunable.

Notes

• OEM wheels & tires fitment: Yes
• Recommended aftermarket wheels: ICON Alloys - 17x8.5" with 5.00" backspace / 6mm offset
• Recommended aftermarket wheels: ICON Alloys - 18x9" with 5.25" backspace / 6mm offset
• Recommended aftermarket wheels: ICON Alloys - 20x9" with 5.25" backspace / 6mm offset
• Only fits 4WD models
• Shocks are fully serviceable
• An iOS operated device is required to run the ICON Intelligent Control app
• Also requires installation of the applicable IIC kit and CDEV rear shocks
• Compatible with 0–3" of front lift over stock of 2017–2019 F-250/F-350 4WD
• Compatible with 0–3.75" of front lift over stock of 2020–2022 F-250/F-350 4WD without Tremor package
• Compatible with 0–2.75" of front lift over stock of 2020–2022 F-250/F-350 4WD equipped with Tremor package
• Compatible with 0–3" of front lift over stock of 2023–2025 F-250/F-350 4WD without Tremor package
• Compatible with 0–2" of front lift over stock of 2023–2025 F-250/F-350 4WD equipped with Tremor package
• Can be installed as secondary shocks in OE location with ICON 2.5–3" lift coilover conversions without CDEV; part number 611003 required
• Can be installed as secondary shocks in OE location with ICON 2.5–3" lift coilover conversions with CDEV; part numbers 61720E or 61723E required, and part numbers 611003 and 191207 also required
