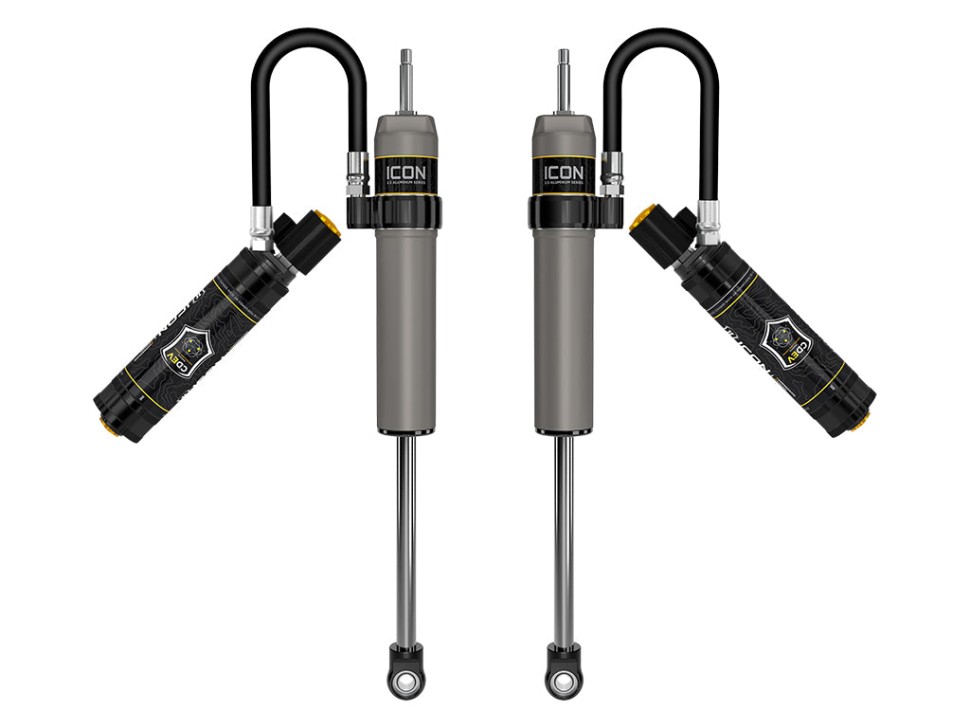

Icon Vehicle Dynamics 67810EP 2.5 VS Remote Reservoir CDEV Rear Reservoir Adjustable Shock Lift 4.5" Ford F-250/F-350 17-26 Pair

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series Shocks with CDEV

ICON V.S. 2.5 Aluminum Series shocks with CDEV are engineered for outstanding off-road performance and a smooth on-road ride. Each shock is configured for the specific vehicle application in both length and damping tune. A 6061-billet aluminum manifold located below the top cap creates an internal Bump Zone, increasing damping by approximately 20% to help prevent harsh bottom-outs and control high-velocity compression. These shocks are fully rebuildable and re-tunable, and include the ICON CDEV upgrade for electronic ride tuning from inside the vehicle.

The Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters oil flow to regulate compression damping. The infinitely variable valve reacts in under 40 ms and delivers precise adjustments for varying terrain. Hydraulic circuits are custom tailored per application for maximum resolution and dynamic range. The system uses ICON Intelligent Control and the ICON mobile app, leveraging onboard G-force and gyroscope sensors with proprietary algorithms to predict terrain and adjust shock settings via the CDEV.

Key Features

• In-vehicle adjustable CDEV: Allows on-the-fly compression damping adjustment and active control via ICON Intelligent Control (IIC).
• Internal Bump Zone: Increases damping by 20% to control near-full compression events.
• Durable construction: One-piece, hard-anodized, impact-extruded aluminum cylinders for corrosion resistance and consistent finish.
• Remote reservoir design: Improves heat dissipation to reduce shock fade during prolonged use.
• Premium shock oil: Grade 5WT oil for consistent damping across a wide temperature range.
• Piston design: One-piece digressive piston with vehicle-specific valving for superior on- and off-road ride quality.
• High-strength shaft: 7/8" induction-hardened, chrome-plated shock shaft.
• Quality hardware: PTFE-lined spherical bearings and application-specific mounting hardware.
• CNC components: 6061 aircraft-grade aluminum CNC machined parts.
• Serviceable: Fully rebuildable and re-tunable.

Notes

• Compatible with 4.5" of front lift over stock, or 3.5" of front lift over stock if equipped with Tremor package.
• Also requires installation of IIC part number 93500 and CDEV rear shock part number 37701EP.
• Can be installed as secondary shocks in OE location with ICON coilover conversion part number 61721 or 61721C; Reservoir Doubler Kit part number 611003 is also required.
• Can be installed as secondary shocks in OE location with ICON CDEV coilover conversion part number 61721E; Reservoir Doubler Kit part number 611003 and IIC Alt Function Plug part number 191207 are also required.
