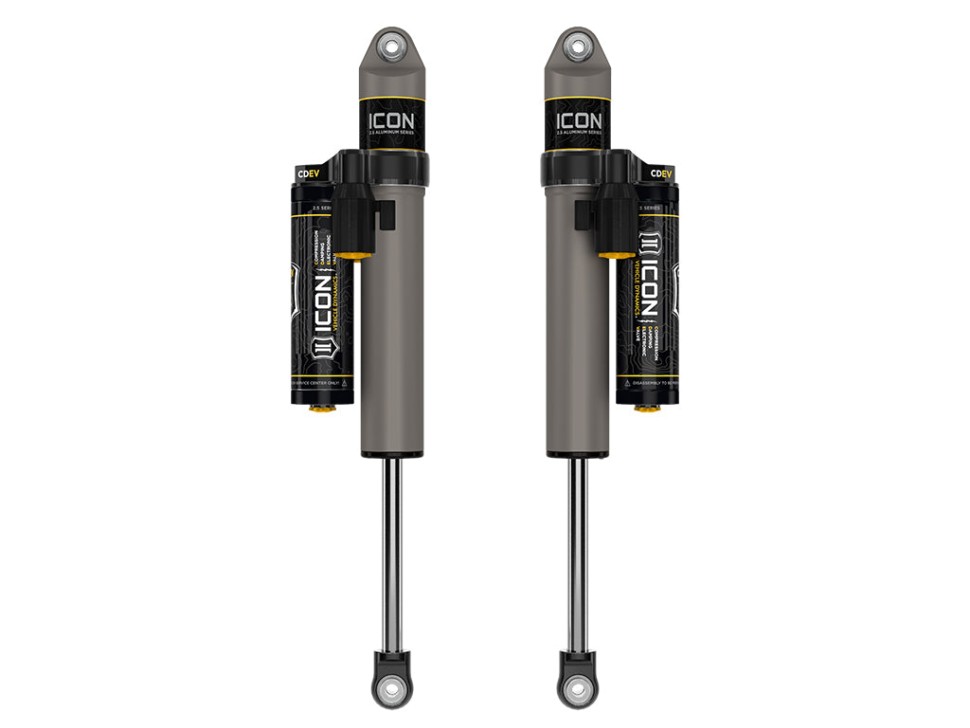

Icon Vehicle Dynamics 37701EP 2.5 VS PB Rear Reservoir Shock Lift 3-6" Ford F-250/F-350 17-26 Pair

ICON V.S. 2.5 Aluminum Series Shocks with CDEV

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are engineered to deliver outstanding off-road performance and a smooth on-road ride. Each shock is configured for the specific vehicle application in both length and damping tune. For piggyback and select remote reservoir applications, a 6061-billet aluminum manifold below the top cap creates an internal Bump Zone that adds an additional 20% of damping force to help prevent harsh bottom outs and control high-velocity compression. These shocks are fully rebuildable and re-tunable, and include the ICON CDE Valve upgrade for in-vehicle electronic ride tuning.

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters oil flow to regulate compression damping. The infinitely variable valve can react in under 40 ms and makes precise adjustments for varying terrain. Hydraulic circuits are custom tailored per application to maximize resolution and dynamic range. Integrated control uses onboard G-force and gyroscope data with proprietary algorithms and user settings to predict terrain and adjust damping via the CDEV.

Key Features

• In-vehicle and active adjustment: CDEV allows adjustment of compression damping settings and active control via ICON Intelligent Control.
• Bump Zone: Internal bump zone increases damping by 20% as the shock approaches full compression.
• Aluminum construction: One-piece, hard-anodized, impact-extruded aluminum cylinders for corrosion resistance and consistent finish.
• Piggyback reservoir: Improves heat dissipation to reduce shock fade during prolonged use.
• Premium shock oil: Grade 5WT oil for consistent damping across a wide temperature range.
• Piston design: One-piece digressive piston with vehicle-specific valving for superior on- and off-road ride quality.
• Durable shaft: 7/8" induction-hardened, chrome-plated shock shaft.
• High-quality hardware: PTFE-lined spherical bearings and application-specific mounting hardware.
• CNC components: 6061 aircraft-grade aluminum CNC-machined parts.
• Serviceable: Fully rebuildable and re-tunable for long-term maintenance and customization.

Notes

• Will not fit F-350/F-450 cab & chassis models
• Shocks are fully serviceable
• An iOS-operated device is required to run the ICON Intelligent Control app
• Also requires installation of the applicable IIC kit and CDEV front shocks
• Compatible with 3–6" of rear lift over stock
