Icon Vehicle Dynamics 61721E 2.5 VS Remote Reservoir CDEV Front Coilover Reservoir Adjustable Shock Lift 4-5.5" Ford F-250/F-350 17-26 Pair

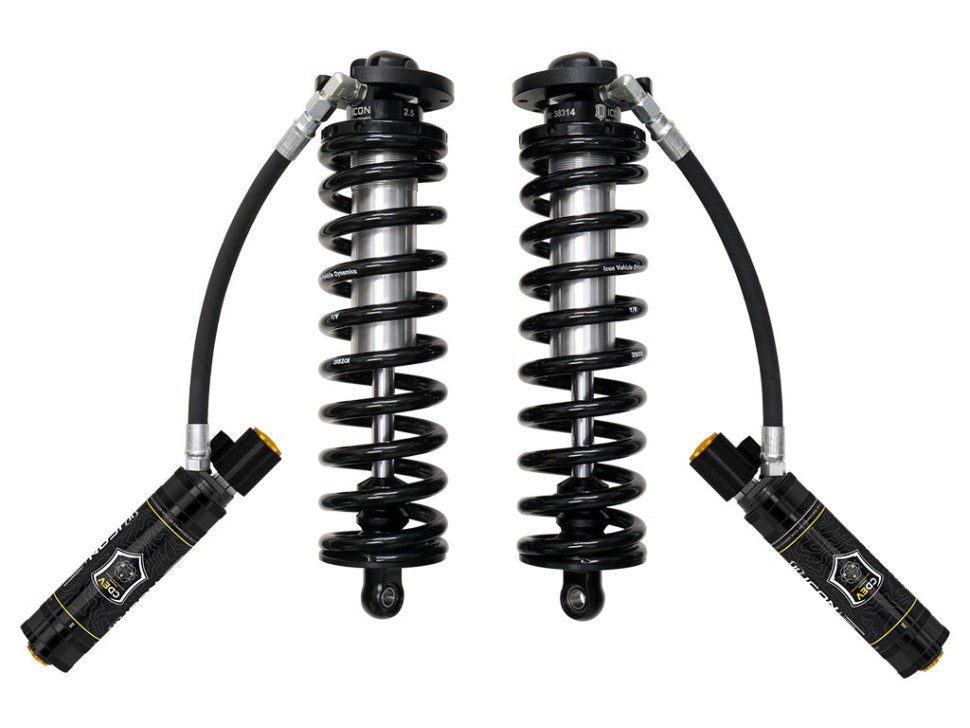

ICON 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit

The ICON 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit adds enhanced damping performance and adjustable ride height for 2017–2025 F-250 and F-350 trucks. Based on ICON’s 2.5 VS Series shock platform, the kit features ICON-engineered coil springs, FK rod end bearings, vehicle-specific valving, precision machined components, and a fully serviceable design for rebuilds and retuning. The ICON CDEV (Compression Damping Electronic Valve) upgrade is included to allow in-vehicle electronic tuning of compression damping.

The CDEV is an electronically controlled valve that meters oil flow to regulate compression damping. It is infinitely variable, can react in less than 40 ms, and provides precise adjustments across varying terrain. When paired with ICON Intelligent Control and the ICON mobile app, CDEV uses onboard G-force and gyroscope data plus user-defined settings to predict terrain and actively adjust shock behavior.

Key Features

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers for user-defined stance
• ICON CDEV technology enables in-vehicle compression adjustment and active control via ICON Intelligent Control
• Improved vehicle dynamics with decreased body roll and better on- and off-road ride quality
• Vehicle-specific valving for optimized ride quality and control
• Coilover conversion compatible with optional secondary shocks
• Corrosion-resistant CAD-plated shock body with 7/8" shaft
• ICON-engineered coil springs guaranteed for life against sagging or breakage
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable for long-term serviceability

Notes

• Factory wheels and tires fitment: Yes
• Recommended aftermarket wheels: ICON Alloys — 17x8.5" with 5.00" backspace / 6mm offset
• Recommended aftermarket wheels: ICON Alloys — 18x9" with 5.25" backspace / 6mm offset
• Recommended aftermarket wheels: ICON Alloys — 20x9" with 5.25" backspace / 6mm offset
• Recommended aftermarket tires (2005–2016 models): 35" x 12.50" (37" x 12.50" possible with fender trimming and modifications)
• Recommended aftermarket tires (2017–2024 models): 37" x 12.50" (larger tires may fit but will require fender trimming and modifications)
• Only fits 4WD models
• Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
• Removal of the coil centering cup in the factory coil bucket is required for installation
• Lift heights are based on 4WD Crew Cab diesel
• Secondary shock options are available
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• An iOS-operated device is required to run the ICON Intelligent Control app
• Requires installation of the applicable ICON Intelligent Control (IIC) kit and CDEV rear shocks
• If installing with ICON 2.5 Aluminum Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is required
• If installing with ICON 2.5 Aluminum Series CDEV remote reservoir secondary shocks, part number 191207 is required
• 2005–2019 Super Duty diesel models: front lift height range of 4–5.5" over stock
• 2020–2022 Super Duty diesel models without Tremor package: front lift height range of 4.75–6.25" over stock
• 2020–2022 Super Duty diesel models with Tremor package: front lift height range of 3.75–5.25" over stock
• 2023–2025 Super Duty diesel models without Tremor package: front lift height range of 4–5.5" over stock
• 2023–2025 Super Duty diesel models with Tremor package: front lift height range of 3–4.5" over stock
• 2023–2025 Super Duty gas models without Tremor package: front lift height range of 4.5–6" over stock
• 2023–2025 Super Duty gas models with Tremor package: front lift height range of 3.5–5" over stock
