Icon Vehicle Dynamics 98520DJ Upper Control Arm Kit Lift 0-3.5" Ford Ranger 19-21
Product images
+11
points
points
| Brand | Icon Vehicle Dynamics |
| Note | Compatible with 2019-2021 Rangers equipped with aluminum knuckles only |
| Note | Not compatible with Ranger Raptor |
| Installation side | Front Upper |
| Lift Height, inch | 0-3.5" |
| Box Height | 6 in |
| Box Width | 16 in |
| Box Length | 15 in |

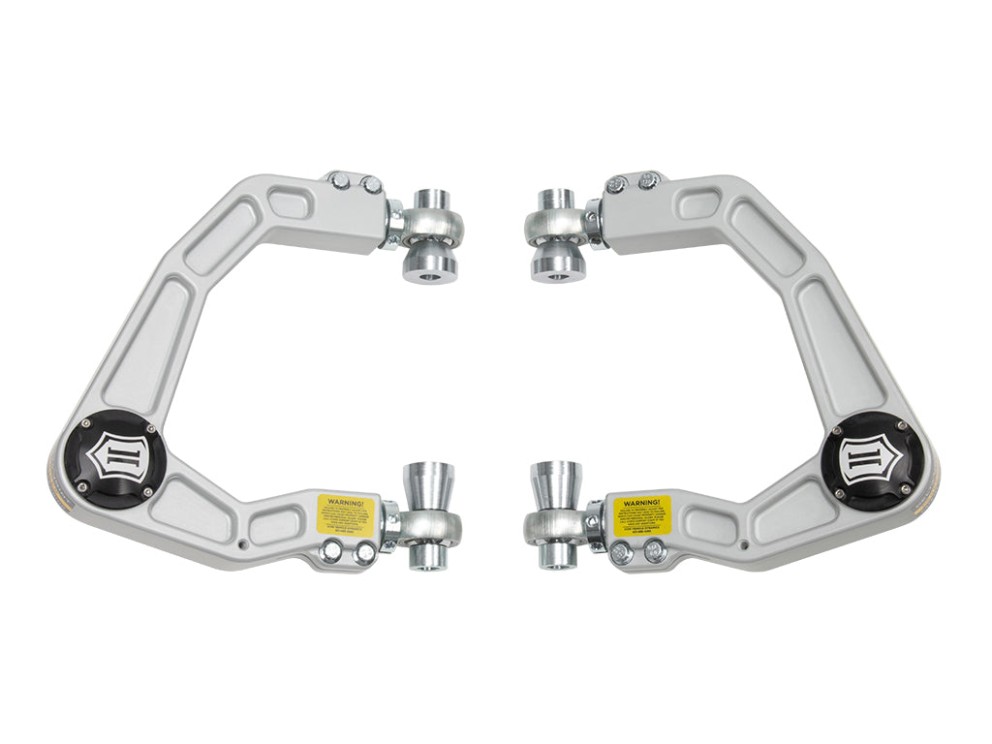

ICON Billet Aluminum Upper Control Arm Kit — 2019–2021 Ford Ranger
This ICON billet aluminum upper control arm kit is engineered to improve front-end geometry and suspension performance for the 2019–2021 Ford Ranger. The arms provide corrected alignment, adjustable camber and caster, increased suspension component clearance, and full bump and droop travel while eliminating bind.
Constructed from CNC-machined 6061 billet aluminum, these control arms combine lightweight design with high strength. The ICON Delta Joint replaces the OE ball joint to provide durable, high-angle articulation with a sealed, greaseable design for extended service life and quiet operation. ICON’s double adjuster sleeves allow on-vehicle camber and caster adjustment, and the kit includes all components and hardware required for a complete installation.
- Material: CNC-machined 6061 billet aluminum for light weight and exceptional strength
- Delta Joint: ICON high-angle, sealed ball joint for enhanced durability, angularity, and noise-free operation
- Adjustability: Camber and caster adjustment with ICON double adjuster sleeves for on-vehicle tuning
- Rod Ends: PTFE-lined 7/8" rod ends for improved response and smooth articulation
- Fitment: Vehicle-specific taper pin for OE-like fitment
- Protection: Built-in o-ring sealed dust cover cap
- Includes: All components and hardware necessary for a complete install
Icon Vehicle Dynamics 98520DJ Upper Control Arm Kit Lift 0-3.5" Ford Ranger 19-21 - Features
| Brand | Icon Vehicle Dynamics |
| Note | Compatible with 2019-2021 Rangers equipped with aluminum knuckles only |
| Note | Not compatible with Ranger Raptor |
| Installation side | Front Upper |
| Lift Height, inch | 0-3.5" |
| Box Height | 6 in |
| Box Width | 16 in |
| Box Length | 15 in |
| Box Weight | 25 lbs |
| UPCCode | 840103407449 |
| Submodel | Lariat, XL, XLT |
| Fitment | 2019||Ford||Ranger, 2020||Ford||Ranger, 2021||Ford||Ranger |
Icon Vehicle Dynamics 98520DJ Upper Control Arm Kit Lift 0-3.5" Ford Ranger 19-21 reviews
No reviews for this product. Be the first to leave feedback!
