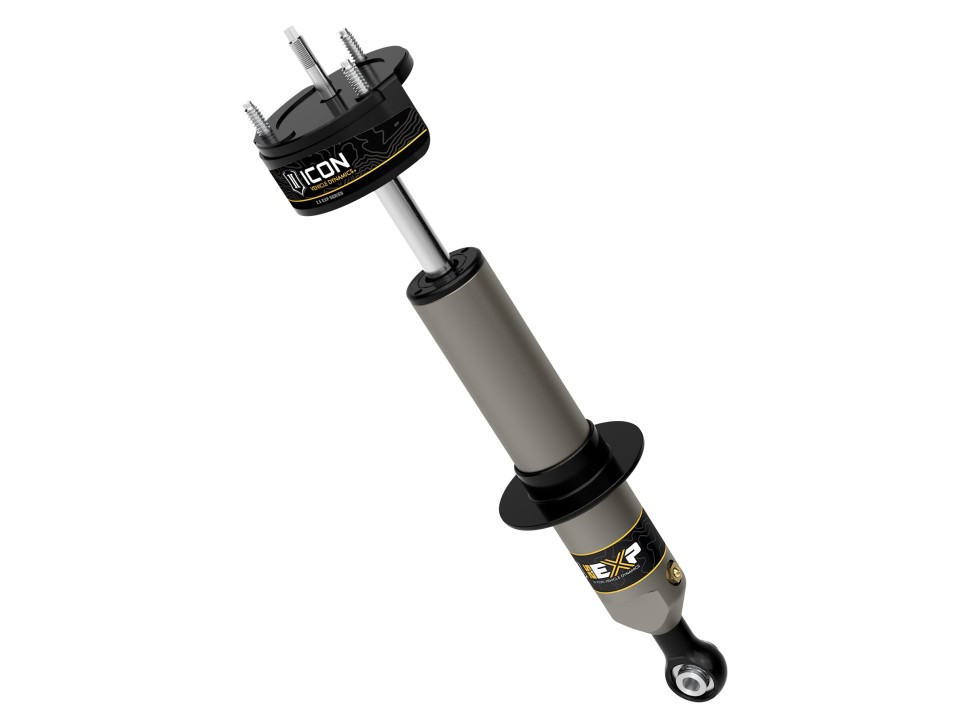

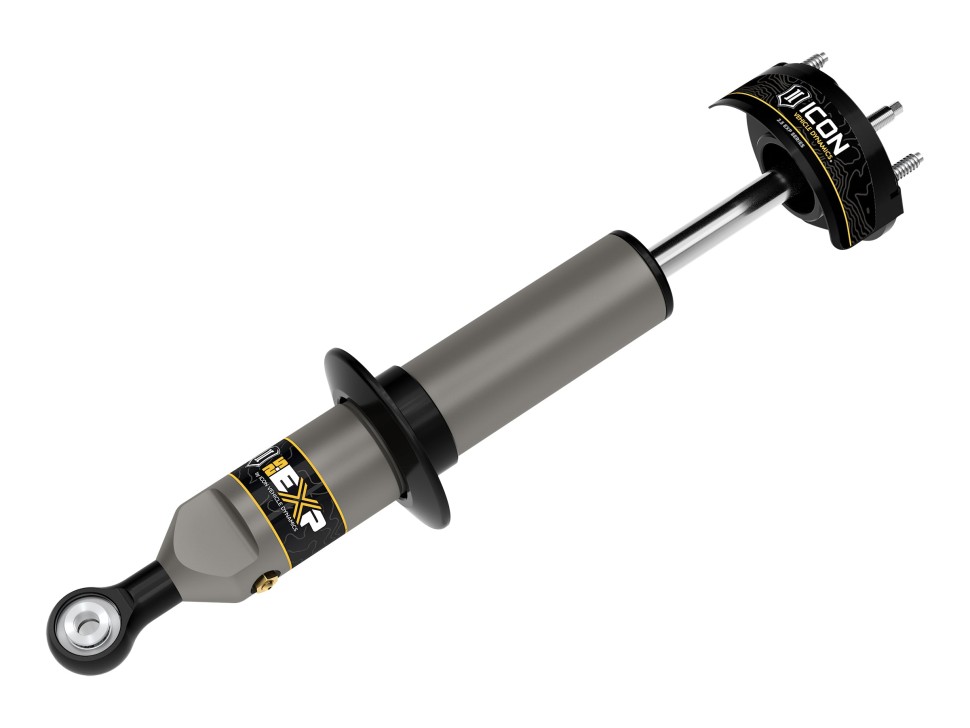

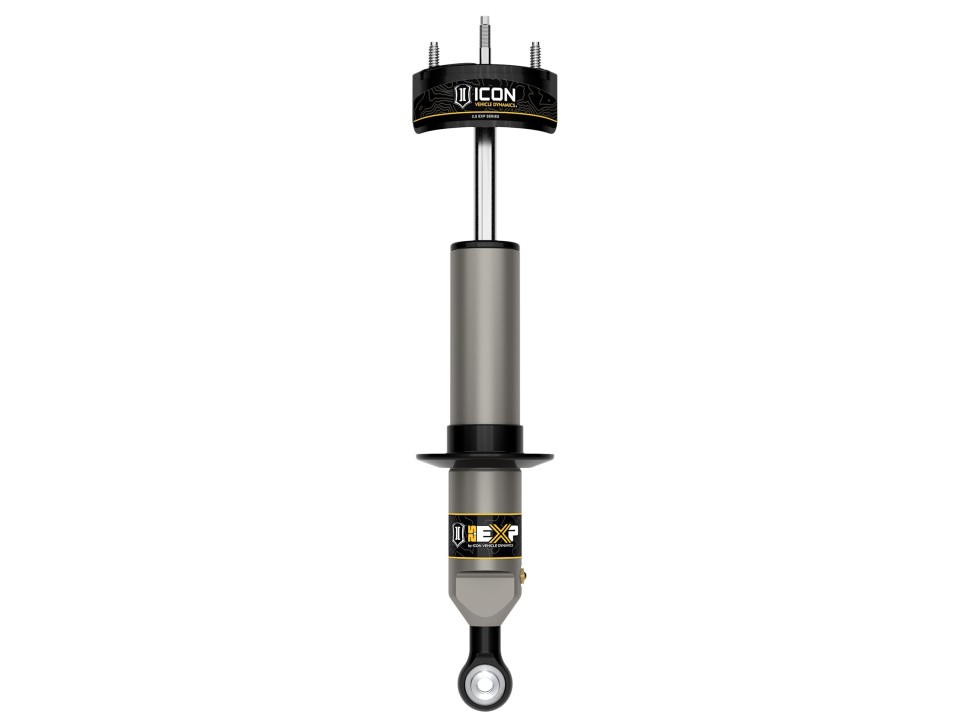

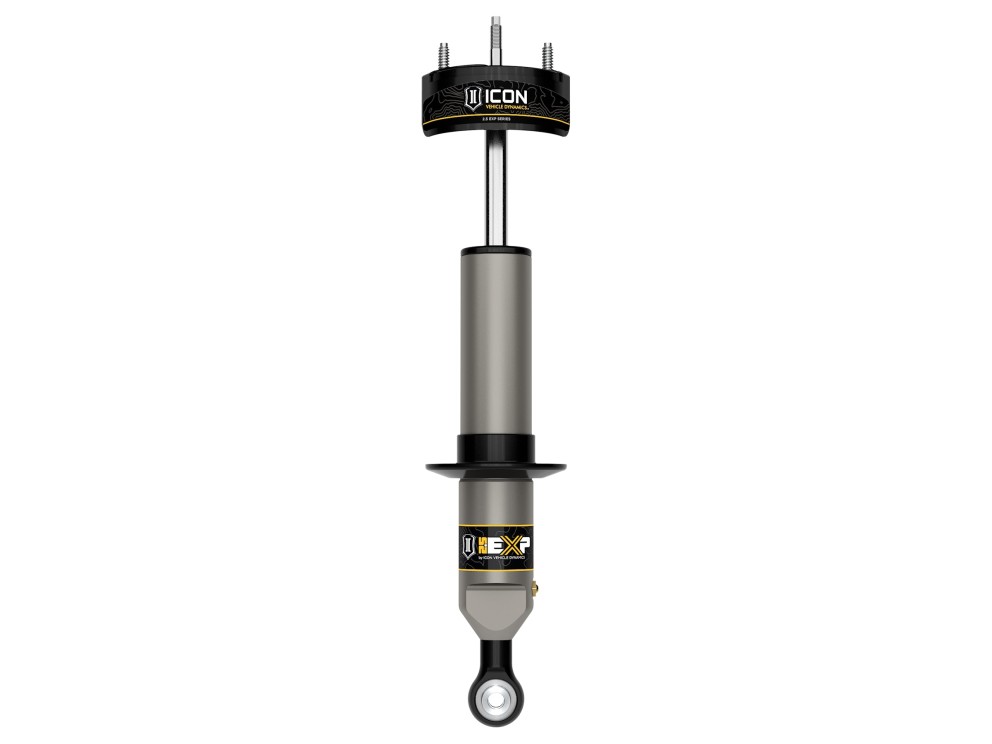

Icon Vehicle Dynamics 58632 2.5 EXP Front Snap Ring Coilover Shock Lift 0-2" Toyota Tacoma 05-23

EXP Series

The EXP Series is built on a proven 2.5-inch aluminum shock design with a one-piece impact-extruded, hard-anodized cylinder for consistent finish and superior corrosion resistance. It features a 7/8-inch diameter induction-hardened, chrome-plated shaft and mounts in a shaft-up orientation for 2005–2023 Toyota Tacoma applications. Upper shock mount and spring seat are included.

The CNC-machined 6061 billet aluminum coil spring seat is made to accept the Tacoma's OE coil springs. Machined snap-ring grooves in the shock body allow selectable front ride-height adjustment from 0" to 2" of lift over stock.

EXP shocks use a one-piece digressive piston tuned for the Tacoma and its stock front coil springs to maximize damping performance and ride quality on- and off-road. The larger piston and increased oil volume of the 2.5-inch aluminum body improve heat dissipation versus smaller steel-bodied OE shocks, delivering longer-lasting performance under prolonged high-speed or rough-terrain use. Shocks are fully rebuildable and re-valvable by a qualified shock technician; replacement parts are available.

• Vehicle fitment: 2005–2023 Toyota Tacoma
• Tuning: Vehicle-specific valving for superior damping and control
• Construction: 2.5" aluminum shock body with internal reservoir
• Adjustable ride height: 0–2" front lift over stock via snap-ring selection
• Spring compatibility: Utilizes factory coil springs and coil hardware
• Shaft design: Inverted shaft-up configuration with 7/8" induction-hardened, chrome-plated shaft
• Finish: Impact-extruded, hard-anodized aluminum cylinder for corrosion resistance
• Components: CNC-machined 6061 aluminum parts with black anodized finish
• Mounting hardware: PTFE-lined spherical bearing for extended longevity and minimal deflection
• Serviceability: Fully rebuildable and re-tunable

Notes

• OEM wheels and tires fitment: Yes
• Recommended aftermarket wheel sizes: 17x8.5 (4.75" backspace / 0mm offset), 18x9 (5.00" backspace / 0mm offset), 20x9 (5.00" backspace / 0mm offset)
• Recommended aftermarket tire size: 33" x 11.50" (minor fender trimming may be required)
• Shocks are fully serviceable; lift heights indicated are for a stock-equipped vehicle
• Trimming may be required for the recommended tire size
• Not compatible with TRD Pro models
• Not compatible with 2005–2015 rear-wheel-drive Tacomas with 5-wheel lug studs
• May require a sway bar relocation bracket for proper installation
• Not compatible with Tacoma Trail or Tacoma Trail Special Edition
