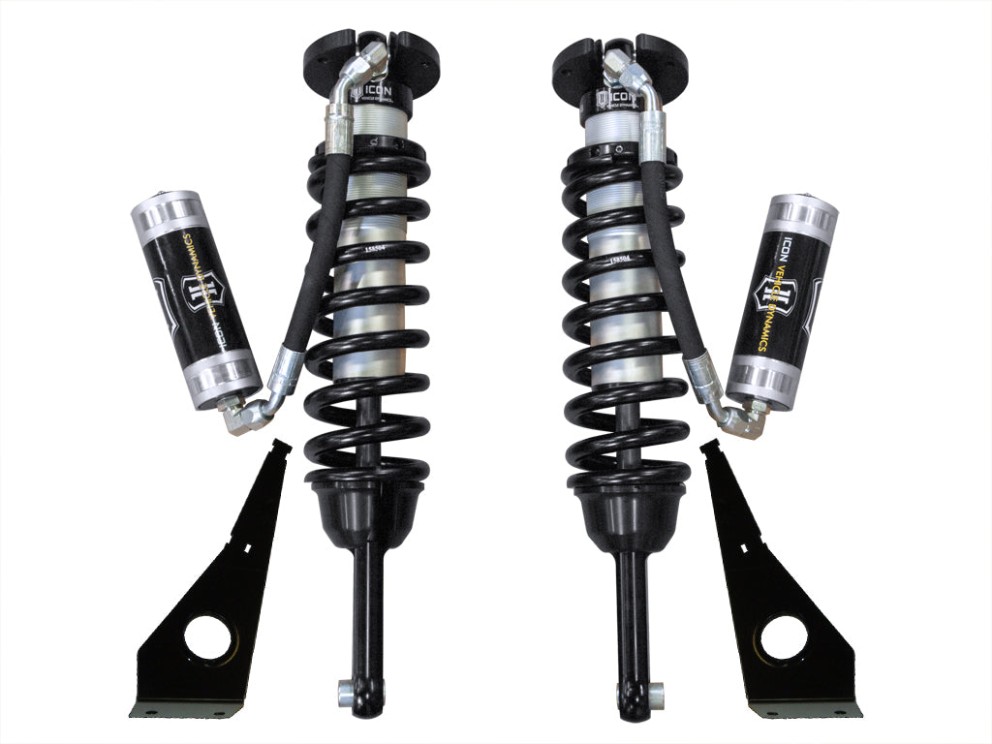

Icon Vehicle Dynamics 58731-CB 2.5 VS Remote Reservoir Front Coilover Reservoir Shock Lift 6" Toyota Tacoma 05-23 Pair

Name: Icon Vehicle Dynamics 58731-CB 2.5 VS Remote Reservoir Front Coilover Reservoir Shock Lift 6" Toyota Tacoma 05-23 Pair
Brand: Icon Vehicle Dynamics
SKU: 58731-CB
Price: 2126.28 USD
Availability: OutOfStock

+21
points

Brand	Icon Vehicle Dynamics
Note	Requires compatible 6" subframe lift. Coilover length optimized for Pro Comp 6" lift but may also be compatible with kits from other manufacturers
Note	Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Note	Will not fit 2WD Tacoma with 5 wheel lug studs
Series	2.5 VS Remote Reservoir
Installation side	Front
Lift Height, inch	6"
Type Adjusters	Non Adjustable

show all features

ICON Vehicle Dynamics V.S. 2.5 Series Remote Reservoir Front Coilovers

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilovers are a performance upgrade for the 2005–2023 Toyota Tacoma. These coilovers provide lift height adjustability for fine-tuning ride height and accommodating larger, more aggressive wheel and tire combinations. A larger 2.5" shock body and increased piston area deliver maximum travel and superior ride quality both on- and off-road. Remote reservoirs increase shock oil volume and heat dissipation to resist overheating and cavitation under hard use. When paired with ICON 2.0 or 2.5 Aluminum Series rear shocks, front-to-rear vehicle control is balanced for an improved overall driving experience.

Increased wheel travel and improved ride quality over stock
Vehicle-specific tuning for superior shock damping and control
Height-adjustable coilovers with application-specific length for fitment with 6" lift kits
Remote reservoirs for cooler operating temperatures and resistance to damper fade
ICON-engineered coil springs
6061 aircraft-grade aluminum CNC-machined components
Corrosion-resistant CAD-plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable

Notes

700 lb coil spring available for heavier-equipped vehicles.
Requires recalibration of Advanced Driver Assistance Systems (ADAS) after installation.
Will not fit 2WD Tacoma with 5 wheel lug studs.
Requires compatible 6" subframe lift. Coilover length optimized for 6" lift kits and may be compatible with other manufacturers' kits.

Icon Vehicle Dynamics 58731-CB 2.5 VS Remote Reservoir Front Coilover Reservoir Shock Lift 6" Toyota Tacoma 05-23 Pair - Features

Brand	Icon Vehicle Dynamics
Note	Requires compatible 6" subframe lift. Coilover length optimized for Pro Comp 6" lift but may also be compatible with kits from other manufacturers
Note	Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
Note	Will not fit 2WD Tacoma with 5 wheel lug studs
Series	2.5 VS Remote Reservoir
Installation side	Front
Lift Height, inch	6"
Type Adjusters	Non Adjustable
Reservoir	Yes
Quantity	Pair
Box Height	7 in
Box Width	13 in
Box Length	31 in
Box Weight	53 lbs
UPCCode	840103404257
Drive Type	4WD
Submodel	SR5, TRD Sport, TRD Pro
Fitment Show all	2016\|\|Toyota\|\|Tacoma, 2017\|\|Toyota\|\|Tacoma, 2018\|\|Toyota\|\|Tacoma, 2019\|\|Toyota\|\|Tacoma, 2020\|\|Toyota\|\|Tacoma, 2021\|\|Toyota\|\|Tacoma, 2005\|\|Toyota\|\|Tacoma, 2006\|\|Toyota\|\|Tacoma, 2007\|\|Toyota\|\|Tacoma, 2008\|\|Toyota\|\|Tacoma, 2009\|\|Toyota\|\|Tacoma, 2010\|\|Toyota\|\|Tacoma, 2011\|\|Toyota\|\|Tacoma, 2012\|\|Toyota\|\|Tacoma, 2013\|\|Toyota\|\|Tacoma, 2014\|\|Toyota\|\|Tacoma, 2015\|\|Toyota\|\|Tacoma, 2022\|\|Toyota\|\|Tacoma, 2023\|\|Toyota\|\|Tacoma
