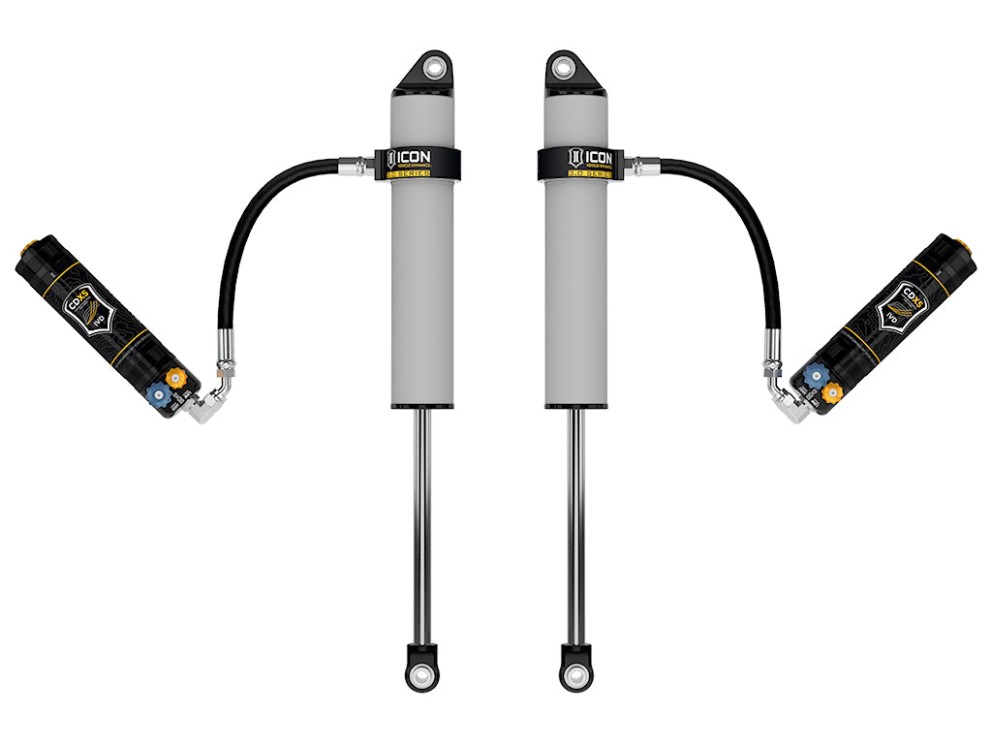

Icon Vehicle Dynamics 71705XP 3.0 VS Remote Reservoir CDXS Rear Reservoir Adjustable Shock Lift 0-2" Chevrolet Silverado/GMC Sierra 2500/3500 07-26 Pair

ICON Vehicle Specific 3.0 Series Shocks

ICON Vehicle Specific (V.S.) 3.0 Series shocks are engineered to deliver exceptional off-road capability while maintaining a smooth on-road ride. Each shock is configured for the specific vehicle application in both length and damping tune. The 3.0 Series increases piston surface area and oil volume for improved stability, heat dissipation, and reduced shock fade under hard use. ICON shocks are fully serviceable and revalveable for long-term performance and tuning.

The 3.0 Series incorporates an internal “Bump Zone” created by a billet aluminum manifold below the top cap, providing additional damping to control high-velocity compression events. ICON’s exclusive Compression Damping Dual Speed (CDXS) valves allow independent high-speed and low-speed compression adjustment for precise suspension tuning.

• Vehicle specific tuning: Designed and tuned for superior shock damping and control.
• 3.0” body diameter: Increased oil volume and larger piston area for improved performance.
• Extended travel: Designed to provide maximum wheel travel; requires appropriate front upper control arms for fitment.
• Internal Bump Zone: Adds approximately 20% more damping to help prevent harsh bottom outs and control high-velocity compression.
• Nitrogen-charged monotube with remote reservoir: Remote reservoir improves heat dissipation to reduce shock fade during prolonged use.
• CDXS adjustable compression: Independent high-speed and low-speed compression adjustment with 10 detented settings each for precise handling and aggressiveness tuning.
• Premium shock oil: Grade 5WT oil for consistent damping across a wide temperature range.
• One-piece piston design: Linear compression / digressive rebound piston with vehicle-specific valving for superior ride quality on- and off-road.
• Durable construction: 7/8” induction-hardened, chrome-plated shock shaft and CNC-machined 6061 aluminum components.
• Corrosion resistant finish: Cerakoted steel cylinders for long-lasting, consistent appearance.
• Serviceable and tunable: 100% rebuildable and 100% revalveable for long-term maintenance and performance adjustments.

Notes

• Will not fit Cab & Chassis models
• Included rear shocks are compatible with 0-2" of rear lift over stock
• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
