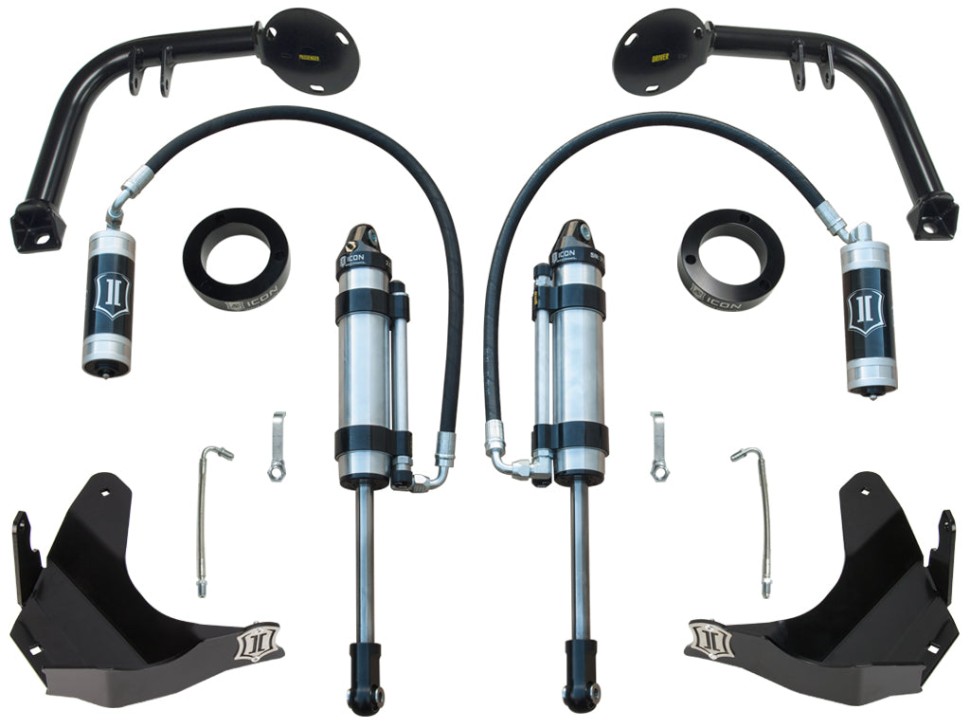

Icon Vehicle Dynamics K53127 Secondary Shock System Lift 0-2.75" Toyota Tacoma 16-23 Pair

ICON Vehicle Dynamics S2 Secondary Shock System

The ICON Vehicle Dynamics S2 Secondary Shock System upgrades the off-road capability of the 2016–2023 Toyota Tacoma by allowing the installation of a secondary 2.5" aluminum shock to an existing ICON coilover setup. Adding a secondary shock effectively doubles the suspension's damping capacity for rough terrain and larger obstacles, improving both off-road performance and on-road stability. The secondary shocks offer vehicle-specific valving, multiple damping zones, and 28 compression and rebound settings for precise ride tuning. The modular design allows incremental upgrades and provides a cost-effective alternative to complex long-travel kits.

The system utilizes the factory lower control arms and maintains OE track width. A combination of billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates with integrated shock mounts delivers straightforward installation without major alterations to the vehicle frame or other factory suspension components. Components are fully removable, and the skid plates can be installed standalone to protect the factory lower control arms from trail damage.

• Improved damping: Drastically increases vehicle damping ability off-road
• Enhanced stability: Improves on-road stability and control
• Factory integration: Utilizes factory lower control arms and maintains OE track width
• Vehicle-specific tuning: Secondary shocks feature vehicle-specific valving and increased oil volume
• Adjustable damping: Two-tube bypass design with compression and rebound adjustment (28 settings)
• Durable construction: 2.5" aluminum secondary shocks with one-piece impact-extruded aluminum cylinders for corrosion resistance and consistent finish
• Serviceable: Shocks are fully rebuildable and revalveable
• Installation: Mostly bolt-on design for a straightforward install; modular components allow staged upgrades

Notes

• OEM wheels and tires fitment: Yes
• Recommended aftermarket wheels: 17x8.5" with 4.75" backspace / 0mm offset; 18x9" with 5.00" backspace / 0mm offset; 20x9" with 5.00" backspace / 0mm offset
• Recommended tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)
• These are stand-alone kits and are not to be used in conjunction with other aftermarket kits
• Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle
• Welding required — lower control arm
• Does not work with some big brake kits
• Maximum steering angle is reduced for secondary shock compatibility
• Compatible with 0–2.75" of front lift on most Tacoma submodels; compatible with 0–1.25" of front lift on TRD Pro
• Requires OE front lower control arms. Not compatible with aftermarket front lower control arm kits
