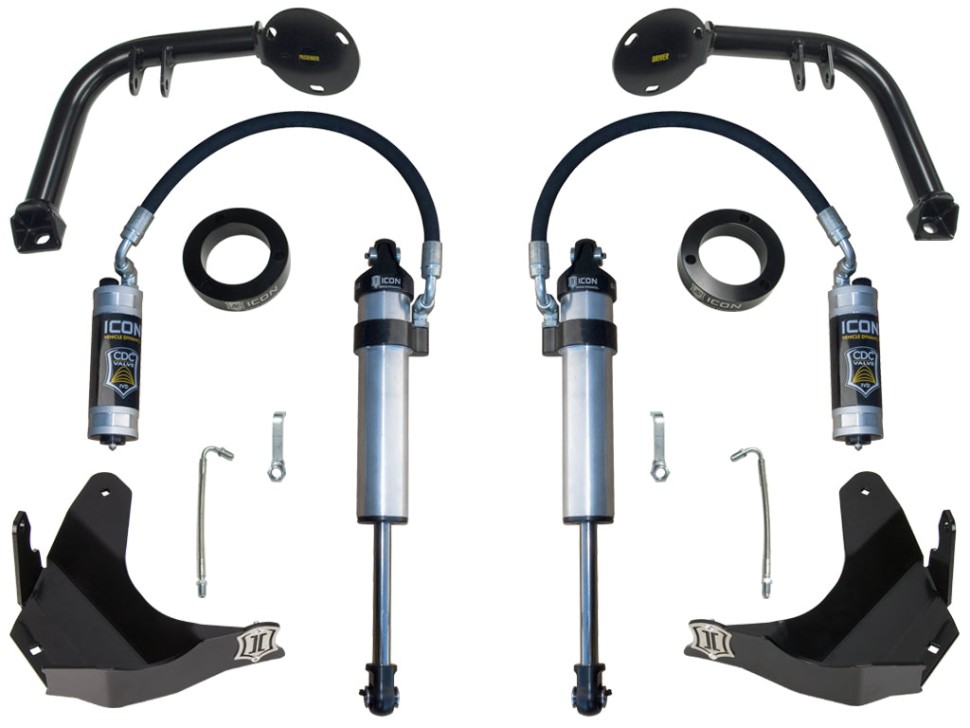

Icon Vehicle Dynamics K53126 Secondary Shock System Lift 0-2.75" Toyota Tacoma 16-23 Pair

ICON Vehicle Dynamics S2 Secondary Shock System

The ICON Vehicle Dynamics S2 Secondary Shock System upgrades the 2016–2023 Toyota Tacoma by adding a secondary 2.5" aluminum shock to an existing ICON coilover setup. The secondary shock doubles damping capacity for improved control over rough terrain and larger obstacles. The kit includes externally adjustable CDC valves that provide 10 levels of compression damping adjustment. Designed as an affordable, modular upgrade, the S2 System can be installed in stages or all at once and is intended to be straightforward to install.

The system uses the factory lower control arms and maintains OE track width. A combination of billet aluminum shock tower adapters, fabricated shock hoops, and steel skid plates with integrated shock mounts creates a mostly bolt-on installation. The design avoids major alteration of the vehicle frame or factory suspension components and is fully removable. The skid plates can also be installed alone to protect the factory lower control arms from trail damage.

Key Features

• Improved damping: Drastically increases off-road damping ability.
• Better stability: Increases vehicle stability on-road.
• Uses factory components: Utilizes factory lower control arms and maintains OE track width.
• Vehicle-specific tuning: Secondary shocks are tuned for increased damping and oil volume.
• Adjustable compression: CDC valve technology offers quick, external compression adjustment with 10 settings.
• Serviceable shocks: Shocks are fully rebuildable and revalveable.
• Durable construction: 2.5 Aluminum Series shocks feature one-piece impact-extruded aluminum cylinders for corrosion resistance and consistent finish.
• Modular, mostly bolt-on design: Straightforward installation and removable components.

Notes

• OEM wheels & tires: fitment retained.
• Recommended aftermarket wheels: 17x8.5" with 4.75" backspace / 0mm offset; 18x9" with 5.00" backspace / 0mm offset; 20x9" with 5.00" backspace / 0mm offset.
• Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required).
• These are stand-alone kits and are not to be used in conjunction with other aftermarket kits.
• Shocks are fully serviceable; coilover heights indicated are for a stock-equipped vehicle.
• Welding required: lower control arm.
• Does not work with TRD Big Brake Kit.
• Maximum steering angle is reduced for secondary shock compatibility.
• Compatible with 0–2.75" of front lift on most Tacoma submodels; compatible with 0–1.25" of front lift on TRD Pro.
• Requires OE front lower control arms; not compatible with other aftermarket front lower control arm kits.
