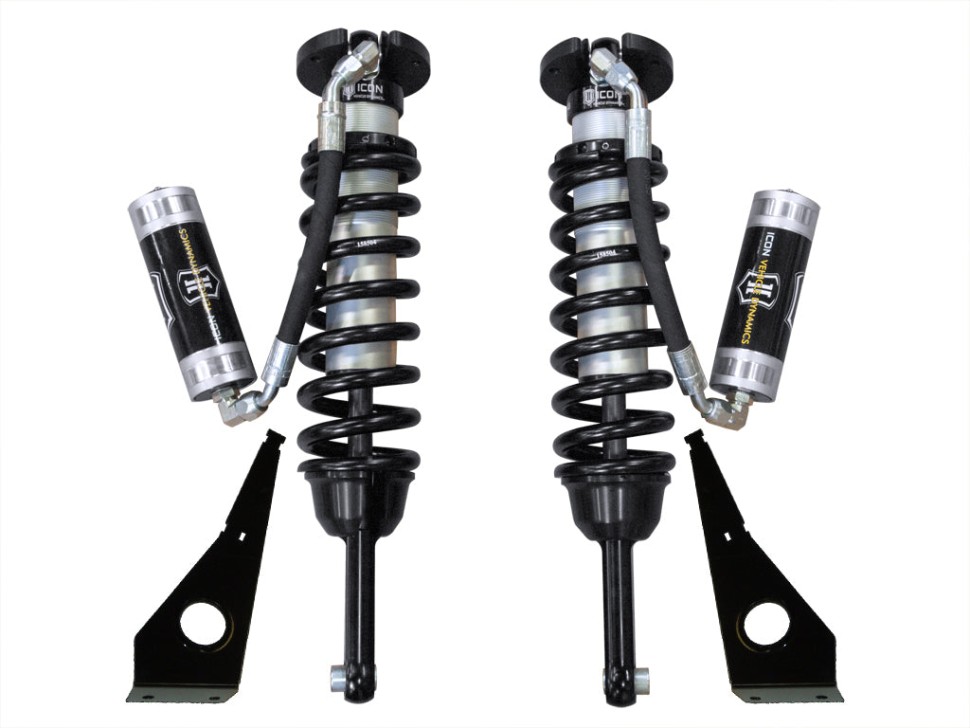

Icon Vehicle Dynamics 58740 2.5 VS Remote Reservoir Front Coilover Reservoir Shock Lift 0-3" Lexus GX470/Toyota 4Runner/FJ Cruiser 03-09 Pair

Name: Icon Vehicle Dynamics 58740 2.5 VS Remote Reservoir Front Coilover Reservoir Shock Lift 0-3" Lexus GX470/Toyota 4Runner/FJ Cruiser 03-09 Pair
Brand: Icon Vehicle Dynamics
SKU: 58740
Price: 1871.95 USD
Availability: OutOfStock

+18
points

Brand	Icon Vehicle Dynamics
Note	Larger Tires May Fit but Fender Trimming and Modifications will be Required
Series	2.5 VS Remote Reservoir
Installation side	Front
Lift Height, inch	0-3"
Type Adjusters	Non Adjustable
Reservoir	Yes
Quantity	Pair

show all features

ICON Vehicle Dynamics

High-performance coilover shocks engineered for race-level heat dissipation, durability, and bolt-on installation. Increases front suspension travel and capability for FJ Cruiser and 4Runner applications. Includes all necessary hardware plus a sway bar relocation bracket kit to clear the larger shock and reservoirs.

Adjustable ride height: 0" - 3"
Race shock piston: flutter stack compression valving
Includes: sway bar relocation brackets
Includes: reservoir mounting brackets
Body finish: cad-plated threaded body (Extreme Weather Plating option available)
Upper mount: billet aluminum
Bearing: 5/8" PTFE-lined spherical bearing
Serviceable: completely re-buildable
Hose length: optimized for increased fluid transfer
Reservoir orientation: mounting bracket orients reservoir for optimum tire clearance
Cooling: external reservoir ensures maximum cooling
Spring: chrome-silicon
Charge: 250 PSI nitrogen-charged internal reservoir

Technical Notes

Factory wheels and tires fitment: Yes
Recommended aftermarket wheels: 8.5" wide wheel with 4.75" backspace
Recommended aftermarket tires: 33" x 11.50" (larger tires may fit but fender trimming and modifications will be required)

Icon Vehicle Dynamics 58740 2.5 VS Remote Reservoir Front Coilover Reservoir Shock Lift 0-3" Lexus GX470/Toyota 4Runner/FJ Cruiser 03-09 Pair - Features

Brand	Icon Vehicle Dynamics
Note	Larger Tires May Fit but Fender Trimming and Modifications will be Required
Series	2.5 VS Remote Reservoir
Installation side	Front
Lift Height, inch	0-3"
Type Adjusters	Non Adjustable
Reservoir	Yes
Quantity	Pair
Box Height	8 in
Box Width	12 in
Box Length	27 in
Box Weight	52 lbs
UPCCode	840103404325
Fitment Show all	2007\|\|Toyota\|\|FJ Cruiser, 2008\|\|Toyota\|\|FJ Cruiser, 2009\|\|Toyota\|\|FJ Cruiser, 2003\|\|Toyota\|\|4Runner, 2004\|\|Toyota\|\|4Runner, 2005\|\|Toyota\|\|4Runner, 2006\|\|Toyota\|\|4Runner, 2007\|\|Toyota\|\|4Runner, 2008\|\|Toyota\|\|4Runner, 2009\|\|Toyota\|\|4Runner, 2004\|\|Lexus\|\|GX470, 2005\|\|Lexus\|\|GX470, 2006\|\|Lexus\|\|GX470, 2007\|\|Lexus\|\|GX470, 2008\|\|Lexus\|\|GX470, 2003\|\|Lexus\|\|GX470, 2009\|\|Lexus\|\|GX470
