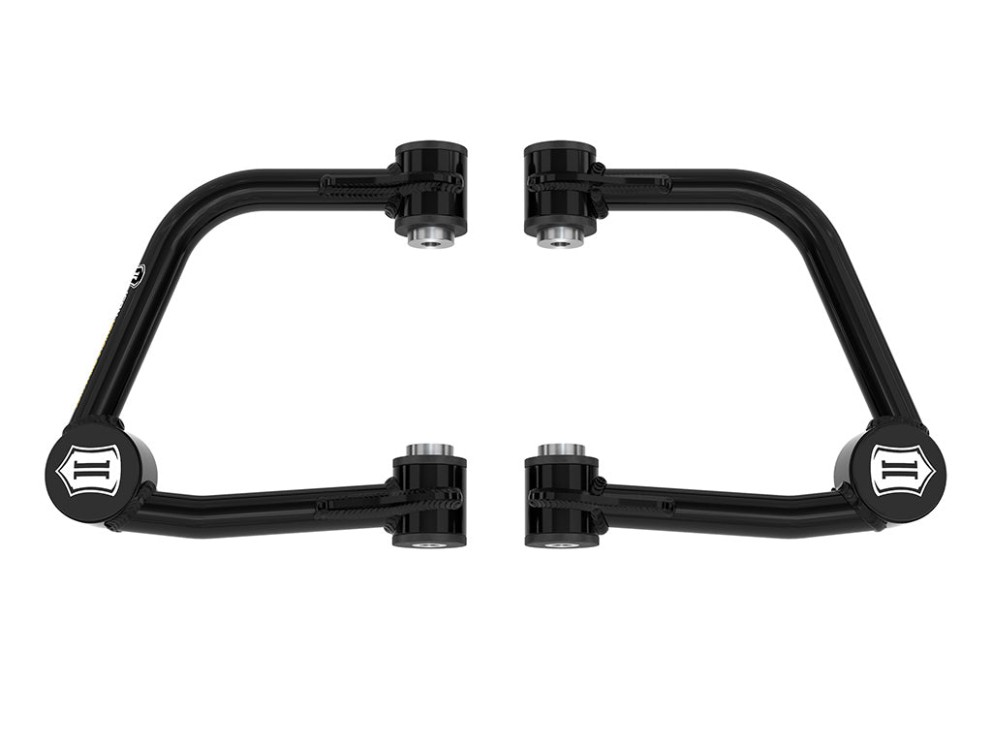

Icon Vehicle Dynamics 48400DJ Upper Control Arm Kit Lift 1-3" Ford Bronco 21-26

Name: Icon Vehicle Dynamics 48400DJ Upper Control Arm Kit Lift 1-3" Ford Bronco 21-26
Brand: Icon Vehicle Dynamics
SKU: 48400DJ
Price: 879.95 USD
Availability: InStock

+8
points

Brand	Icon Vehicle Dynamics
Note	Will not fit Bronco Raptor
Installation side	Front Upper
Lift Height, inch	1-3"
Box Height	8.8 in
Box Width	13.1 in
Box Length	17.1 in
Box Weight	22.1 lbs

show all features

ICON Tubular Upper Control Arms

These tubular steel upper control arms increase front suspension travel and improve geometry for lifted vehicles. Designed for 2021–2026 Ford Bronco, they provide additional caster for better alignment and handling when running performance shocks or coilovers.

Construction uses heavy-wall 1026 DOM tubing that is CNC formed, fixture welded and finished with a multi-stage black powder coat for durability. Frame pivots use serviceable heavy-duty dual-stage bushings that are greaseable and rebuildable, pressed into precision-machined housings for a responsive driving experience.

The all-new Delta Joint PRO delivers improved durability and performance over standard Delta Joints. It offers up to 90° of free articulation to maximize suspension travel without binding, uses a larger ball with 56% more bearing surface, and features a chromoly ball and shaft with a bearing surface hardened to Rockwell C 55. Replaceable races are graphite-impregnated, sintered metal machined to tight tolerances for a reliable metal-to-metal bearing interface. The lubrication system includes internal channels for efficient grease distribution and a grease fitting protected by an anodized billet aluminum dust cap.

Overall design emphasizes serviceability and strength: the Delta Joint PRO is fully rebuildable, pivot bushings are serviceable, and components are machined for precise fit and longevity.

Key Features

Built-in added caster for improved handling on lifted vehicles
Delta Joint PRO for maximum articulation without binding
100% serviceable and rebuildable Delta Joint PRO and replaceable races
Serviceable dual-stage pivot bushings with greaseable design
CNC machined housings for bushings and Delta Joint PRO
1026 DOM tube construction with black powder coat finish
Billet dust caps included to protect grease fittings

Icon Vehicle Dynamics 48400DJ Upper Control Arm Kit Lift 1-3" Ford Bronco 21-26 - Features

Brand	Icon Vehicle Dynamics
Note	Will not fit Bronco Raptor
Installation side	Front Upper
Lift Height, inch	1-3"
Box Height	8.8 in
Box Width	13.1 in
Box Length	17.1 in
Box Weight	22.1 lbs
UPCCode	840103412344
Submodel Show all	Base, Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks, Wildtrak
Fitment Show all	2021\|\|Ford\|\|Bronco, 2022\|\|Ford\|\|Bronco, 2023\|\|Ford\|\|Bronco, 2024\|\|Ford\|\|Bronco, 2025\|\|Ford\|\|Bronco, 2026\|\|Ford\|\|Bronco
