Комплект установки интеллектуального управления Ford Bronco 21-26 Icon Vehicle Dynamics 43501

Name: Комплект установки интеллектуального управления Ford Bronco 21-26 Icon Vehicle Dynamics 43501
Brand: Icon Vehicle Dynamics
SKU: 43501
Price: 613.62 USD
Availability: OutOfStock

+6
points

Brand	Icon Vehicle Dynamics
Note	Requires ios operated device to run icon intelligent control app
Note	Also requires part number 48700e and number 48710e or 48711e
Box Height	5 in
Box Width	9 in
Box Length	19 in
Box Weight	4 lbs
UPCCode	840103414140

show all features

ICON Intelligent Control (IIC)

The ICON Intelligent Control (IIC) is an onboard control computer that monitors, analyzes, and processes vehicle dynamics in real time. Using inputs from an onboard G-force sensor and gyroscope, the IIC runs custom algorithms and user-defined settings to predict terrain and wheel position. It collects data at over 1,000 times per second, processes that data, and sends adjustments to Compression Damping Electronic Valve (CDEV) shock absorbers in under 40 milliseconds. The IIC also serves as a data interface to a mobile app for monitoring and adjusting shock settings and is installed with application-specific mounting brackets, hardware, and wire harnesses for a clean fit.

The mobile app provides a user-friendly interface via Bluetooth to monitor, record, and adjust system performance. Users can change shock baseline firmness, tune vertical “G‑Boost” and lateral “Corner Boost” sensitivity, choose from preconfigured drive modes (Normal, Desert, Haul), or create unlimited custom presets. Trip data such as time, speed, distance, and G‑forces can be recorded for review.

Active damping control: Selectable active shock damping with manual baseline adjustment without exiting the vehicle.
Real-time sensors: Onboard G-force and motion sensors continuously monitor chassis movement.
High-frequency processing: Performs calculations over 1,000 times per second using custom algorithms and user settings.
Fast response: Sends damping commands to CDEV shocks that react in under 40 milliseconds.
Mobile interface: Bluetooth-connected app for monitoring, tuning, and preset management.
Data logging: Records trip metrics including time, speed, distance, and G-forces.

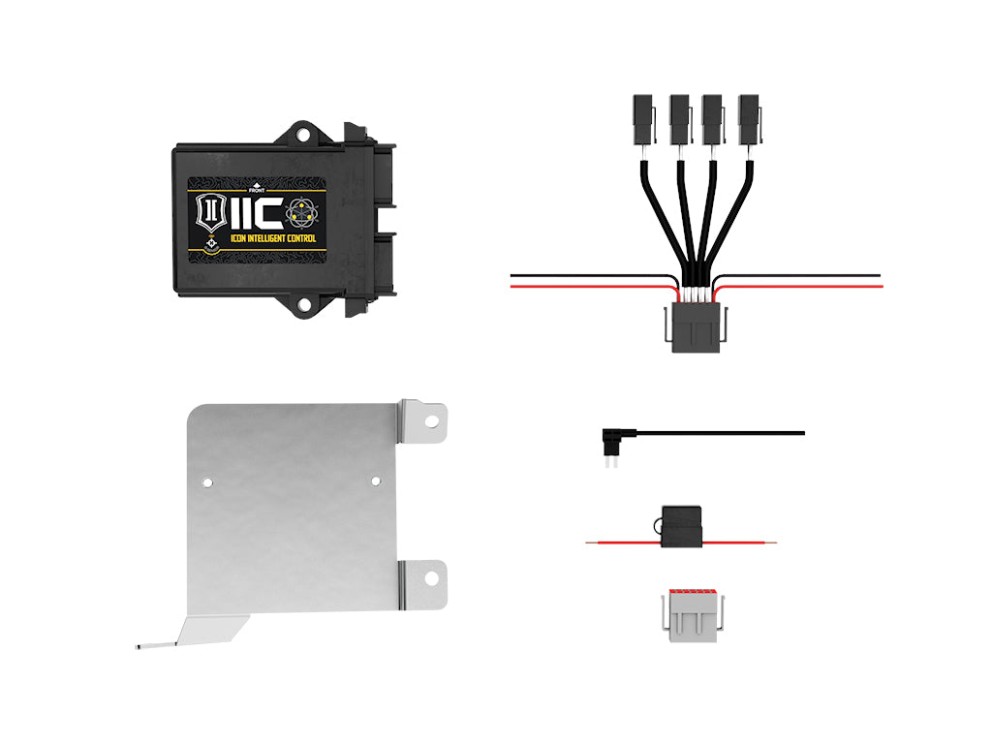

Vehicle-specific installation: Includes application-specific mounting brackets, hardware, and wire harnesses for a clean installation.

Комплект установки интеллектуального управления Ford Bronco 21-26 Icon Vehicle Dynamics 43501 - Features

Brand	Icon Vehicle Dynamics
Note	Requires ios operated device to run icon intelligent control app
Note	Also requires part number 48700e and number 48710e or 48711e
Box Height	5 in
Box Width	9 in
Box Length	19 in
Box Weight	4 lbs
UPCCode	840103414140
Submodel Show all	Base, Badlands, Big Bend, Black Diamond, Everglades, Heritage Edition, Heritage Limited Edition, Outer Banks, Wildtrak
Fitment Show all	2021\|\|Ford\|\|Bronco, 2022\|\|Ford\|\|Bronco, 2023\|\|Ford\|\|Bronco, 2024\|\|Ford\|\|Bronco, 2025\|\|Ford\|\|Bronco, 2026\|\|Ford\|\|Bronco
