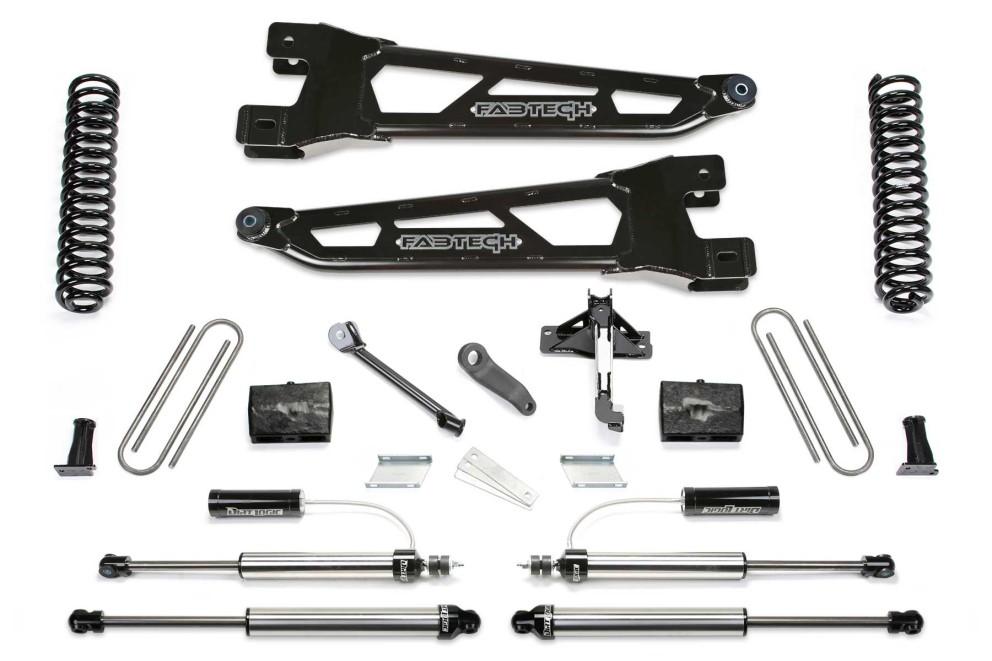

Fabtech K2293DL Suspension Lift Kit Lift 6" Ford F-250/F-350 17-22

Fabtech 6" Radius Arm Lift Kit — 2017–22 Ford F250/F350 4WD

This 6" radius arm lift kit is engineered for Ford Super Duty trucks to provide a heavy‑duty upgrade to the factory suspension. Built to handle demanding on‑ and off‑road use, the system improves strength and durability while maintaining a compliant, streetable ride.

• Tubular Radius Arms — Redesigned tubular construction with a side plate and laser‑cut logo for a modern, aggressive look. Arms are offset to retain full turning radius with wide tires and include adjustable alignment cams for additional caster adjustment.
• Front Coil Springs — Replacement coil springs are hot‑wound and preset during manufacturing to prevent ride height settling. Designed for a compliant ride on and off road and allow increased wheel travel when used with matched shock absorbers.
• Track Bar Relocation Bracket — Heavy gauge steel bracket repositions the track bar to center the axle under the vehicle at the increased ride height and resists deflection through full travel.
• Dropped Pitman Arm — Forged steel design provides high strength and is engineered to work with the factory drag link and track bar bracket for proper steering geometry.
• Front Bump Stop Brackets — 1/4" thick steel brackets extend the factory bump stops to prevent over‑cycling of the suspension and withstand full impact compression.
• Sway Bar Drop Brackets — Steel drop brackets re‑position the front sway bar for the increased ride height, allowing sway bar links to cycle without binding.
• Brake Line Brackets — Repositions factory brake lines on the frame to accommodate the new travel range without opening the brake system.
• Steering Stabilizer Bracket — Retains the stock heavy‑duty steering stabilizer using a reinforced bracket and support brace to help reduce tire shimmy.
• Rear Lift Blocks & U‑Bolts — Cast iron lift blocks with integrated bump stops provide rear lift without altering rear ride quality or load capacity; heavy‑duty U‑bolts secure the axle to the vehicle.
• Dirt Logic 2.25" Shocks — Stainless steel reservoir shocks in front and non‑reservoir shocks in the rear. Nitrotechnology piston rod and corrosion‑resistant construction deliver excellent damping and durability for mixed on/off‑road use. Shocks are ride‑tuned to the coil springs and oversized tires for improved ride quality.

Key benefits: Improved strength and longevity of the suspension system, greater wheel travel and off‑road capability, refined on‑road comfort, and a modern appearance that complements aggressive truck setups.

*Compatibility/installation notes: Not compatible with dually models. Not compatible with gas‑engine variants. Some 2017 models may require an additional dual steering stabilizer when running oversized tires; confirm steering setup during installation.
