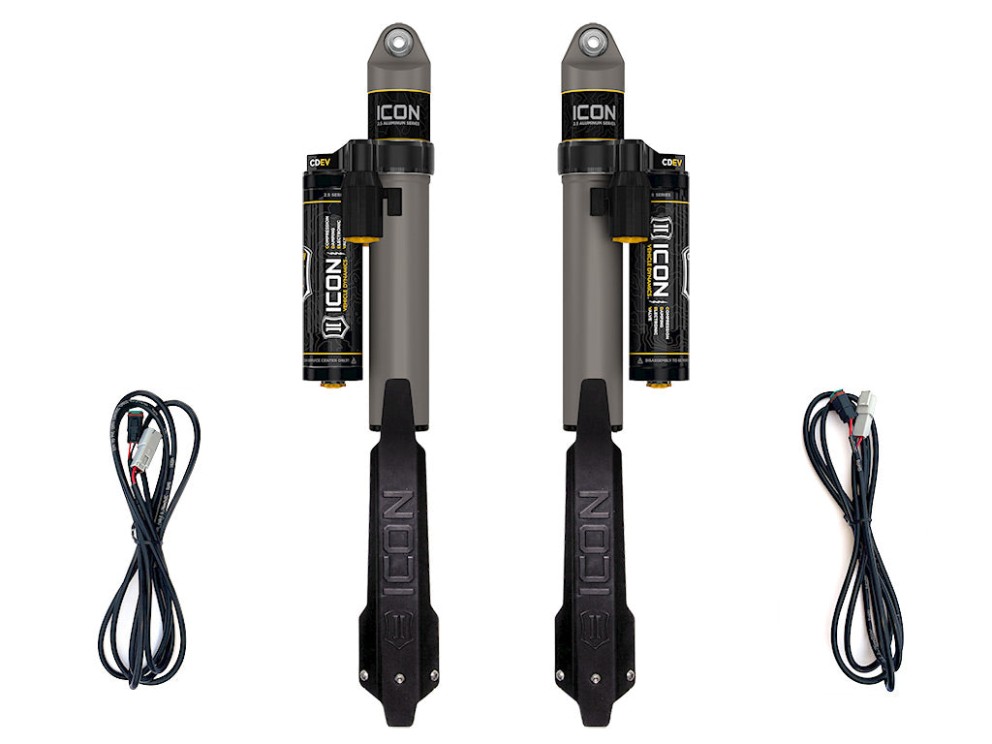

Icon Vehicle Dynamics 27727EP 2.5 VS PB Rear Reservoir Shock Lift 1.5" Jeep Gladiator JT 20-26 Pair

ICON V.S. 2.5 Aluminum Series Shocks with CDEV

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with Compression Damping Electronic Valve (CDEV) are engineered to deliver outstanding off-road performance and a smooth street ride. Each shock is configured for specific vehicle applications in both length and damping tune. A 6061 billet aluminum manifold located below the top cap creates an internal Bump Zone that adds approximately 20% additional damping to help prevent harsh bottom-outs and control suspension compression at high velocity. These shocks are 100% rebuildable and 100% revalveable.

CDEV is an electronically controlled valve that meters oil flow to regulate compression damping. The infinitely variable valve can react in less than 40 ms and make precise adjustments for changing terrain. Hydraulic circuits are custom tailored per application to maximize resolution and dynamic range. Integrated with ICON Intelligent Control and the ICON mobile app, the system uses onboard G-force and gyroscope data plus user-defined settings to predict terrain and adjust shock settings in real time.

• In-vehicle and active adjustment: CDEV allows on-the-fly compression damping changes and active adjustment via ICON Intelligent Control (IIC).
• Internal Bump Zone: Increases damping by ~20% to provide greater control as the shock approaches full compression.
• Durable construction: One-piece, hard-anodized, impact-extruded aluminum cylinders for corrosion resistance and a consistent finish.
• Improved heat dissipation: Remote reservoir design reduces shock fade during prolonged use.
• Consistent damping: Premium grade 5WT shock oil for stable performance across a wide temperature range.
• Monotube design: Nitrogen-charged monotube with piggyback reservoir.
• Piston design: One-piece digressive piston with vehicle-specific valving for exceptional on- and off-road ride quality.
• High-strength shaft: 7/8" induction hardened, chrome-plated shock shaft.
• Quality bearings and hardware: PTFE-lined spherical bearings and application-specific mounting hardware.
• Precision components: 6061 aircraft-grade aluminum CNC-machined parts.
• Protection included: Protective shin guards standard with every shock.
• Serviceable: 100% rebuildable and 100% revalveable.

Notes

• Also requires installation of the IIC kit (Part # 23502) and CDEV front shocks (Part # 27821EP).
• Rear shocks require a sway bar relocation kit (Part # 22062) or sway bar link kit (Part # 22070) when used with JT coil spacer (Part # 22065) or JT coil spring (Part # 22066).
• Only fits models equipped with the 3.6L "Pentastar" V6 gasoline engine.
• An iOS-operated device is required to run the ICON Intelligent Control app.
