Icon Vehicle Dynamics 218560DJ Upper Control Arm Kit Lift 0-3" Dodge Ram 1500 19-26

Name: Icon Vehicle Dynamics 218560DJ Upper Control Arm Kit Lift 0-3" Dodge Ram 1500 19-26
Brand: Icon Vehicle Dynamics
SKU: 218560DJ
Price: 1549.95 USD
Availability: InStock

+15
points

Brand	Icon Vehicle Dynamics
Note	Not for vehicles with rear factory air ride
Note	Will not fit 2019-UP Ram 1500 Classic models
Note	Designed for use with ICON coilovers and may not be compatible with other brands aftermarket coilovers
Note	May require sanding of coil bucket for clearance. Cycling suspension during install to verify clearance is recommended
Installation side	Front Upper
Lift Height, inch	0-3"
Box Height	6.8 in

show all features

ICON

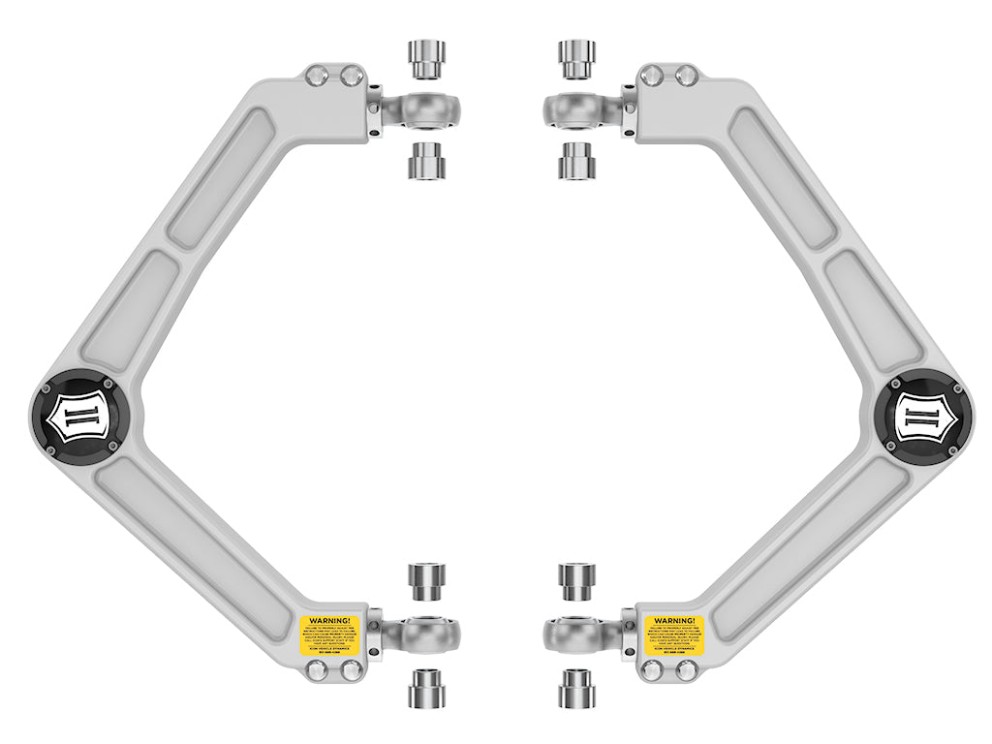

This billet aluminum upper control arm kit is designed for 2019–2023 Ram 1500 trucks to correct front-end geometry, increase camber and caster adjustment, and improve suspension component clearance. CNC-machined from 6061 billet aluminum with a hybrid H-beam cross-section, the arms are lightweight and resist bending better than tubular designs. The kit replaces the OE ball joint with the ICON Delta Joint, provides full bump and droop travel without binding, and includes all components and hardware required for a complete installation.

The ICON Delta Joint is a heavy-duty, high-angle ball joint that combines the durability of a ball joint with the articulation of a uniball. A zinc-plated housing and a robust grease seal protect internal components from contaminants, while a greaseable, metal-on-metal design ensures long life and quiet operation.

CNC-machined 6061 billet aluminum with a satin anodized finish for strength and corrosion resistance
Corrects suspension geometry to improve handling on lifted or stock-height trucks
On-vehicle camber and caster adjustment via ICON’s double adjuster sleeve for quick, precise tuning
ICON Delta Joint allows maximum articulation without binding
Quality PTFE-lined 3/4" rod ends at chassis pivots for strength and smooth operation
Built-in O-ring sealed Delta Joint dust cap for added protection against contaminants

Icon Vehicle Dynamics 218560DJ Upper Control Arm Kit Lift 0-3" Dodge Ram 1500 19-26 - Features

Brand	Icon Vehicle Dynamics
Note	Not for vehicles with rear factory air ride
Note	Will not fit 2019-UP Ram 1500 Classic models
Note	Designed for use with ICON coilovers and may not be compatible with other brands aftermarket coilovers
Note	May require sanding of coil bucket for clearance. Cycling suspension during install to verify clearance is recommended
Installation side	Front Upper
Lift Height, inch	0-3"
Box Height	6.8 in
Box Width	16 in
Box Length	16.3 in
Box Weight	17.9 lbs
UPCCode	840103411774
Submodel Show all	Limited, Big Horn, HFE, Laramie, Laramie Longhorn, Tradesman, Lone Star, Special Service, Rebel
Fitment Show all	2021\|\|Dodge\|\|Ram 1500, 2020\|\|Dodge\|\|Ram 1500, 2019\|\|Dodge\|\|Ram 1500, 2021\|\|Ram\|\|1500, 2020\|\|Ram\|\|1500, 2022\|\|Dodge\|\|Ram 1500, 2022\|\|Ram\|\|1500, 2023\|\|Ram\|\|1500, 2019\|\|Ram\|\|1500, 2023\|\|Dodge\|\|Ram 1500, 2024\|\|Dodge\|\|Ram 1500, 2024\|\|Ram\|\|1500, 2025\|\|Dodge\|\|Ram 1500, 2025\|\|Ram\|\|1500, 2026\|\|Dodge\|\|Ram 1500, 2026\|\|Ram\|\|1500
