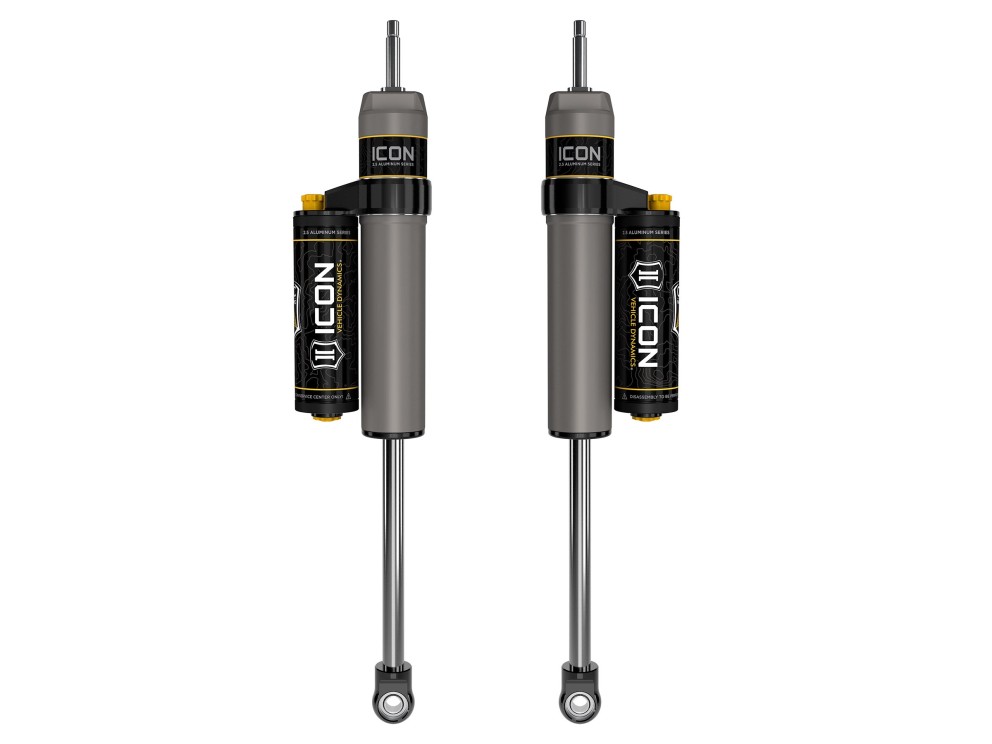

Icon Vehicle Dynamics 217716CP 2.5 VS PB CDCV Rear Reservoir Adjustable Shock Lift 0-3" Dodge Ram 1500 19-26 Pair

ICON 2.5 Aluminum Series Shocks

Designed for outstanding off-road performance and a smooth on‑road ride, these shocks are configured specifically for each vehicle application in both length and damping tune. Constructed with one-piece impact extruded aluminum cylinders for reduced weight, improved corrosion resistance, and a consistent finish. Fully serviceable with rebuildable and revalveable design. For piggyback and select remote reservoir applications, a 6061 billet aluminum manifold near the top cap creates an internal Bump Zone that adds damping force to help prevent harsh bottom outs. The externally adjustable CDC Valve provides multiple compression damping settings for on-the-fly tuning.

• CDC Valve: 10 levels of high-resolution compression adjustability with a turn of a knob.
• One-piece impact extruded aluminum cylinders: excellent corrosion resistance and consistent finish.
• Serviceable design: 100% rebuildable and 100% revalveable.
• Internal Bump Zone: increases damping by approximately 20% to control suspension near full compression and reduce bottoming harshness.
• Piggyback reservoir: improves heat dissipation to reduce shock fade during prolonged use.
• Shock oil: premium grade 5WT for consistent damping across a wide temperature range.
• Design: nitrogen-charged monotube with piggyback reservoir.
• Protection: double-sealed Schrader caps reduce risk of damage.
• Piston: one-piece digressive piston with vehicle-specific valving for improved performance and ride quality.
• Shaft: 7/8” diameter induction hardened, chrome-plated shock shaft.
• Mounting: PTFE-lined spherical bearings and application-specific mounting hardware.
• Construction: 6061 aircraft-grade aluminum CNC-machined components.

Notes

• Not for vehicles with rear factory air ride
• Compatible with 0-3" of rear lift on most Ram 1500 submodels
• Compatible with 0-2.5" of rear lift on 2019-2023 Ram 1500 Rebel
• Will not fit 2021-2023 Ram 1500 TRX
• Will not fit 2019-2023 Ram 1500 Classic models
