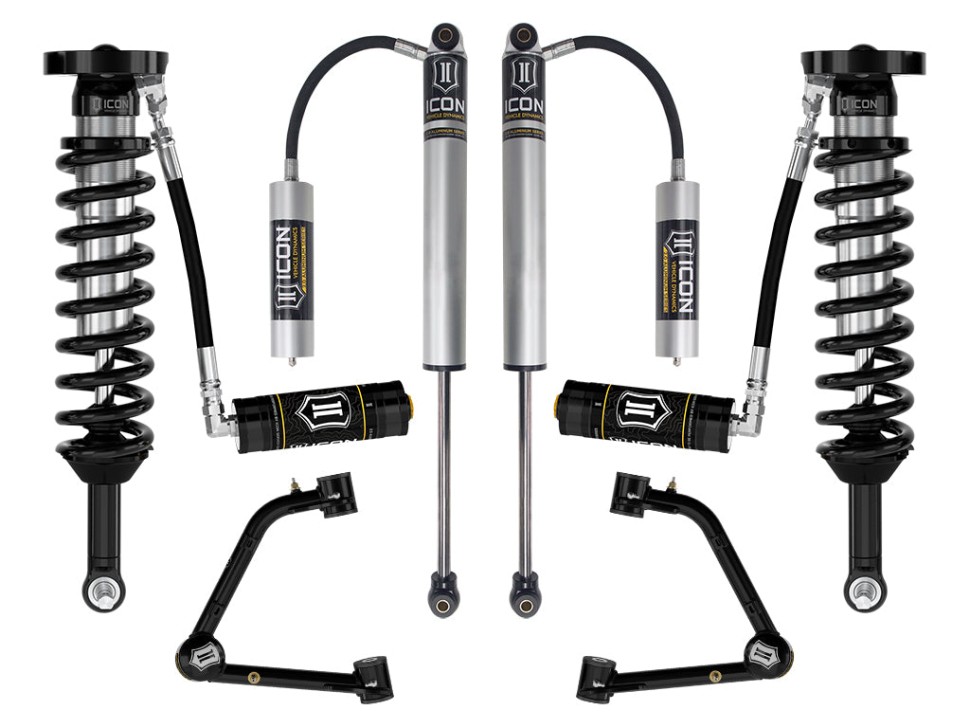

Icon Vehicle Dynamics K73083T Stage 3 Suspension Lift Kit Lift 1.75-2.5" Chevrolet Colorado/GMC Canyon AT4/Trail Boss 23-26

ICON Vehicle Dynamics 2023-2026 GMC Canyon AT4, Denali & Elevation / Chevrolet Colorado Trail Boss Stage 3 Suspension System

The ICON Vehicle Dynamics Stage 3 suspension system is engineered to improve wheel travel, damping, and overall vehicle control for on- and off-road driving. This vehicle-specific system features extended-travel 2.5" coilover shocks with remote reservoirs, ICON-engineered coil springs, and tubular Delta Joint PRO upper control arms to maintain alignment and increase caster for improved handling. Front coilovers are height adjustable to accommodate larger wheel and tire combinations while increasing front wheel travel for enhanced ride quality and performance.

• 20% increase in front wheel travel over stock (total 10.25" from full compression to full extension)
• Vehicle-specific tuned front and rear shocks for balanced damping and improved control
• Adjustable front coilovers with 1.75–2.5" of lift over stock
• 2.5 Series extended-travel front coilovers with remote reservoirs for improved cooling and performance
• Tubular upper control arms with Delta Joint PRO ball joints for increased strength, durability, and articulation
• Delta Joint PRO features a rebuildable serviceable design, larger ball with more bearing surface, improved lubrication sealing, and up to 90° of articulation
• 6061 aircraft-grade aluminum CNC-machined components and corrosion-resistant CAD-plated coilover bodies with 7/8" shafts
• High-strength alloy lower bar pin and FK rod end bearings for longevity and minimal deflection
• ICON 2.0 Aluminum Series rear remote reservoir shocks with 5/8" polished shafts and vehicle-specific valving
• 100% bolt-on installation — no drilling, cutting, or welding required
• Shocks are fully serviceable with rebuildable components
• Recommended aftermarket wheel example: 17x8.5" with 5.46" backspace / 18mm offset
• Recommended tire size: up to 35 x 12.50 (larger tires may require fender trimming or modifications)

Notes:

• Lift heights indicated are for a stock-equipped vehicle.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install.
• Only fits Ultra-Wide Stance vehicles.
• Will not fit Chevrolet Colorado WT, LT, Z71, or ZR2 and will not fit GMC Canyon AT4X.
• Rear shocks are compatible with 0–1" of rear lift over stock.
• Only compatible with OE steering knuckles; do not install in combination with any aftermarket steering knuckles.
