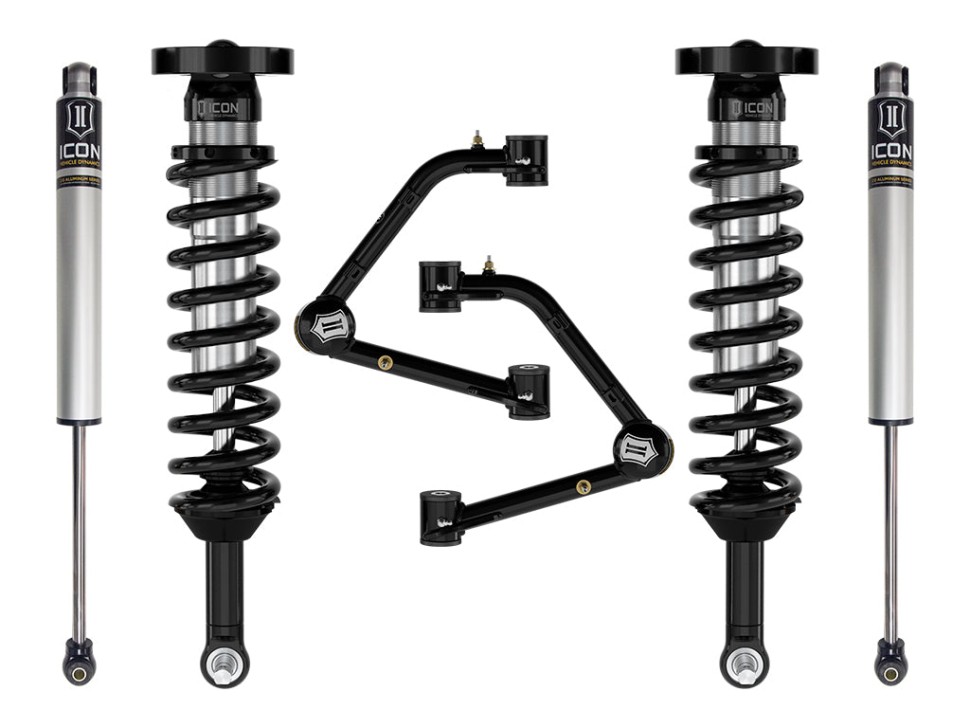

Icon Vehicle Dynamics K73082T Stage 2 Suspension Lift Kit Lift 1.75-2.5" Chevrolet Colorado/GMC Canyon AT4/Trail Boss 23-26

ICON Vehicle Dynamics Stage 2 Suspension System — 2023-2026 GMC Canyon AT4, Denali, Elevation / Chevrolet Colorado Trail Boss

The ICON Vehicle Dynamics Stage 2 suspension system is engineered to improve wheel travel, damping capability, and overall vehicle control for both on- and off-road driving. This vehicle-specific system is tuned to the wider track of the GMC Canyon and Chevrolet Colorado Trail Boss platforms and delivers enhanced ride quality and performance under load.

Front 2.5" coilover shocks feature internal reservoirs for improved cooling and vehicle-specific valving. The coilovers are height adjustable to provide 1.75–2.5" of front lift and are longer than stock to increase front wheel travel to a total of 9" from full compression to full extension. Tubular upper control arms with ICON's patented Delta Joint PRO improve strength, durability, and alignment range at lifted heights.

The Delta Joint PRO combines the longevity of factory-style ball joints with the strength and articulation of performance joints. It features a rebuildable design, a larger ball for increased bearing surface, improved lubrication sealing, and up to 90° of articulation. Components include a chromoly ball and shaft with a hardened bearing surface and replaceable graphite-impregnated sintered metal races for a durable, metal-to-metal bearing interface.

• Increased wheel travel and improved ride quality with no change in towing capacity
• Vehicle-specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable 2.5" coilovers: 1.75–2.5" of front lift over stock
• Tubular upper control arms with Delta Joint PRO for added strength, durability, and alignment range
• 6061 aircraft-grade aluminum CNC-machined components
• Corrosion-resistant CAD-plated coilover shock bodies with 7/8" shafts
• High-strength alloy CNC-machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear internal reservoir shocks with 5/8" polished shafts
• 100% bolt-on installation — no drilling, cutting, or welding required

Notes

• Factory wheels and tires fitment: yes.
• Recommended aftermarket wheels: 17 x 8.5" with 5.46" backspace / 18 mm offset.
• Recommended aftermarket tires: up to 35 x 12.50". Larger tires may fit but fender trimming and modifications will be required.
• Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install.
• Only fits "Ultra-Wide Stance" vehicles.
• Will not fit Chevrolet Colorado WT, LT, Z71, or ZR2. Will not fit GMC Canyon AT4X.
• Rear shocks are compatible with 0–1" of rear lift over stock.
• Only compatible with OE steering knuckles; do not install in combination with any aftermarket steering knuckles.
