Icon Vehicle Dynamics K73082 Stage 2 Suspension Lift Kit Lift 1.75-2.5" Chevrolet Colorado/GMC Canyon AT4/Trail Boss 23-26

ICON Vehicle Dynamics 2023-2026 GMC Canyon AT4, Denali & Elevation / Chevrolet Colorado Trail Boss — Stage 2 Suspension System

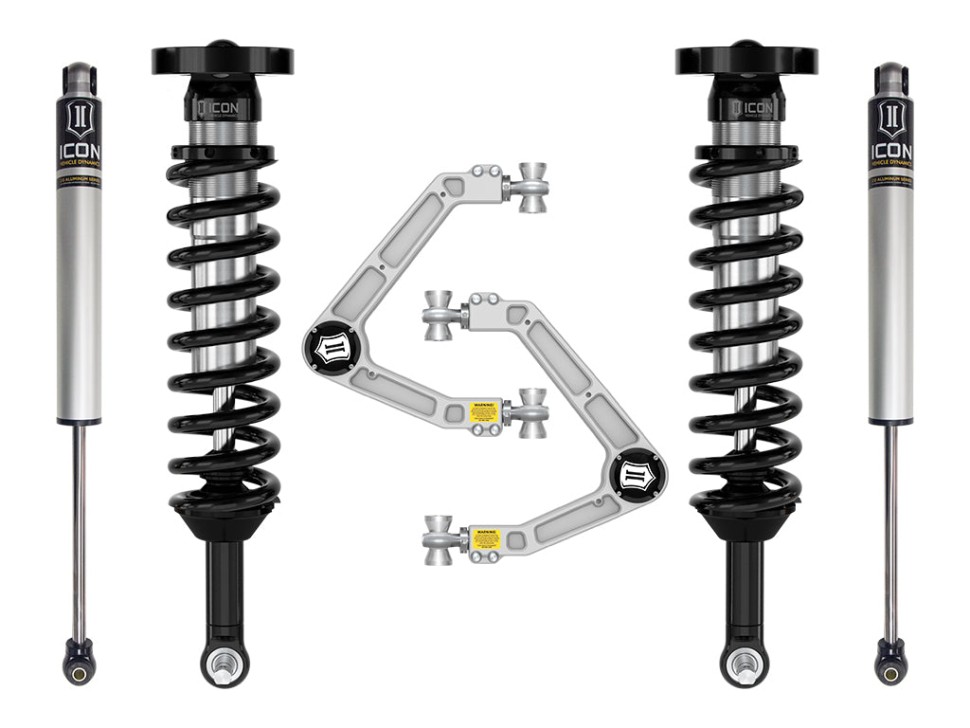

The ICON Vehicle Dynamics Stage 2 suspension system is engineered to improve wheel travel, damping control, and overall ride quality for the 2023–2026 GMC Canyon (AT4, Denali, Elevation) and Chevrolet Colorado Trail Boss. This vehicle-specific kit combines adjustable 2.5" coilover shocks with internal reservoirs, ICON-engineered coil springs, and billet aluminum Delta Joint PRO upper control arms to deliver enhanced on- and off-road performance while maintaining alignment at lifted heights.

• Vehicle-specific tuned 2.5" coilover shocks with internal reservoirs for improved cooling and damping balance front-to-rear.
• Adjustable front lift: 1.75–2.5" of height adjustment to allow larger wheel and tire combinations.
• Increased front wheel travel: longer than stock length for a total of 9" of travel from full compression to full extension.
• Billet aluminum Delta Joint PRO upper control arms retain factory alignment range, provide on-vehicle caster/camber adjustment, and increase strength and durability.
• Delta Joint PRO features: rebuildable/serviceable design, larger ball with increased bearing surface, improved lubrication sealing, full 90° articulation for bind-free movement, chromoly ball and shaft hardened to Rockwell C55, and replaceable graphite-impregnated sintered metal races.
• 2.0 Aluminum Series internal reservoir rear shocks with vehicle-specific valving and 5/8" polished shafts.
• Premium construction: 6061 aircraft-grade aluminum CNC machined components, corrosion-resistant CAD-plated coilover bodies with 7/8" shafts, high-strength alloy CNC machined lower bar pin, and FK rod end bearings for longevity and minimal deflection.
• 100% bolt-on installation: no drilling, cutting, or welding required.

Technical specifications & recommendations

• Factory wheels and tires: compatible
• Recommended aftermarket wheels: 17x8.5" with 5.46" backspace / 18 mm offset
• Recommended aftermarket tires: up to 35" x 12.50" (larger tires may fit but fender trimming and modifications will be required)
• Rear shock compatibility: compatible with 0–1" of rear lift over stock
• Front lift range: raises front approximately 1.75–2.5"

Notes:

• Shocks are fully serviceable; lift heights indicated are for a stock-equipped vehicle.
• Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install.
• Only fits Ultra-Wide Stance vehicles; will not fit Chevrolet Colorado WT, LT, Z71, or ZR2, and will not fit GMC Canyon AT4X.
• Only compatible with OE steering knuckles; do not install with any aftermarket steering knuckles.
