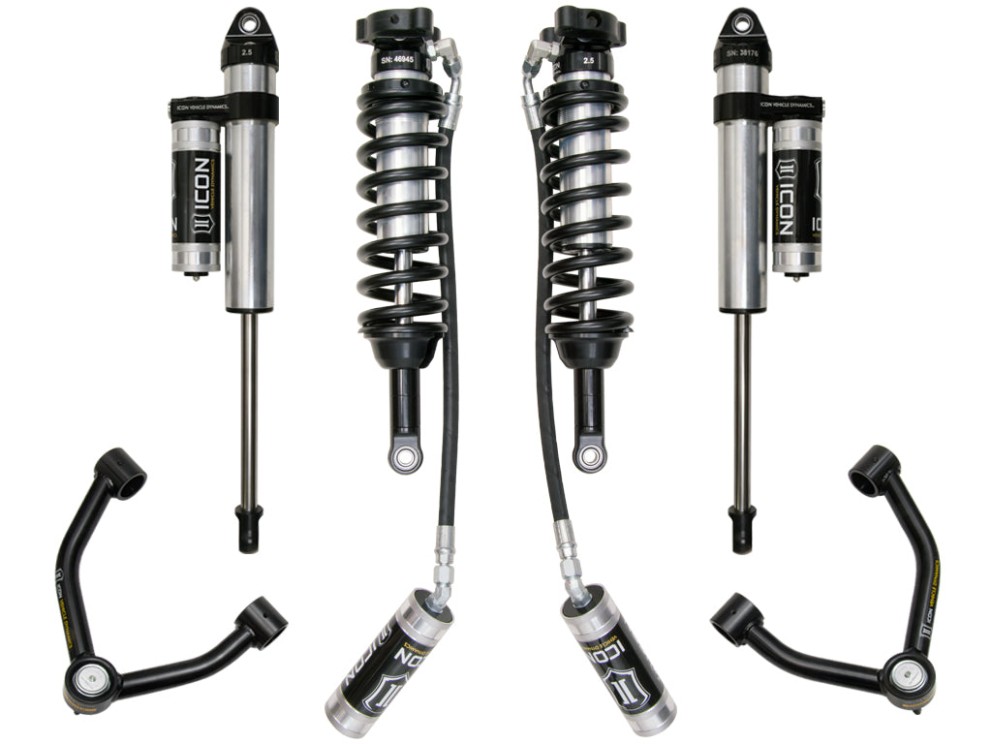

Icon Vehicle Dynamics K73054 Stage 4 Suspension Lift Kit Lift 1.75-3" Chevrolet Colorado/GMC Canyon AT4 15-22

ICON

The Stage 4 suspension for the 2015–2022 GM Colorado/Canyon is engineered to increase wheel travel and damping capability for superior vehicle control and ride quality on- and off-road. Vehicle-specific 2.5" remote-reservoir coilovers up front and 2.5" aluminum piggyback shocks in the rear provide improved cooling and consistent damping during extended use. ICON-tuned coilovers use Eibach springs for balanced vehicle feel and are height adjustable to allow larger wheel and tire combinations.

The system includes tubular upper control arms featuring ICON's patented Delta Joint — a zinc-plated, greaseable high-angle joint that combines the durability of a ball joint with the articulation of a uniball while resisting corrosion and reducing noise.

• Vehicle fitment: 2015–2022 GM Colorado/Canyon
• Wheel travel: 25% increase over stock
• Shock setup: Vehicle-specific tuned 2.5" remote-reservoir coilovers (front) and 2.5" Aluminum Series piggyback shocks (rear)
• Coilover lift range: Front height-adjustable from 1.75"–3.0" over stock (standard)
• Alternate front lift: Canyon AT4 front lift range 0.75"–2.0" over stock
• Rear compatibility: Included rear shocks compatible with 0"–2" of rear lift
• Springs: ICON-engineered Eibach coil springs
• Materials: 6061 aircraft-grade aluminum CNC-machined components; corrosion-resistant plated coilover bodies with 7/8" shafts
• Bearing hardware: FK rod-end bearings for extended longevity and minimal deflection
• Upper control arms: Tubular steel with Delta Joint
• Durability: 2.5" Aluminum Series rear shocks use one-piece impact-extruded aluminum cylinders for corrosion resistance and consistent finish
• Installation: 100% bolt-on system — no drilling or welding required
• Fitment: Fits 2WD and 4WD models; compatible with diesel models

Notes

• OEM wheels and tires fitment: Yes.
• Recommended aftermarket wheel size: 17x8.5" with 4.75" backspace / 0mm offset.
• Recommended tire size: up to 32" x 11.00". Larger tires may fit but will require fender trimming and modifications.
• Shocks are fully serviceable. Coilover heights indicated are for a stock-equipped vehicle.
• Not compatible with Colorado ZR2.
• Use up to 32" x 11.00" tires with up to 2" maximum rear lift.
