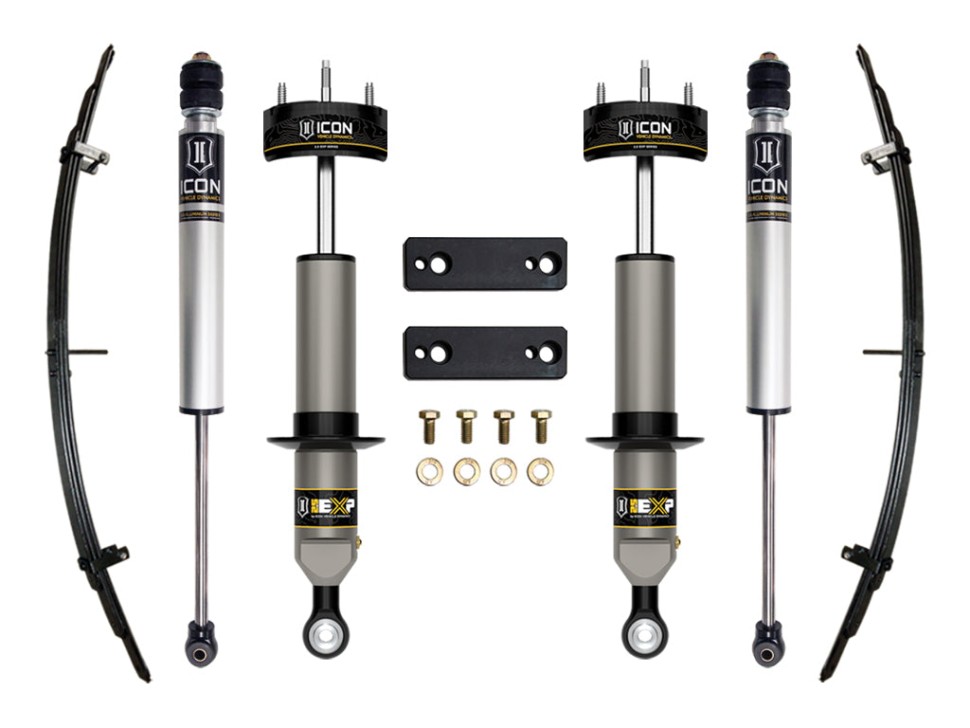

Icon Vehicle Dynamics K53221 Stage 2 EXP Suspension Lift Kit Lift 0-2" Toyota Tacoma 05-23

ICON Vehicle Dynamics Stage 2 EXP Suspension System — 2005-2023 Toyota Tacoma

The ICON Vehicle Dynamics Stage 2 EXP suspension system enhances on- and off-road performance for the 2005-2023 Toyota Tacoma, providing front and rear lift and clearance for up to 33" tires. The system combines 2.5 EXP series front coilover shocks, sway bar relocation brackets, a rear add-a-leaf, and 2.0 Aluminum Series rear shocks to deliver improved ride quality, travel, and balanced control.

The 2.5 EXP front coilovers are a rebuildable, 2.5-inch diameter design that reuses the factory coil spring and hardware while offering 0–2" of adjustable front lift via a snap ring. Sway bar relocation brackets reduce link bind and provide clearance from the EXP coilovers to allow full wheel travel without overstressing OE components.

The rear add-a-leaf replaces the OE overload leaf to soften the rear spring rate, improving ride quality and providing approximately 1.5" of rear lift. The V.S. 2.0 Aluminum Series rear shocks are tuned to complement the front EXP coilovers for balanced vehicle control and enhanced on- and off-road performance. All ICON shock absorbers in this system are fully rebuildable and re-tunable.

• Vehicle fitment: 2005–2023 Toyota Tacoma
• Front shocks: 2.5 EXP Series coilovers (use factory coil and hardware)
• Front ride height: Adjustable 0–2" of front lift with snap ring
• Sway bar: Relocation brackets for improved clearance and reduced link bind
• Rear spring: Add-a-leaf softens spring rate and provides ~1.5" rear lift
• Rear shocks: V.S. 2.0 Aluminum Series monotube, nitrogen-charged
• Shocks: Fully rebuildable and re-tunable
• Tire fitment: Supports up to 33 x 11.50 tires (minor fender trimming may be required)
• Recommended wheel sizes (general guidance): 17x8.5 (4.75" backspace), 18x9 (5.00" backspace), 20x9 (5.00" backspace) with approximately 0mm offset

Notes

• Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
• Trimming required for recommended tire size.
• Not compatible with TRD Pro.
• Not compatible with 2005–2015 rear-wheel-drive Tacomas with 5 lug studs.
