Icon Vehicle Dynamics K53220 Stage 1 EXP Suspension Lift Kit Lift 0-2" Toyota Tacoma 05-23
Product images
+14
points
points
|
Submodel
Show all |
Limited, SR, SR5, TRD Off-Road, TRD Sport, Trail
|
| Series | Stage 1 EXP |
| Installation side | Front, Rear |
| Lift Height, inch | 0-2" |
| Drive Type | 4WD |
| Brand | Icon Vehicle Dynamics |
| Box Weight | 31 lbs |
| Box Length | 32 in |

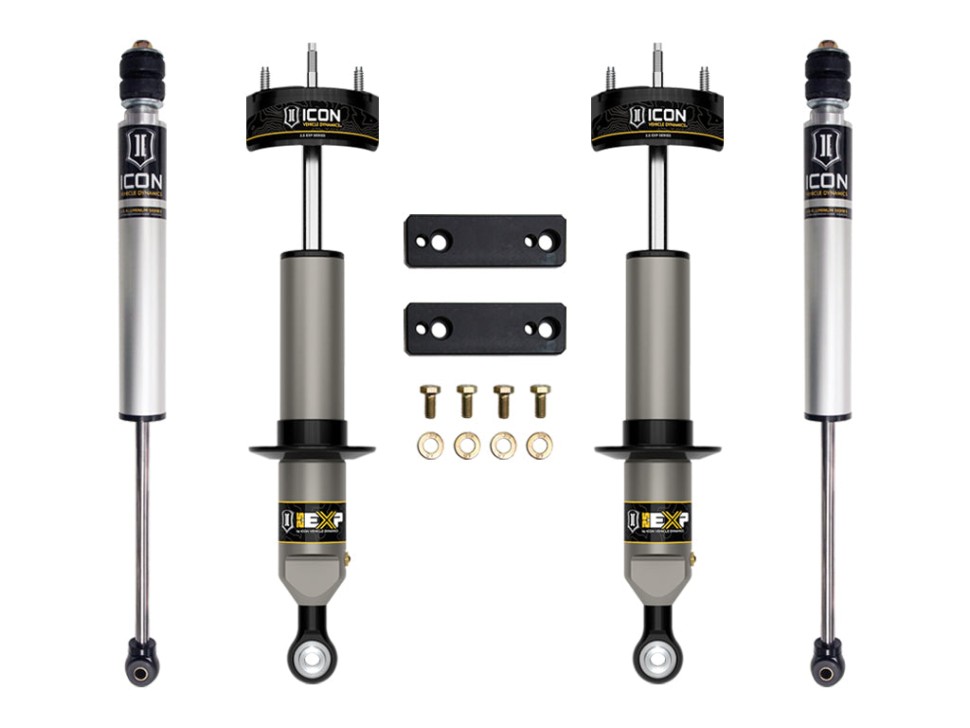

ICON Vehicle Dynamics Stage 1 EXP Suspension System — 2005-2023 Toyota Tacoma
The ICON Stage 1 EXP suspension system is an entry-level performance upgrade designed to improve on- and off-road performance while providing front-end lift and leveling for proper stance and fitment of up to 33" tires. The system pairs 2.5 EXP front coilover-style shocks that reuse the factory coil and hardware with ICON 2.0 Aluminum Series nitrogen-charged monotube rear shocks for a balanced, controlled ride.
- Vehicle fitment: Specifically engineered for 2005–2023 Toyota Tacoma.
- Front shocks: 2.5 EXP Series, fully rebuildable 2.5" diameter design that utilizes the factory coil and coil hardware, offering custom-tuned performance and maximum travel.
- Adjustable front ride height: 0–2" of lift over stock using the included snap ring.
- Sway bar relocation brackets: Reduce sway bar link bind and provide clearance from the EXP coilovers to allow full suspension travel.
- Rear shocks: V.S. 2.0 Aluminum Series monotube shocks tuned for the Tacoma to provide matched front-to-rear control and improved on/off-road performance.
- Serviceability: All ICON shock absorbers in the system are fully rebuildable and re-tunable.
Notes:
- Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
- Fits up to 33" x 11.50" tires; minor fender trimming may be required.
- Trimming required for recommended tire size.
- Not compatible with TRD Pro models.
- Not compatible with 2005–2015 rear-wheel drive Tacomas that use five lug studs.
- Included rear shocks are compatible with 0–1.5" of rear lift over stock.
Icon Vehicle Dynamics K53220 Stage 1 EXP Suspension Lift Kit Lift 0-2" Toyota Tacoma 05-23 - Features
|
Submodel
Show all |
Limited, SR, SR5, TRD Off-Road, TRD Sport, Trail
|
| Series | Stage 1 EXP |
| Installation side | Front, Rear |
| Lift Height, inch | 0-2" |
| Drive Type | 4WD |
| Brand | Icon Vehicle Dynamics |
| Box Weight | 31 lbs |
| Box Length | 32 in |
| Box Width | 6 in |
| Box Height | 5 in |
| UPCCode | 840103421070 |
|
Fitment
Show all |
2016||Toyota||Tacoma, 2017||Toyota||Tacoma, 2018||Toyota||Tacoma, 2019||Toyota||Tacoma, 2020||Toyota||Tacoma, 2021||Toyota||Tacoma, 2005||Toyota||Tacoma, 2006||Toyota||Tacoma, 2007||Toyota||Tacoma, 2008||Toyota||Tacoma, 2009||Toyota||Tacoma, 2010||Toyota||Tacoma, 2011||Toyota||Tacoma, 2012||Toyota||Tacoma, 2013||Toyota||Tacoma, 2014||Toyota||Tacoma, 2015||Toyota||Tacoma, 2022||Toyota||Tacoma, 2023||Toyota||Tacoma
|
