Icon Vehicle Dynamics 95121 Rear Hydraulic Bump Stop Kit Ford F-150 Raptor 17-20

Name: Icon Vehicle Dynamics 95121 Rear Hydraulic Bump Stop Kit Ford F-150 Raptor 17-20
Brand: Icon Vehicle Dynamics
SKU: 95121
Price: 1961.96 USD
Availability: OutOfStock

+19
points

Brand	Icon Vehicle Dynamics
Installation side	Rear
Box Height	10 in
Box Width	15 in
Box Length	33 in
Box Weight	82 lbs
UPCCode	840103407166
Submodel	Raptor

show all features

Buy Icon Vehicle Dynamics 95121 Rear Hydraulic Bump Stop Kit Ford F-150 Raptor 17-20

Price

$1,961.96

Item: 95121

USA

Out of stock

Quantity

Make sure it fits

Please select your vehicle to ensure that this product fits.

Notify Me

Your request has been received!

You will be notified when the item is back in stock via the contact information you provided.

Your E-Mail

- required to fill

Checking...

Order by phone

ICON Raptor Bump Stop System

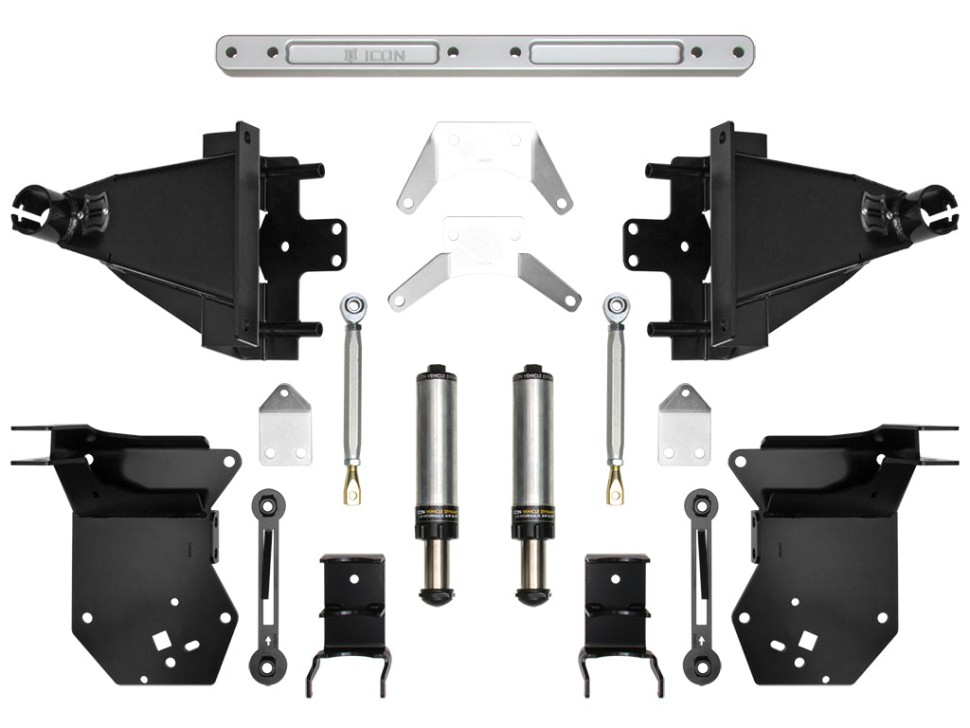

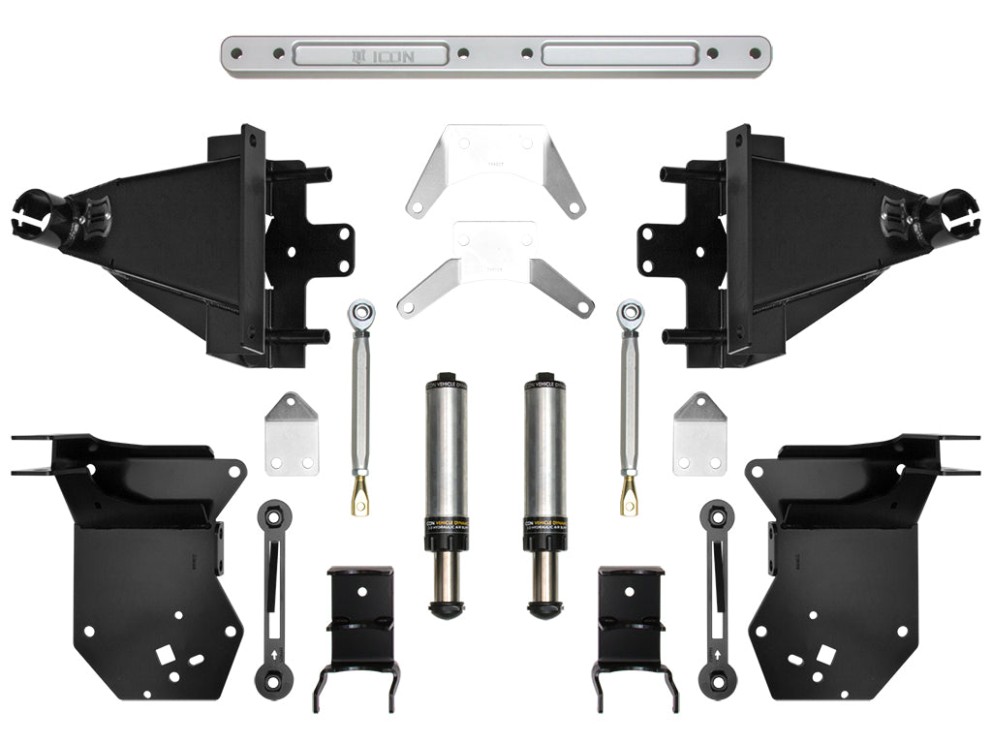

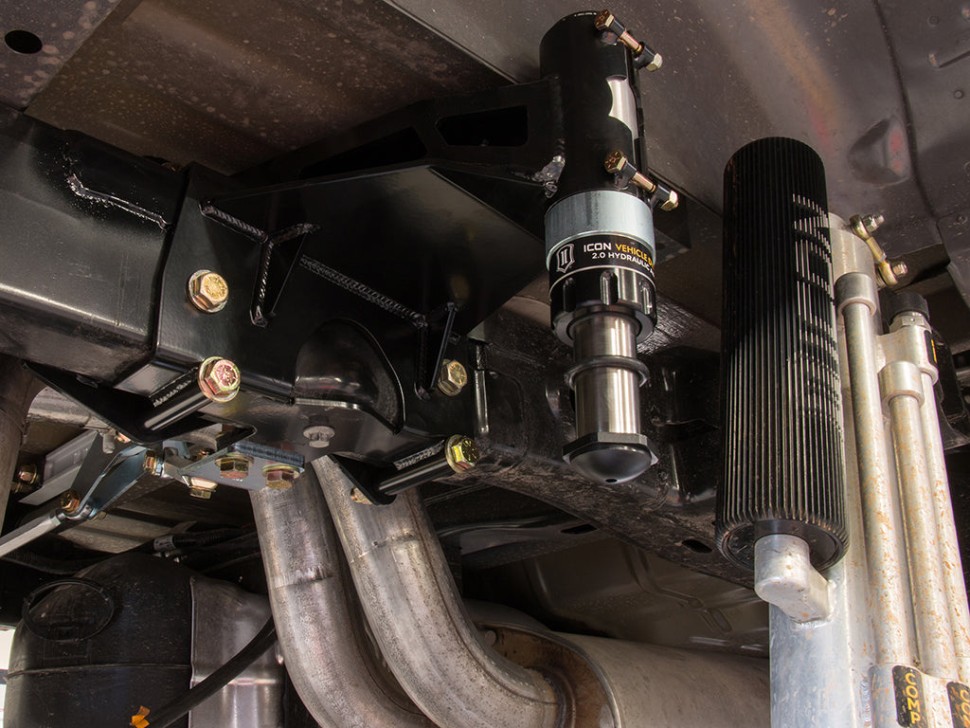

The ICON Raptor Bump Stop System is a complete bolt-on rear bump stop solution designed to increase chassis rigidity, protect the frame during extreme off-road use, and improve rear suspension performance. The system combines heavy-duty steel clamshell brackets, a 6061 billet aluminum crossmember, adjustable tension rods, velocity-sensitive hydraulic bump stops with 2.5" travel, and all necessary hardware for installation.

Bolt-on installation — no fabrication or bed removal required
2.5" travel hydraulic bump stops — reduces rear-end kick and improves overall vehicle performance
Velocity-sensitive technology — damping ramps up with shaft speed for exponential bottoming resistance without negatively affecting articulation
Vehicle-specific bump stop tune — provides smooth engagement and excellent ride quality
6061 billet aluminum crossmember — increases chassis rigidity to improve vehicle dynamics
Steel clamshell brackets — reinforce the frame in critical areas to prevent damage from extreme off-road use
Adjustable tension rods — allow preloading of the frame to withstand torsional forces during hard impacts
Heavy-duty 1.25" CNC machined nitro steel shafts
Multi-stage CAD plated body — maximum corrosion resistance
Replaceable noise-reducing striker pad
Fully serviceable
"ICON 1K" tested — validated under rigorous off-road conditions for tune, performance, strength, and durability
