Icon Vehicle Dynamics 95005 Secondary Shock Lift 1-3" Ford F-150 10-14 Pair

Name: Icon Vehicle Dynamics 95005 Secondary Shock Lift 1-3" Ford F-150 10-14 Pair
Brand: Icon Vehicle Dynamics
SKU: 95005
Price: 3684.15 USD
Availability: OutOfStock

+36
points

Brand	Icon Vehicle Dynamics
Note	Requires Camburg Front Lower Control Arm and Shock Hoop Kit
Installation side	Front
Lift Height, inch	1-3"
Type Adjusters	Non Adjustable
Reservoir	Yes
Quantity	Pair
Box Height	7 in

show all features

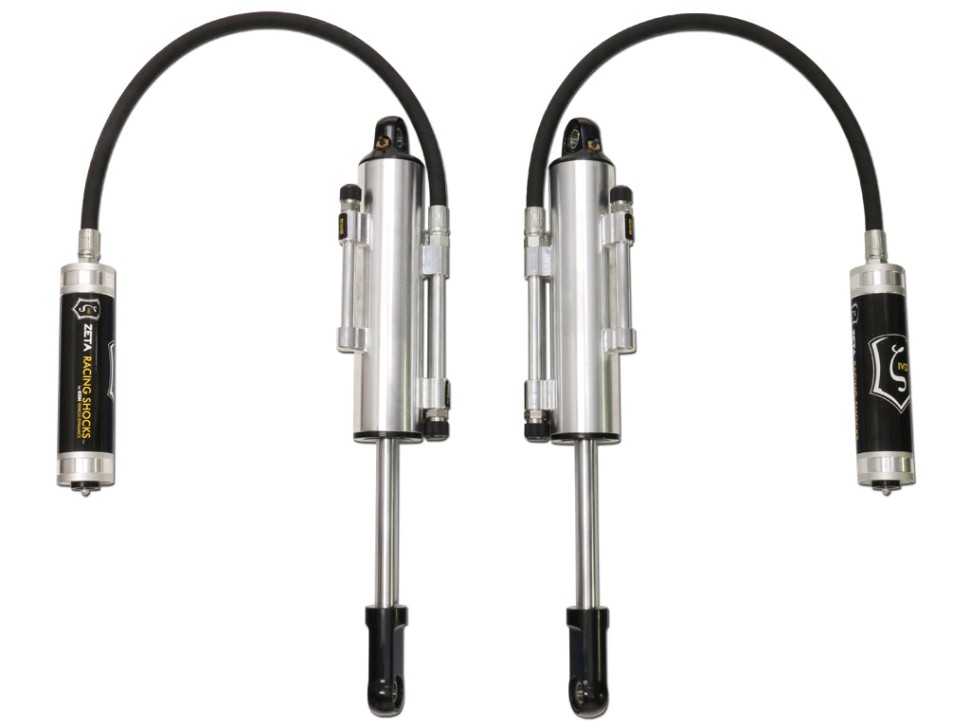

ICON Ford SVT Raptor Secondary Front Shocks

The ICON 3.0 Secondary Bypass front shocks are a three-tube external bypass design with remote reservoir, engineered for Ford SVT Raptor applications and compatibility with dual-shock lower control arm kits. Compression and rebound damping are adjustable via high-resolution knobs to tune performance for varying terrain and driving conditions.

Three-tube external bypass with remote reservoir — each bypass valve features a specific port design and individual spring rates to optimize performance across the full travel range.
Hydraulically damped bypass valve seats — engineered to attenuate bypass noise for quiet, precise operation.
Tool-free high-resolution adjustment knobs — quick, precise changes to compression and rebound without tools.
Replaceable bypass tubes — bypass tubes can be swapped during a standard rebuild, eliminating the need to replace the entire shock body if a tube is damaged.
Digressive main piston rebound — combined with a calibrated external rebound valve preload to provide controlled low-speed behavior as well as high-speed performance.
Compact bypass tube and block design — accommodates three bypass tubes while keeping them close to the body for maximum clearance from tires and suspension components.
Increased front damping capability — engineered to improve front-end control and confidence over rough terrain and larger obstacles.
Durable finish and hardware — multi-stage cad plated finish with polished and anodized top cap and rod ends.

Icon Vehicle Dynamics 95005 Secondary Shock Lift 1-3" Ford F-150 10-14 Pair - Features

Brand	Icon Vehicle Dynamics
Note	Requires Camburg Front Lower Control Arm and Shock Hoop Kit
Installation side	Front
Lift Height, inch	1-3"
Type Adjusters	Non Adjustable
Reservoir	Yes
Quantity	Pair
Box Height	7 in
Box Width	13 in
Box Length	31 in
Box Weight	50 lbs
UPCCode	840103407135
Fitment Show all	2010\|\|Ford\|\|F-150, 2011\|\|Ford\|\|F-150, 2012\|\|Ford\|\|F-150, 2013\|\|Ford\|\|F-150, 2014\|\|Ford\|\|F-150
