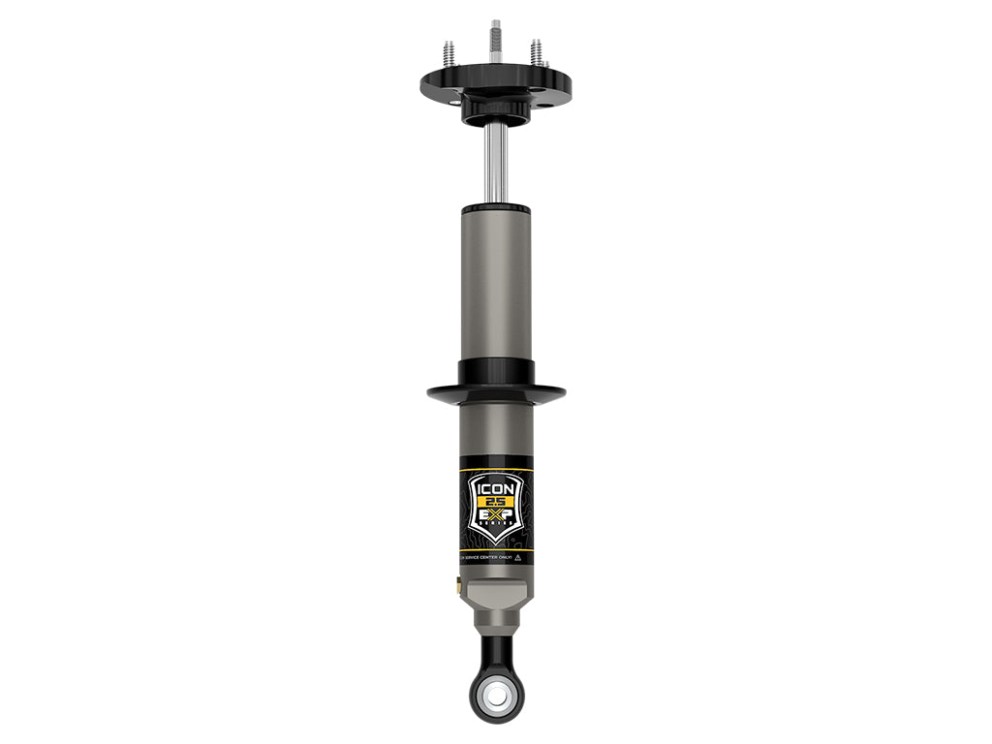

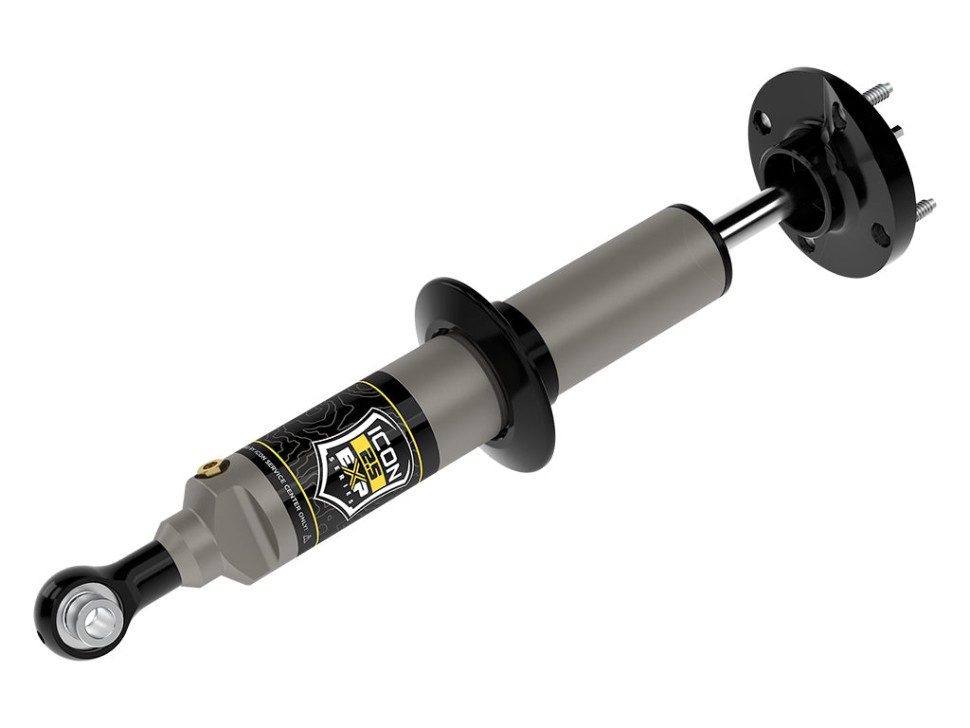

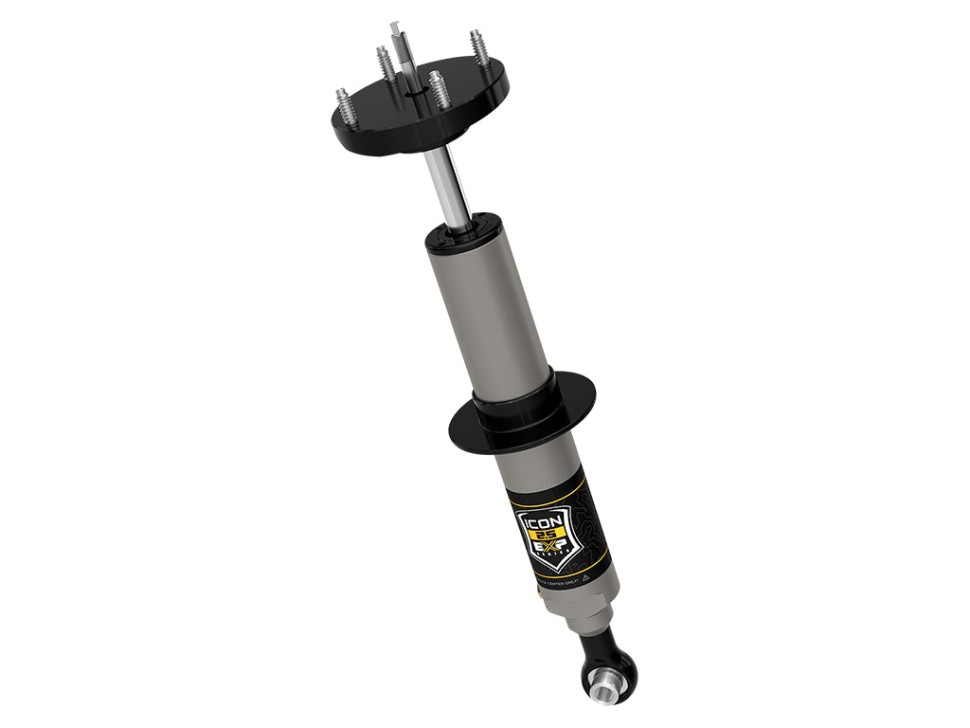

Icon Vehicle Dynamics 58655 2.5 EXP Front Snap Ring Coilover Shock Lift 0-2.5" Toyota Tundra 07-21

Name: Icon Vehicle Dynamics 58655 2.5 EXP Front Snap Ring Coilover Shock Lift 0-2.5" Toyota Tundra 07-21
Brand: Icon Vehicle Dynamics
SKU: 58655
Price: 441.96 USD
Availability: InStock

+4
points

Brand	Icon Vehicle Dynamics
Note	Not Compatible With Trd Pro
Note	Trimming Required For Recommended Tire Size
Series	2.5 EXP
Installation side	Front
Lift Height, inch	0-2.5"
Type Adjusters	Non Adjustable
Reservoir	No

show all features

EXP Series Shock Absorbers — 2007–2021 Toyota Tundra

The EXP Series 2.5-inch aluminum shock is built with a one-piece impact-extruded aluminum body and a hard-anodized finish for superior corrosion and abrasion resistance. It features a large 7/8-inch induction-hardened, chrome-plated shaft and mounts in a shaft-up orientation, including the upper shock mount and spring seat for direct fitment to the Toyota Tundra.

Vehicle specific design: Tuned for 2007–2021 Toyota Tundra to maximize damping performance with the stock front coil springs.
2.5" aluminum body with internal reservoir: Larger piston and increased oil volume improve heat dissipation and long-term shock performance.
Adjustable ride height: Snap-ring grooves allow selectable front lift from 0" to 2.25" over stock.
OE coil compatibility: CNC-machined 6061 billet aluminum coil spring seat fits factory coil springs and uses factory coil hardware.
Durable construction: Impact-extruded, hard-anodized cylinder with a 7/8" induction-hardened, chrome-plated shaft for strength and longevity.
Precision components: CNC-machined aluminum parts with PTFE-lined spherical bearing for reduced deflection and extended life.
Serviceable and tunable: Fully rebuildable and re-valvable by a qualified shock technician with available service parts.

Notes

OEM wheels and tires fitment: Yes.
Recommended tire size: 35" x 12.50" (minor fender trimming may be required).
Shocks are fully serviceable. Lift heights indicated are for a stock-equipped vehicle.
Trimming required for the recommended tire size.
Not compatible with TRD Pro.

Icon Vehicle Dynamics 58655 2.5 EXP Front Snap Ring Coilover Shock Lift 0-2.5" Toyota Tundra 07-21 - Features

Brand	Icon Vehicle Dynamics
Note	Not Compatible With Trd Pro
Note	Trimming Required For Recommended Tire Size
Series	2.5 EXP
Installation side	Front
Lift Height, inch	0-2.5"
Type Adjusters	Non Adjustable
Reservoir	No
Quantity	Single
Box Height	4.6 in
Box Width	5.8 in
Box Length	29.6 in
Box Weight	10.7 lbs
UPCCode	840103421117
Submodel Show all	Limited, Platinum, SR, SR5, TRD Pro, 1794 Edition
Fitment Show all	2007\|\|Toyota\|\|Tundra, 2008\|\|Toyota\|\|Tundra, 2009\|\|Toyota\|\|Tundra, 2010\|\|Toyota\|\|Tundra, 2011\|\|Toyota\|\|Tundra, 2012\|\|Toyota\|\|Tundra, 2013\|\|Toyota\|\|Tundra, 2014\|\|Toyota\|\|Tundra, 2015\|\|Toyota\|\|Tundra, 2016\|\|Toyota\|\|Tundra, 2017\|\|Toyota\|\|Tundra, 2018\|\|Toyota\|\|Tundra, 2019\|\|Toyota\|\|Tundra, 2020\|\|Toyota\|\|Tundra, 2021\|\|Toyota\|\|Tundra
