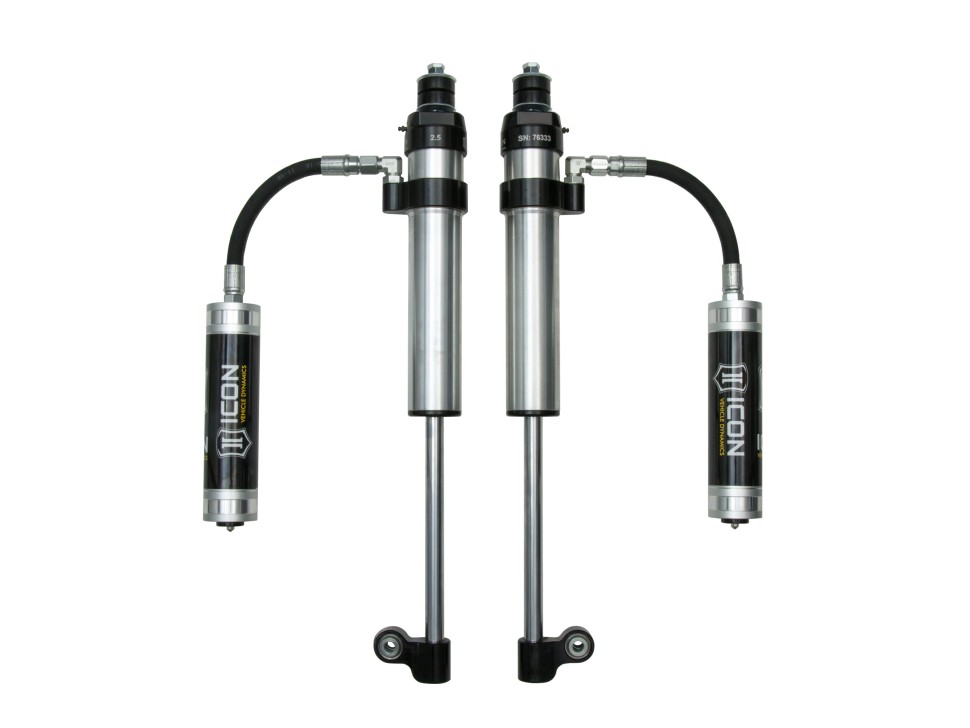

Icon Vehicle Dynamics 57826P 2.5 VS Remote Reservoir Rear Reservoir Shock Lift 0-2.63" Toyota Tacoma 05-23 Pair

ICON 2.5 Aluminum Series Shocks

Designed to deliver outstanding off-road performance and a smooth on-road ride, these shocks are tuned and length-matched for each specific application. Featuring ICON's exclusive RXT side-mounted rod ends for increased shaft travel while remaining bolt-on to factory shock mounts. One-piece impact-extruded aluminum cylinders reduce weight, improve corrosion resistance, and provide a uniform finish. Fully serviceable design allows complete rebuilding and revalving. An internal Bump Zone created by a 6061 billet aluminum manifold increases damping force to help prevent harsh bottom outs during high-velocity compression.

• Internal Bump Zone: Increases damping by 20% to provide more control as the shock approaches full compression.
• RXT side-mounted rod ends: Allow increased shaft travel while maintaining compatibility with factory mounting points.
• PTFE-lined spherical bearings: Durable, low-friction mounting hardware tailored to application.
• 6061 aircraft-grade aluminum CNC components: Precision machined for strength and consistency.
• One-piece impact-extruded aluminum cylinders: Lighter weight, excellent corrosion resistance, consistent finish.
• 100% Rebuildable: Designed for full serviceability.
• 100% Revalveable: Tunable damping for specific needs.
• Remote reservoir design: Improves heat dissipation to reduce shock fade during prolonged use.
• Premium 5WT shock oil: Consistent damping across a wide temperature range.
• Nitrogen-charged monotube: Stable performance and reduced aeration.
• Double-sealed Schrader caps: Reduce risk of damage and ingress.
• One-piece digressive piston: Vehicle-specific valving for balanced performance and ride quality on and off-road.
• 7/8" induction-hardened, chrome-plated shaft: Durable, long-lasting rod construction.

Notes

• Will not fit 2WD Tacoma with 5 wheel lug studs
• ICON Multi-Rate Leaf Springs Part #158505 required for installation
• Compatible with 0-2.625" of rear lift provided by ICON Multi-Rate Leaf Springs

Icon Vehicle Dynamics 57826P 2.5 VS Remote Reservoir Rear Reservoir Shock Lift 0-2.63" Toyota Tacoma 05-23 Pair - Features
