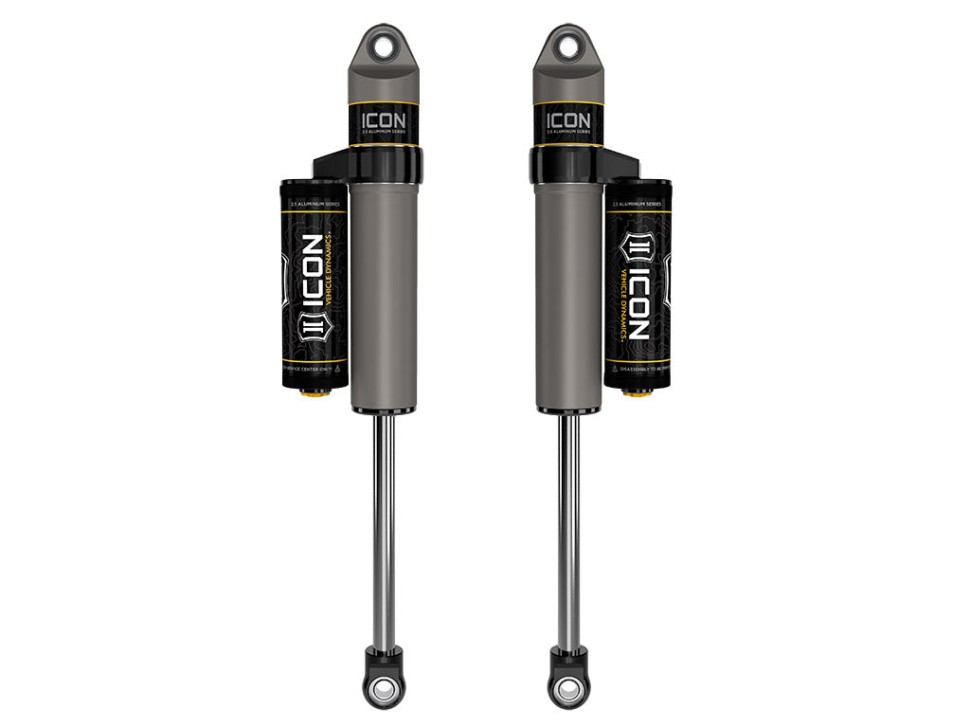

Icon Vehicle Dynamics 37710P 2.5 VS PB Rear Reservoir Shock Lift 3-6" Ford F-250/F-350/Excursion 99-05 Pair
Product images
+11
points
points
| Brand | Icon Vehicle Dynamics |
| Note | Can be installed with ICON Dual Shock Mount kit part number 39010. A quantity of 2 are required per vehicle and heim spacers part number 257164 (qty 8) are also required |
| Note | With OE Stock Mounts |
| Note | Compatible with 3-6” of front lift over stock |
| Series | 2.5 VS PB |
| Installation side | Front |
| Lift Height, inch | 3-6" |
| Type Adjusters | Non Adjustable |
ICON 2.5 Aluminum Series Shocks
ICON 2.5 Aluminum Series shocks are engineered to deliver outstanding off-road performance while maintaining a smooth on-road ride. Each shock is configured for the specific vehicle application in both length and damping tune. These shocks are fully rebuildable and revalveable, and feature a unique internal Bump Zone that increases damping to control high-velocity compression and reduce harsh bottoming.
- Internal Bump Zone: Increases damping by 20% to provide greater control as the shock approaches full compression.
- Remote reservoir design: Improves heat dissipation to reduce shock fade during prolonged use.
- Premium oil: Grade 5WT shock oil for consistent damping across a wide temperature range.
- Nitrogen-charged monotube: Monotube design with piggyback reservoir for reliable performance.
- One-piece digressive piston: Vehicle-specific valving for superior performance and ride quality on and off road.
- Durable shaft: 7/8" diameter induction-hardened, chrome-plated shock shaft.
- Quality mounting: PTFE-lined spherical bearings and application-specific mounting hardware.
- Premium materials: 6061 aircraft-grade aluminum CNC-machined components and one-piece impact-extruded aluminum cylinders for corrosion resistance and a consistent finish.
- Serviceable: 100% rebuildable and 100% revalveable.
- Upgradeable: Piggyback and remote reservoir shocks can be upgraded to the Compression Damping Control Valve (CDCV) for more user-defined tuning.
* Compatible with 3-6" of front lift over stock.
* Can be installed with the Dual Shock Mount kit part number 39010 (quantity of 2 required per vehicle) and heim spacers part number 257164 (quantity of 8 required).
Icon Vehicle Dynamics 37710P 2.5 VS PB Rear Reservoir Shock Lift 3-6" Ford F-250/F-350/Excursion 99-05 Pair - Features
| Brand | Icon Vehicle Dynamics |
| Note | Can be installed with ICON Dual Shock Mount kit part number 39010. A quantity of 2 are required per vehicle and heim spacers part number 257164 (qty 8) are also required |
| Note | With OE Stock Mounts |
| Note | Compatible with 3-6” of front lift over stock |
| Series | 2.5 VS PB |
| Installation side | Front |
| Lift Height, inch | 3-6" |
| Type Adjusters | Non Adjustable |
| Reservoir | Yes |
| Quantity | Pair |
| Box Height | 9 in |
| Box Width | 10 in |
| Box Length | 39 in |
| Box Weight | 25 lbs |
| UPCCode | 840103402543 |
| Drive Type | 4WD |
|
Fitment
Show all |
2004||Ford||F-250, 2004||Ford||F-350, 2003||Ford||F-250, 2003||Ford||F-350, 2002||Ford||F-250, 2002||Ford||F-350, 2001||Ford||F-250, 2001||Ford||F-350, 2000||Ford||F-250, 2000||Ford||F-350, 1999||Ford||F-250, 1999||Ford||F-350, 2003||Ford||Excursion, 2005||Ford||Excursion, 2000||Ford||Excursion, 2001||Ford||Excursion, 2002||Ford||Excursion, 2004||Ford||Excursion
|
