Комплект установки интеллектуального управления Dodge Ram 2500 14-22 Icon Vehicle Dynamics 213500

Name: Комплект установки интеллектуального управления Dodge Ram 2500 14-22 Icon Vehicle Dynamics 213500
Brand: Icon Vehicle Dynamics
SKU: 213500
Price: 613.62 USD
Availability: OutOfStock

+6
points

Brand	Icon Vehicle Dynamics
Note	With 2.5 (in) suspension lift also requires part number 217802ep and number 217708ep,with 4.5 (in) suspension lift also requires part number 217803ep and number 217704ep,with icon rear .5 in lift performance spring kit with 2.5 (in) suspension lift also r
Box Height	5 in
Box Width	9 in
Box Length	19 in
Box Weight	4 lbs
UPCCode	840103414522
Submodel	4WD

show all features

ICON Intelligent Control (IIC)

ICON Intelligent Control (IIC) is an on-board control computer that monitors, analyzes, and processes vehicle motion data in real time. Integrated G-force sensors and a gyroscope feed custom algorithms and user-defined settings to predict terrain and wheel position. The IIC can collect data at over 1,000 times per second, process it, and send adjustments to the Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. It also serves as the interface between the vehicle and the IIC mobile app for monitoring and adjusting shock performance. The unit mounts using vehicle-specific brackets, hardware, and wire harnesses for a clean installation.

The IIC mobile app provides a simple interface, connected via Bluetooth to a compatible mobile device, to monitor system status, record trip data, and tune shock behavior. Users can adjust baseline firmness and the sensitivity of vertical “G-Boost” and lateral “Corner Boost,” choose from preset drive modes or create unlimited custom presets, and log trip data including time, speed, distance, and G-forces.

Active shock damping: Selectable automatic damping adjustments plus manual baseline control without exiting the vehicle.
High-rate sensing: Onboard sensors monitor G-forces and chassis movement and feed calculations at over 1,000 Hz.
Fast control response: Damping commands sent to CDEV shocks that react in under 40 milliseconds.
Mobile interface: Bluetooth-connected mobile app for monitoring, preset drive modes, and unlimited custom presets.
Data logging: Records time, speed, distance, and G-force data for trip review.

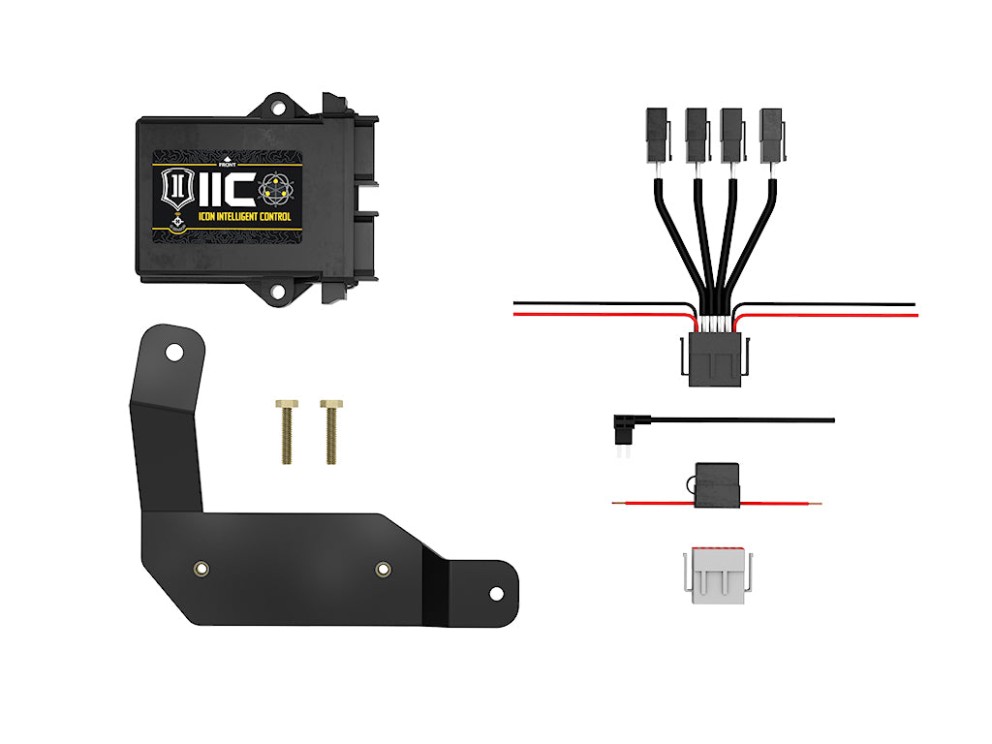

Complete mounting hardware: Supplied vehicle-specific brackets, hardware, and wire harnesses for installation.

Комплект установки интеллектуального управления Dodge Ram 2500 14-22 Icon Vehicle Dynamics 213500 - Features

Brand	Icon Vehicle Dynamics
Note	With 2.5 (in) suspension lift also requires part number 217802ep and number 217708ep,with 4.5 (in) suspension lift also requires part number 217803ep and number 217704ep,with icon rear .5 in lift performance spring kit with 2.5 (in) suspension lift also r
Box Height	5 in
Box Width	9 in
Box Length	19 in
Box Weight	4 lbs
UPCCode	840103414522
Submodel	4WD
Submodel Show all	Sport, Limited, Big Horn, Laramie, Laramie Longhorn, Outdoorsman, Tradesman, Lone Star, Power Wagon
Fitment Show all	2014\|\|Dodge\|\|Ram 2500, 2015\|\|Dodge\|\|Ram 2500, 2016\|\|Dodge\|\|Ram 2500, 2017\|\|Dodge\|\|Ram 2500, 2018\|\|Dodge\|\|Ram 2500, 2019\|\|Dodge\|\|Ram 2500, 2020\|\|Dodge\|\|Ram 2500, 2021\|\|Dodge\|\|Ram 2500, 2021\|\|Ram\|\|2500, 2020\|\|Ram\|\|2500, 2019\|\|Ram\|\|2500, 2018\|\|Ram\|\|2500, 2017\|\|Ram\|\|2500, 2016\|\|Ram\|\|2500, 2015\|\|Ram\|\|2500, 2014\|\|Ram\|\|2500, 2022\|\|Dodge\|\|Ram 2500, 2022\|\|Ram\|\|2500
