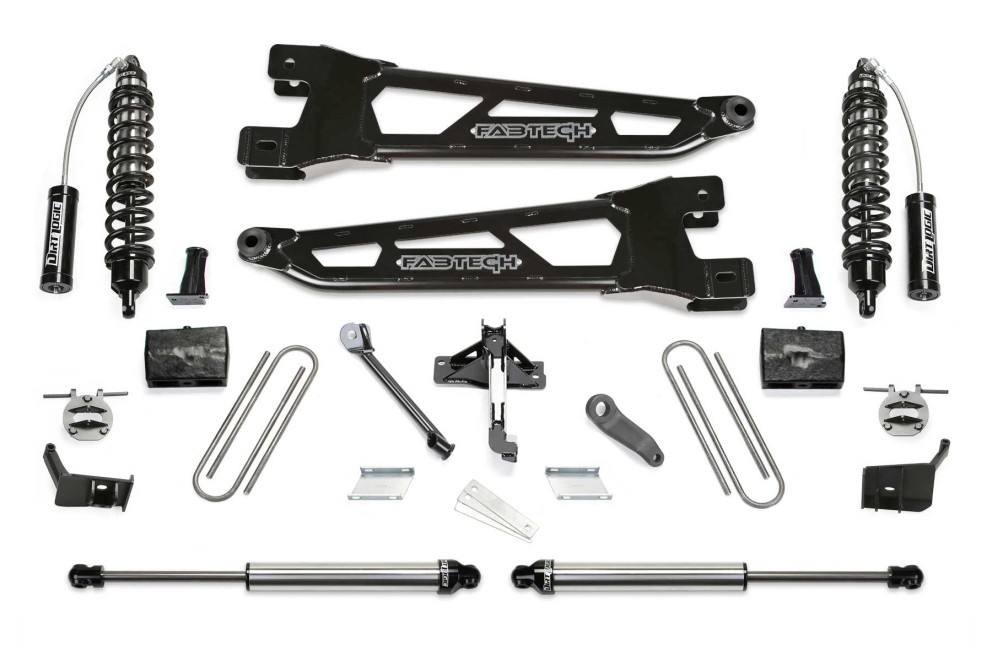

Fabtech K2243DL Suspension Lift Kit Lift 6" Ford F-250/F-350 17-22

Fabtech 6" Radius Arm Lift Kit

The Fabtech 6" Radius Arm Lift Kit is a heavy-duty suspension upgrade engineered for Ford Super Duty trucks. Built to handle demanding offroad terrain while maintaining a smooth, compliant highway ride, this system strengthens the factory suspension and improves overall capability.

• Tubular Radius Arms: Redesigned tubular construction with an updated side plate and laser-cut logo for a modern, aggressive appearance. Offset design provides full turning radius and includes adjustable alignment cams for additional caster adjustment.
• Front Coilovers: Dirt Logic 2.5 Resi coilovers with a 2.5" stainless-style body and a high-strength piston rod for corrosion resistance and durability. Coil springs improve load support and increase wheel travel for better offroad performance.
• Track Bar Relocation: Heavy-duty relocation bracket centers the front axle under the vehicle at the increased lift height and minimizes deflection throughout suspension travel.
• Pitman Arm: Forged steel heavy-duty pitman arm designed to work with the factory drag link and extended track bar for improved steering geometry and function.
• Bump Stop and Sway Bar Brackets: Steel bump stop brackets extend factory cushions to prevent over-cycling. Sway bar drop brackets reposition the sway bar to allow full link travel without binding.
• Brake Line and Steering Stabilizer Brackets: Brake line brackets relocate factory lines to accommodate increased travel without opening the brake system. Steering stabilizer bracket retains the stock stabilizer with added support to reduce steering shimmy.
• Rear Lift Components: Cast iron rear lift blocks with integrated bump stops maintain ride quality and load capacity. Heavy-duty U-bolts secure the rear differential to the vehicle.
• Durability and Design: Structural steel brackets and reinforced components are used throughout to handle severe use while preserving daily drivability.

*Compatibility and installation notes: Fits Ford Super Duty F-250 and F-350 4WD models in the specified model years. Not compatible with dually configurations. Some vehicle configurations may require additional driveshaft or sway-bar link components and professional installation is recommended to ensure proper alignment and steering geometry. Always verify fitment for your specific vehicle and options before installation.

Fabtech K2243DL Suspension Lift Kit Lift 6" Ford F-250/F-350 17-22 - Features
