WARN M8274-50 Winch 12V (38631)

+21
points

Auto	ALL
UPCCode	012748386315
Box Height	10 in
Box Width	17 in
Box Length	23 in
Box Weight	128 lbs
Brand	Warn
Series Winch	Classic / Specialty Series

show all features

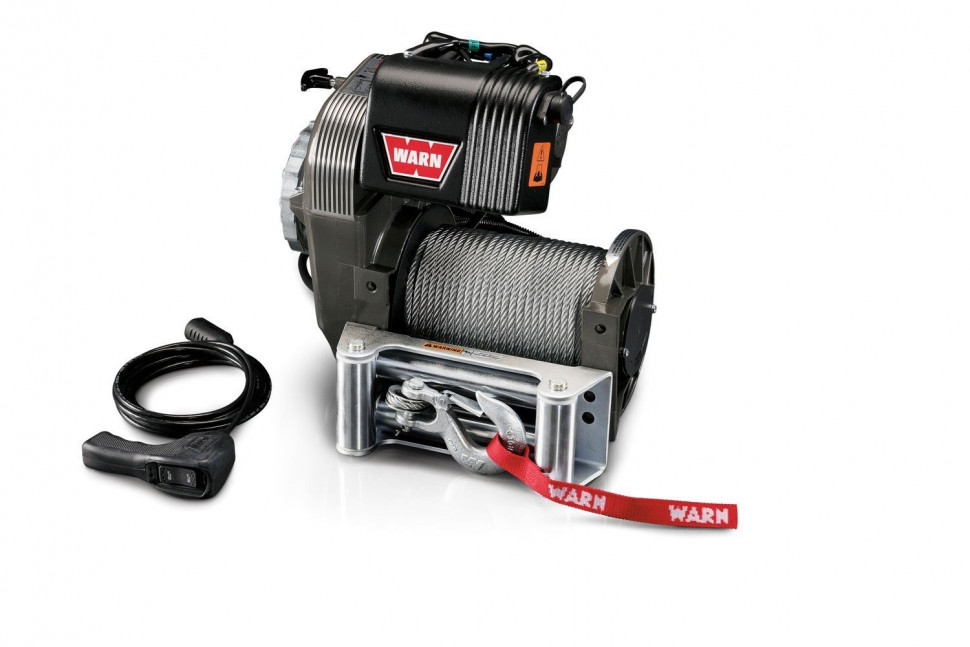

Loved by off-roaders who compete, it's our fastest winch. No-load retrieval speed for the M8274-50 is 79.3 feet per minute, and that's not all. At 150 ft. of 5/16" cable, it also has a very long line capacity. Its unique spur gear drivetrain and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.

Very Long Line Capacity
Unique Spur Gear Drive Train
Upright Design
Rugged Construction
Smooth Braking System
Superior Heat Dissipation
Limited 1 Year Warranty

TYPE	Electric
MOUNT TYPE	Vehicle Mounted
RECOMMENDED USE	Vehicle Recovery
VOLTAGE	12 Volt
MOTOR HORSEPOWER	4.6 Horsepower
ELECTRICAL CONTROL TYPE	Solenoid
MOTOR TYPE	Series Wound
THERMAL SHUTOFF	No
DRIVE GEAR TYPE	Spur
GEAR REDUCTION RATIO	134:1
FREE SPOOLING	Yes
BRAKE TYPE	Disc Brake
LINE DIAMETER (IN)	5/16 Inch
LINE LENGTH (FT)	150 Feet
LINE MATERIAL	Steel
FAIRLEAD TYPE	Roller
CONFORMS TO J706 STANDARDS	No
REMOTE TYPE	Handheld Remote Switch
MOUNTING HOLE QUANTITY	4
OPERATION TYPE	Automatic
MOUNTING PATTERN LENGTH (IN)	10 Inch
MOUNTING PATTERN WIDTH (IN)	4-1/2 Inch
INCLUDES MOUNTING HARDWARE	No
COLOR	Gray
MAX AMP DRAW/ LINE PULL	480 Amp Draw/ 9000 Pound
MAX LINE PULL/ LINE SPEED	9000 Pound/ 8.7 Feet Per Minute

WARN M8274-50 Winch 12V (38631) - Features

Auto	ALL
UPCCode	012748386315
Box Height	10 in
Box Width	17 in
Box Length	23 in
Box Weight	128 lbs
Brand	Warn
Series Winch	Classic / Specialty Series
Line Material	Steel
Winch Fairlead Type	Roller
Winch Gear Ratio	134:1
Winch Line Length	150 ft.
Winch Rated Line Pull	9000 lbs.
Winch Type	Electric
Remote control	Wired
