Viair 50005 Expedition High Pressure Onboard Air System High Pressure Onboard Air System 12v

Universal Expedition™ 12 V High Pressure Onboard Air System with 2.5 gal Tank by Viair®. VIAIR`s Expedition High Pressure Onboard Air System is a pre-packaged compressed air solution that features a 100% duty cycle Stealth Black 444C compressor, a 2.5 gallon air tank, 180 PSI digital tire inflation gun, and all necessary components needed to install a working system, useful for multiple pneumatic applications.

Notes:

·         Use thread sealant for proper installation

·         Thread tape is not recommended

·         Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs

Specifications:

·         Voltage: 12 V

·         Used Wheel Size: Up to 37"

·         Motor: Permanent Magnetic

·         Duty Cycle: 100% @ 200 psi

·         Max. Working Pressure: 200 psi

·         Tank Capacity: 2.5 gal

·         Max. Air Tank Size: 5 gal

·         Max. Amp Draw: 23 A

·         Ingress Protection Rating: IP67

·         Dimensions (L x W x H): 10.63" x 4.1" x 6.44"

·         Weight: 11.1 lbs

Features:

·         Specially made for your tire repair and maintenance

·         Manufactured from quality materials to the highest standards

·         Built to withstand the test of time

·         Easy-to-use product at a fair price

·         Designed to help to get your job done right

·         Manufactured utilizing the highest quality materials

·         Built to provide exceptional levels of durability

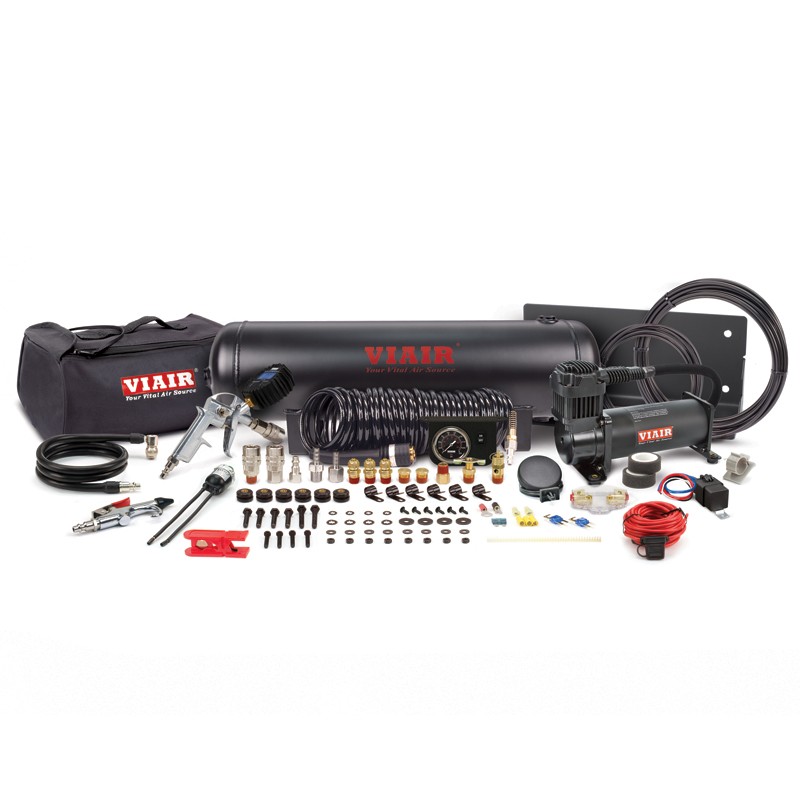

Includes:

·         444C Stealth Black 200 psi VIAIR Compressor

·         2.5 gal Matte Black VIAIR Air Tank (200 psi)

·         Illuminated Dash Panel Gauge Kit, Black Face 200 psi

·         Sealed Pressure Switch (165 psi on, 200 psi off)

·         Sealed 40 A 4-prong Relay

·         Mini ANL Fuse Holder w/ 40 A Fuse

·         Tire Inflation Gun with 180 psi Digital Gauge

·         30` Coil Hose with Quick Connect and Stud

·         90° 40" Twist-On Air Hose Chuck

·         Rubber Tipped Blow Gun

·         1/4" 250 psi Safety Valve

·         1/4" Drain Cock

·         1/4" NPT (M) Quick Connect Coupler

·         1/4" NPT (F) Quick Connect Coupler

·         1/4" NPT (F) Quick Connect Stud

·         1/4" Compression Fittings

·         1/4" Air Line (15`)

·         Stainless Steel Air Line Cutter

·         Air Filter Housing w/ Replacement

·         Air Filter Element

·         Heavy Duty Universal Mounting Bracket

·         20` Freeze Resistant 12-Gauge Wire w/ Inline Fuse Holder

VIAIR Storage Bag
