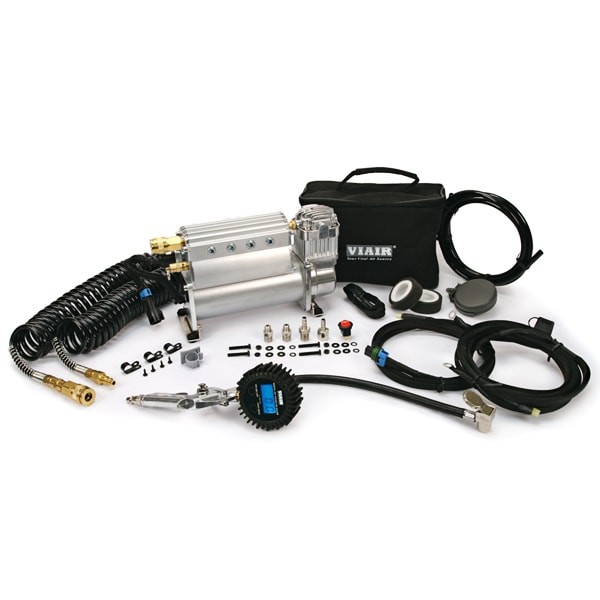

Viair 45055 Constant Duty ADA Air System Universal 12v
Product images
+5
points
points
prev
next
| Brand | Viair |
| Type | Onboard Compressor Systems |
| PSI / CFM | 150 PSI / 1.80 CFM150 |
| CFM | 1,8 |
| l/min | 51 |
| Voltage | 12v |
| For tires up to | 37" |
| Series | ADA |
Customers who bought Viair 45055 Constant Duty ADA Air System Universal 12v also bought
prev
next
Universal Constant Duty Tire Air System by Viair. Using a 100% (Constant Duty) duty cycle 450C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.
Specifications:
- Voltage: 12 V
- Motor: Permanent Magnetic
- Duty Cycle: 100% @ 100 PSI
- Drain Cock: 1/8" NPT
- Safety Valve: 1/4" NPT
- Hex Plug: (8) 1/4" NPT
- Sealed Pressure Switch: 1/4" NPT (85/105 PSI)
- BSP Adapter: (2) 1/4" NPT
- Automatic Coupler: 1/4" NPT
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 9.38" x 4" x 6.75"
- Weight: 12.5 lbs
Features:
- 450C Compressor w/Thermal Overload Protector
- Extruded Aluminum Air Tank (12-port)
- Toggle Switch
- Air Line for Remote Mount Air Filter Installation
- Remote Mount Air Filter Relocation Fittings
- Designed to help to get your job done right
- Manufactured utilizing the highest quality materials
- Built to provide exceptional levels of durability
Viair 45055 Constant Duty ADA Air System Universal 12v - Features
| Brand | Viair |
| Type | Onboard Compressor Systems |
| PSI / CFM | 150 PSI / 1.80 CFM150 |
| CFM | 1,8 |
| l/min | 51 |
| Voltage | 12v |
| For tires up to | 37" |
| Series | ADA |
| Auto | ALL |
| Box Weight | 12.5 kg |
