Viair 40052 Air Compressor Kit C Series 24v
Product images
+1
points
points
prev
next
| Brand | Viair |
| Type | Onboard compressors |
| PSI / CFM | 150 PSI / 2.33 CFM |
| CFM | 2,33 |
| l/min | 66 |
| Voltage | 24v |
| Series | C Series |
| Auto | ALL |
Customers who bought Viair 40052 Air Compressor Kit C Series 24v also bought
prev
next
Universal 400C Series™ 24 V Onboard Air Compressor by Viair®. 400C is a 33% duty cycle compressor that works quickly and efficiently putting out 2.33 CFM/24V flow at zero PSI head pressure. Features include a standard 1/4” NPT stainless steel braided leader hose with inline check valve and insulated wiring for simple installation.
Notes:
- Use thread sealant for proper installation
- Thread tape is not recommended
- Properly sealed, recommended torque for 1/8" is 10 ~ 11 ft. lbs. Recommended torque for 1/4" and 3/8" is 16 ~ 18 ft. lbs
Specifications:
- Voltage: 24 V
- Motor: Permanent Magnetic
- Duty Cycle: 33% @ 100 psi
- Max. Working Pressure: 150 psi
- Max. Air Tank Size: 5 gal
- Max. Amp Draw: 15 A
- Ingress Protection Rating: IP67
- Dimensions (L x W x H): 9" x 4" x 6.75"
- Weight: 8.65 lbs
Features:
- Specially made for your tire repair and maintenance
- Manufactured from quality materials to the highest standards
- Built to withstand the test of time
- Easy-to-use product at a fair price
- Designed to help to get your job done right
- Manufactured utilizing the highest quality materials
- Built to provide exceptional levels of durability

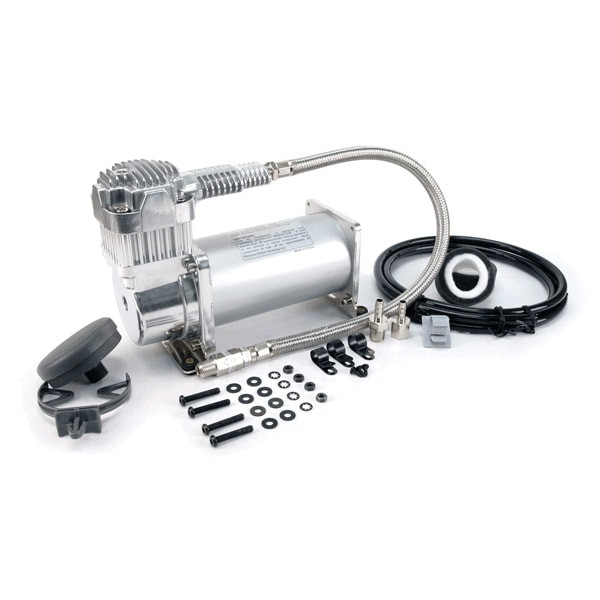

Includes:
- Air Compressor
- Thermal Overload Protector
- Check Valve
- Vibration Isolators
- Mounting Hardware
- Stainless Steel Braided Leader Hose
- Air Line for Remote Mount Air Filter
- Remote Mount Air Filter Assembly
- 2 Pieces Replacement Air Filter Elements
- Installation Instructions
Viair 40052 Air Compressor Kit C Series 24v - Features
| Brand | Viair |
| Type | Onboard compressors |
| PSI / CFM | 150 PSI / 2.33 CFM |
| CFM | 2,33 |
| l/min | 66 |
| Voltage | 24v |
| Series | C Series |
| Auto | ALL |
| Box Weight | 9 lbs |
