Superlift K180B Suspension Lift Kit 6.5" Chevrolet Silverado 1500/GMC Sierra 1500 07-16 (Bilstein Shocks)

Product Fits These Vehicles

2007-2016 Chevrolet Silverado 1500

2007-2016 GMC Sierra 1500

This is a complete knuckle style, strut spacer suspension lift kit for the Chevy/GMC 2WD or 4WD (depending on application) – with OE Cast Steel upper control arms

Provides 6.5” lift height

Includes rear fabricated blocks that remove the factory block and rear Superlift shock absorbers or rear 5100 Series Bilstein shock absorbers or Rear Fox® 2.0 Shocks

What does it include?

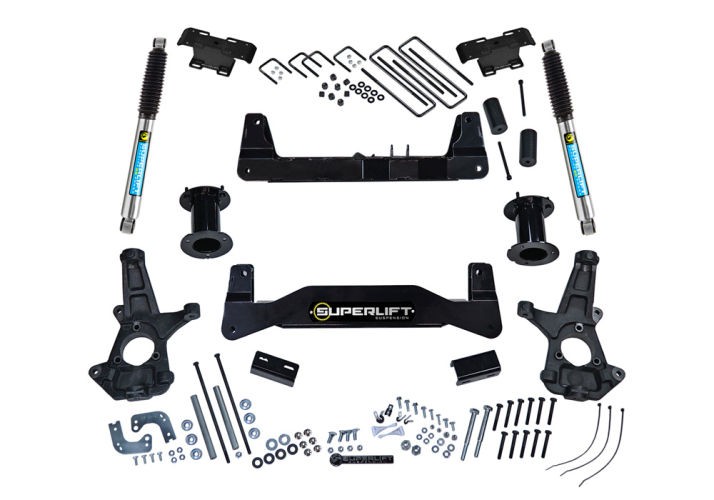

All brackets, cross-members, steering knuckles, strut spacers, rear block and u-bolt kit, shocks and hardware specific to the 2007-2016 Chevrolet Silverado or GMC Sierra 1500

Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift Suspension Systems now available with Superlift, Bilstein 5100 or Fox® 2.0 Shocks:

Superlift’s true to the height 6.5 inch lift kit for the 2007-2016 Chevrolet Silverado or GMC Sierra 1500 2WD is a great way to add height to your overall GM 1500 appearance. Superlift’s Shock options now include Superlift shocks, Bilstein 5100 Series Shocks or Fox® Performance Series 2.0 IFP Shocks.  This allows you to select your ride.  Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.  This 6.5 inch Lift kit for the GM 1500 2WD Pickup is a complete replacement knuckle kit.

Superlift’s geometry, from steering timing and linkage angles to driveshaft and CV axle operating angles, yields optimal component service life and exceptional drivability. Our Lower Control arm cross-members are true to their height and are a one-piece, full-width, high-clearance design made of .25” steel plate.

This kit includes front knuckles, front strut spacers, cross-members, a rear block and u-bolt kit and rear Shocks – Superlift, Bilstein, or Fox Shocks. All require parts are included to make sure your Silverado or Sierra handles and performance in all conditions.

Features:

True to the height Lift Kit at 6.5 Inches

Allows for use of 20” Factory Wheels

Direct bolt-on (No Weld Design)

Adds clearance for up to 35” tires

Rear – Superlift Shocks OR Bilstein® 5100 Series Shocks OR Fox® Performance Series 2.0 IFP Shocks

Benefits:

Retains OEM caster and camber alignment specifications

Maintains ride quality and handling characteristics

Aligns to OEM Specifications

Designed using Original Equipment (OE) CAD data for accuracy

Corrects Front to rear Factory rake for a more level stance

NOTES:

Not recommended for AWD models

Does not fit models with Auto Ride or Auto leveling

Only fits models with Cast Steel Control Arms

Tire        Wheel   Backspacing        Offset

35 X 12.5              18 x 9    4.3          -6

35 X 12.5              20 X 9    -              +12 to +18

305/65 R18         18 x 9    -              +12 to +18

305/55 R20         20 X 9    -              +12 to +18

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers` wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

TIRE & WHEEL INFO

Tire        Wheel   Backspacing        Offset

35 X 12.5              18 x 9    4.3          -6

35 X 12.5              20 X 9    -              +12 to +18

305/65 R18         18 x 9    -              +12 to +18

305/55 R20         20 X 9    -              +12 to +18

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers` wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
