Superlift K126 Suspension Lift Kit 4.5" Ford F-150 15-20 (Shadow Shocks)

Superlift Suspension Systems now available in Superlift, Bilstein, Fox Shocks or King Shocks:

Superlift’s 4.5 Inch Lift kit for the 2015-2020 Ford F-150 now features a variety of shock options, from Superlift Shocks to Bilstein 5100 Series Shocks to Fox® performance series 2.0 IFP shocks. This shock variety will allow you find your ride quality.  Superlift Suspension intentionally over-builds our suspension kits to be the best. Our uniquely engineered design adds strength and durability and has bonus features that others do not offer.

This is a complete replacement knuckle style suspension lift kit that provides 4.5 inches of lift and includes fabricated rear blocks and shocks  All required parts are included to make sure your Ford F-150 handles and performs just like a stock truck!

Features:

Replacement Knuckle style suspension lift kit

Direct bolt-on (No Weld Design)

Allows the use of 18” or larger factory wheels

Allows clearance for up to 33” tires

Aligns to OEM Specifications

Rear Superlit | Bilstein | Fox® shocks | King Shocks (K126KG)

Benefits:

Aligns to OEM Specifications

Maintains ride quality and handling characteristics

Corrects Front to Rear factory rake

Retains OEM Track Width

Designed using Original Equipment (OE) CAD data for accuracy.

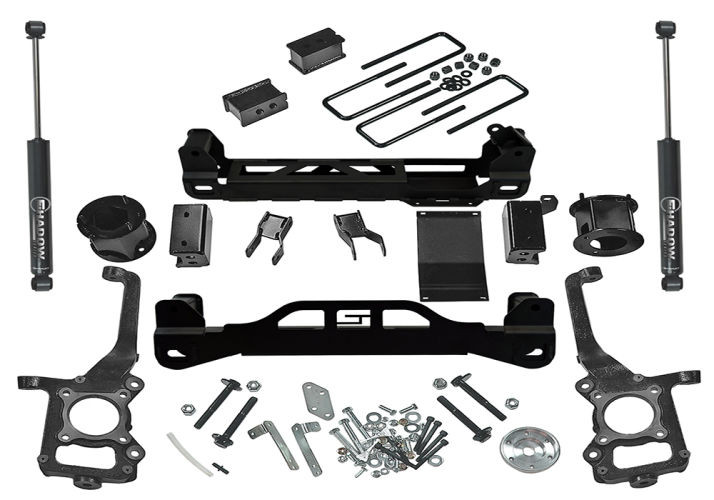

Front:

CNC Machined extended ductile iron steering knuckles

CNC machined billet aluminum driveshaft spacer

All fabricated steel components are laser cut, CNC formed finish with a durable powder coating

Front top mount strut spacers

One-piece front and rear cross members

Front differential skid plate

Sway-bar relocation brackets

Differential relocation brackets

Brake line relocation brackets

Eccentric cam-bolts

Rear:

Fabricated rear Blocks – provides proper pinion angle to eliminate axle wrap and driveline vibrations

Brake line relocation brackets

U-bolts and hardware

Compression stop extensions

Superlift Shocks or Bilstein® 5100 Series or Fox® Performance Series 2.0 Shocks (2 shocks) or King Shocks (FRONT AND REAR KING)

Notes:

Does not fit Single Cab Truck models

Models equipped with a two-piece rear driveshaft will need to order an additional kit box 9935 for the carrier bearing shims

TIRE & WHEEL INFO

Tire        Wheel   Backspacing        Offset

33 x 12.5              18 x 9    4.5          -

33 x 12.5              18 x 9    5.3          19

33 x 12.5              20 x 9    4.5          -

33 x 12.5              20 x 9    5.5          25

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers` wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
