Superlift K1014 Suspension Lift Kit 3.5" Ford Ranger 19-22 (Shadow Shocks)

Product Fits These Vehicles

2019-2022 Ford Ranger 4WD

This is a complete 3.5” lift kit for the 2019-2022 Ford Ranger 4WD

Provides 3.5” lift height

What does it include?

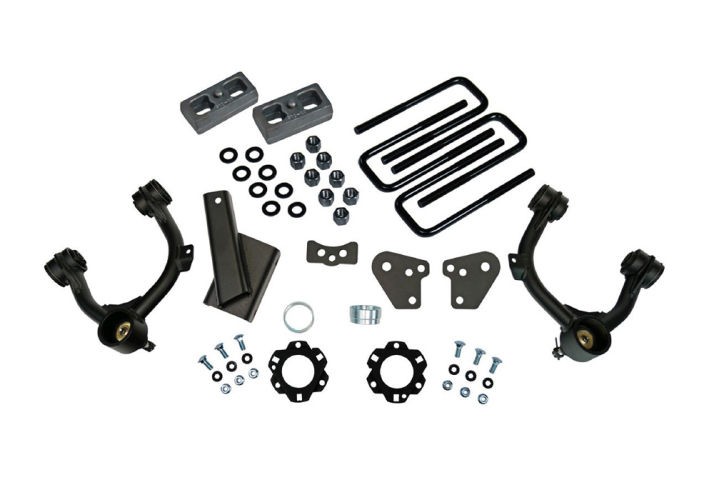

Replacement Front upper control arms, pre-load spacer, strut spacers, rear shocks, differential spacers, and rear block kit

Detailed instruction manual walking you step-by-step through the leveling kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

Superlift’s 3.5-inch UCA Lift kit for the 2019-2022 Ford Ranger 4WD is a simple solution for adding more height than just a “leveling kit”. These kits have a strong, modern die-formed design constructed of DOM tubing, beefy gussets and include CNC machined ball joint cup. The UCAs include a pre-installed MOOG® ball joint and bushings for long lasting performance and durability. By using the UCAs, this lift offers a better ride quality and performance over taller leveling spacers.

This kit also includes a differential drop spacers, rear block kit, and rear Shadow Series Shocks. All parts are included to make sure your Ford Ranger handle and performs just like a stock truck.

Superlift’s 3.5-inch Ford Ranger Lift kit is an installer friendly and is backed by a lifetime warranty and Lift Force supplemental powertrain warranty.

Features:

A simple and Super-EZ bolt-on installation

UCA’s include pre-installed MOOG® ball joints and bushings

CNC machined ball joint socket and bushing eye ring for precise fit.

UCA’s include pre-installed MOOG® ball joints and bushings for ease of installation

Front lift is achieved with combination of Pre-load ring and Strut Spacers (3.5 Inch)

Rear lift is achieved with a Block, U-Bolt (1.5 Inch)

Backed by our Limited Lifetime Warranty and LIFT FORCE warranty

Benefits:

Increased Ground Clearance

No drilling of the OEM steering knuckle

OE Like Ride Quality

Levels front to rear of the vehicle

TIRE & WHEEL INFO

Tire        Wheel   Backspacing        Offset

285/70R17           17x9       -              Stock

285/65R18           18x9       -              Stock

285/55R20           20x9       -              +30MM

Due to actual manufacturing dimensions and inflated measurements, tire and wheel combinations must be test fit prior to installation

Installation Time: 4 hour

Difficulty Level: 3 of 5

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers` wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
