Superlift K1012 Suspension Lift Kit 3" Toyota Tacoma/Tacoma SR 05-22 (Shadow Shocks)

Product Fits These Vehicles

2005-2015 Toyota Tacoma Base

2016-2022 Toyota Tacoma Limited

2005-2015 Toyota Tacoma Pre Runner

2016-2022 Toyota Tacoma SR

2016-2022 Toyota Tacoma SR5

2016-2022 Toyota Tacoma TRD Off-Road

2016-2022 Toyota Tacoma TRD Sport

2005-2013 Toyota Tacoma X-Runner

This is a complete 3” lift kit for the 2005-2022 Toyota Tacoma (will NOT fit 2WD with 5-lug wheels)

This kit lifts the front 3 inches and 1.5 inches in the rear

Covered by our Limited Lifetime Warranty

What does it include?

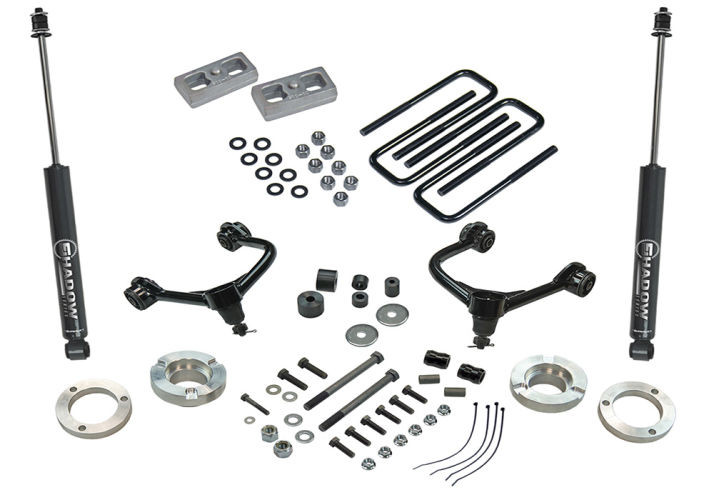

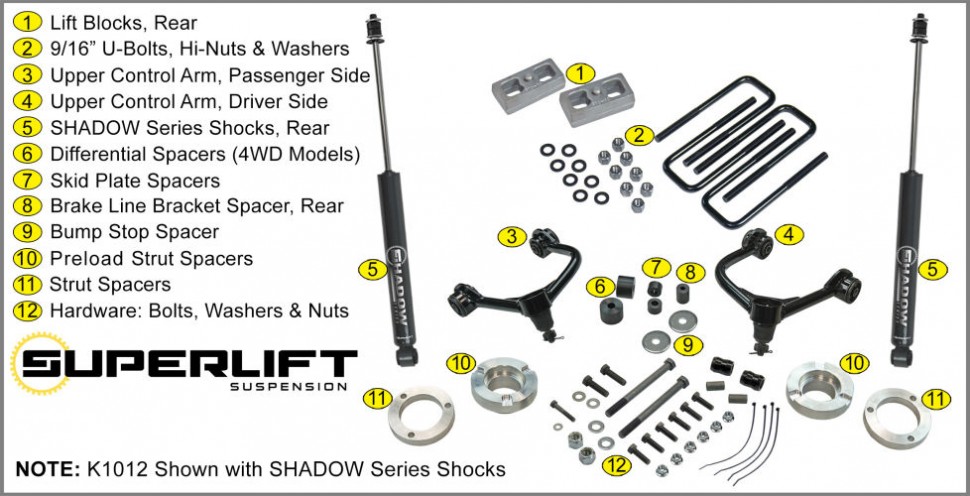

Upper control arms (UCA), front strut spacers, differential spacers, sway bar spacers, Rear Superlift Shadow Shocks or Front and Rear King Shocks along with rear blocks & u-bolts

Detailed instruction manual walking you step-by-step through the lift kit installation procedures suitable for do-it-yourselfers (DIY) or professional installation

The best customer service and technical help in the industry

3-inch Lift Kit - 2005-2022 Toyota Tacoma 2WD & 4WD excluding TRD Pro Model Only

Take your Toyota Tacoma to a whole new level with the Superlift UCA 3-inch lift kit for the 2005-2022 Toyota Tacoma which is simple solution for adding more height than a “leveling kit”. Superlift’s Upper Control Arm (UCA) Lift Kits have a strong, modern die-formed design constructed of solid steel rod, beefy gussets and include a flat mount ball joint cup along with rear Superlift Shadow Shocks or King Shocks- Front Coil-over with Reservoir and Rear 2.5 with Reservoir shocks.

Superlift Suspension intentionally over-builds our suspension kits to be the best. The uniquely engineered design adds strength and durability and has bonus features that others do not offer. Superlift’s Toyota UCA kit includes pre-installed MOOG ball joints and bushings for long lasting performance. By using the new upper control arm arms, this lift kit offers a better ride quality and performance over traditional leveling kits.

This kit also includes all necessary suspension components and all required parts are included to make sure your Tacoma handles and performs just like a stock truck!

Features:

A simple and Super-EZ bolt-on installation

UCA’s include pre-installed MOOG® ball joints and bushings

CNC machined ball joint socket and bushing eye ring for precise fit

Differential spacers maintain proper CV axle angles

Rear lift is achieved with Block & U-bolt Kit & Shocks

Available in Shadow Shocks or King Shocks

Adds clearance for up to 33” tires

Fits 2WD and 4WD

Backed by our Limited Lifetime Warranty

Now backed by LIFT FORCE WARRANTY – a supplemental powertrain warranty

Benefits:

UCA Kits are assembled with MOOG® ball joints that provide great durability & articulation; and the serviceable design enables lubrication for longer life.

UCA Kits are assembled with MOOG® control arm bushings to maintain OE ride performance and durability.

Retains OEM caster and camber alignment specifications

Truck can be returned back to stock with no issues

No excessive ball joint or steering components

Technical Notes

Does not fit TRD Pro Models

Some minor trimming may be required in order to clear some 33” tires

Do Not combine with any other suspension lift

Differential drop components will not be required on 2WD models

TIRE & WHEEL INFO

Tire        Wheel   Backspacing        Offset

265/70 R17         Factory 17           Stock     Stock

33x11.50 R17     17 x 8    4.5

285/70 R17         17 x 9    4.5          Plus 6

295/65 R 18        18 x 9    4.75-5    Plus 6

33x12.50 R 18    18 x 9    4.75-5    Plus 6

33x12.50 R 20    20 x 9    4.75-5    Plus 6

285/60 R 20        20 x 9    4.75-5    Plus 6

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate. Actual dimensions of a given tire size can vary considerably from one brand to another. Manufacturers` wheel offset and backspacing measurement points are not always consistent. Backspacing greatly impacts tire-to-fender clearance when turning. Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent. Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.
