JKS JSPEC113K J-Konnect Suspension Lift Kit 3.5" W/Jspec Shocks Jeep Wrangler JK 07-18 4Door

Name: JKS JSPEC113K J-Konnect Suspension Lift Kit 3.5" W/Jspec Shocks Jeep Wrangler JK 07-18 4Door
Brand: JKS Manufacturing
SKU: JSPEC113K

+18
points

Note	Rubicon sway bar link hardware included in kit
Note	2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
Shocks	Jspec
Series	J-Konnect
Lift Height, inch	3.5"
Submodel	4 Door
Brand	JKS Manufacturing

show all features

Description

Upgrade your Jeep® Wrangler JK 4 Door with a J-Konnect 3.5" suspension system to fit larger tires and increase off road capabilities. The J-Konnect kit includes dual rate coil springs, tuned gas shocks, adjustable front track bar, J-Link lower control arms, and sway bar Quicker Disconnects. While the entry level J-Venture systems is designed for equal parts on-road handling and off-road capability, J-Konnect takes strength and performance a step further by adding front and rear fixed length J-Link lower control arms. These lower control arms not only add front caster and rear wheelbase, they are a serious upgrade to the strength over the factory control arms. Built 2” x .250-wall DOM tubing while offering better NVH isolation with large factory style rubber bushings at both ends. The end result is aggressive off-road performance and strength while maintaining excellent on-road manners. Get connected with J-Konnect.

Features

Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
Front+Rear Gas Shocks (JSPEC or FOX) specifically valved for this suspension system for improved performance on and off-road.
Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
Front+Rear J-Link Lower Control Arms for improved strength and caster correction.
Front+Rear Track Bar Support Braces to improve strength and protection.
HD Drag Link Flip Kit w/ Track Bar Bracket to improve steering angles for better handling.
Front+Rear Bump Stop Extensions to properly limit suspension up travel.

Tires

Tire: 35x12.50

Wheel: 16x8, 17x9, 20x9

Backspacing: 4.5"

Other tire/wheel sizes can be used, however may require additional modifications.

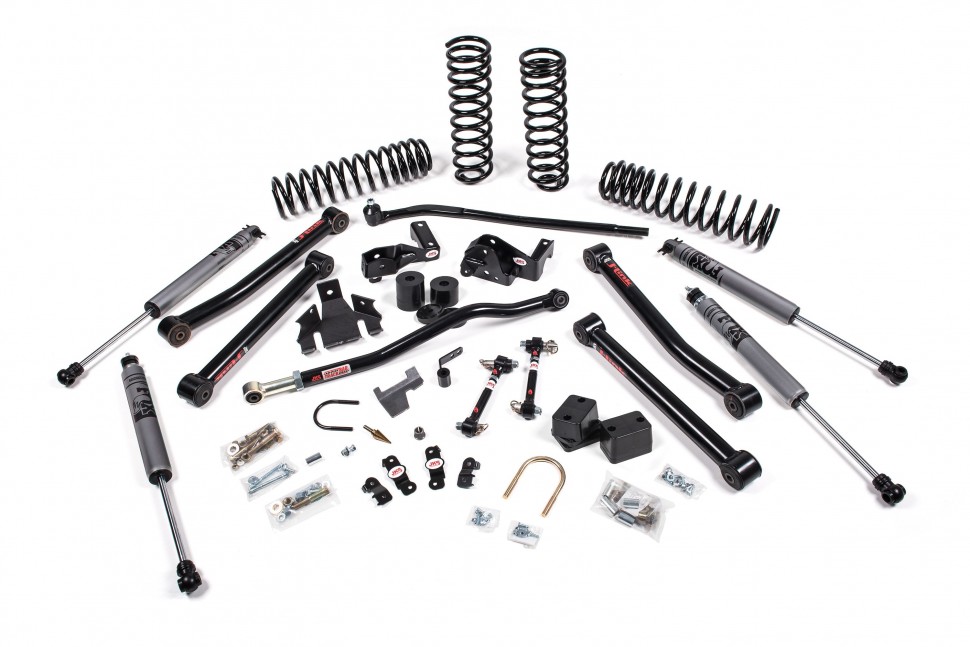

Kit

In the box for JSPEC113K:

JSPEC2350(x1): 07-18 JK 4Dr 3.5" Coil Box Kit
JSPEC2353(x1): 07-18 Jeep JK J Kontrol Box Kit
JSPEC2451(x1): 07-18 JK Advanced Link Upgrade Kit
JSPEC9301(x2): JSPEC- 25.20 x 15.20 x 2-3/8 - S50/EB2
JSPEC9309(x2): JSPEC- 25.95 x 15.40 x 2 - BP18/EB1

JKS JSPEC113K J-Konnect Suspension Lift Kit 3.5" W/Jspec Shocks Jeep Wrangler JK 07-18 4Door - Features

Note	Rubicon sway bar link hardware included in kit
Note	2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
Shocks	Jspec
Series	J-Konnect
Lift Height, inch	3.5"
Submodel	4 Door
Brand	JKS Manufacturing
Box Weight	0 kg
Box Length	0 m
Box Width	0 m
Box Height	0 m
Fitment Show all	2007\|\|Jeep\|\|Wrangler JK, 2008\|\|Jeep\|\|Wrangler JK, 2009\|\|Jeep\|\|Wrangler JK, 2010\|\|Jeep\|\|Wrangler JK, 2011\|\|Jeep\|\|Wrangler JK, 2012\|\|Jeep\|\|Wrangler JK, 2013\|\|Jeep\|\|Wrangler JK, 2014\|\|Jeep\|\|Wrangler JK, 2015\|\|Jeep\|\|Wrangler JK, 2016\|\|Jeep\|\|Wrangler JK, 2017\|\|Jeep\|\|Wrangler JK, 2018\|\|Jeep\|\|Wrangler JK
