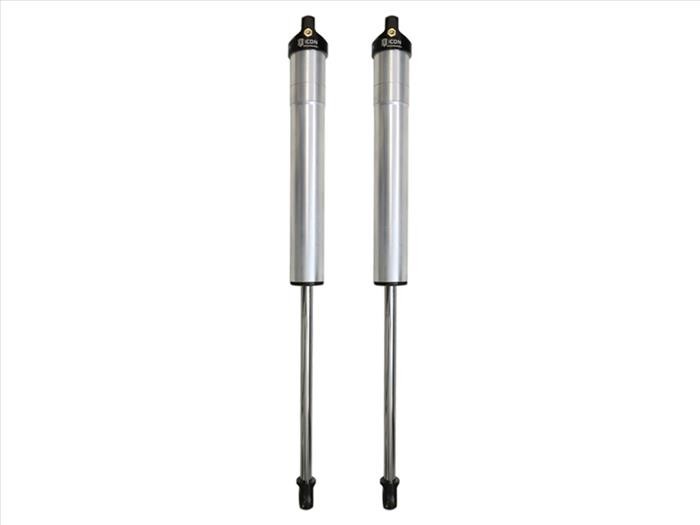

ICON 97602P-CB Rear Shock Pair IR 6" Ford F-150 09-14

+8
points

Series	2.5 Internal Reservoir
Installation side	Rear
Lift Height, inch	6"
Brand	Icon Vehicle Dynamics
Box Weight	30 lbs
Auto Show all	2009\|\|Ford\|\|F-150 2010\|\|Ford\|\|F-150 2011\|\|Ford\|\|F-150 2012\|\|Ford\|\|F-150 2013\|\|Ford\|\|F-150 2014\|\|Ford\|\|F-150
Shock Type	Monotube
Type Adjusters	Non Adjustable

show all features

overview

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

features & Benefits

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with internal reservoir
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
100% Rebuildable
100% Revalveable

ICON 97602P-CB Rear Shock Pair IR 6" Ford F-150 09-14 - Features

Series	2.5 Internal Reservoir
Installation side	Rear
Lift Height, inch	6"
Brand	Icon Vehicle Dynamics
Box Weight	30 lbs
Auto Show all	2009\|\|Ford\|\|F-150 2010\|\|Ford\|\|F-150 2011\|\|Ford\|\|F-150 2012\|\|Ford\|\|F-150 2013\|\|Ford\|\|F-150 2014\|\|Ford\|\|F-150
Shock Type	Monotube
Type Adjusters	Non Adjustable
