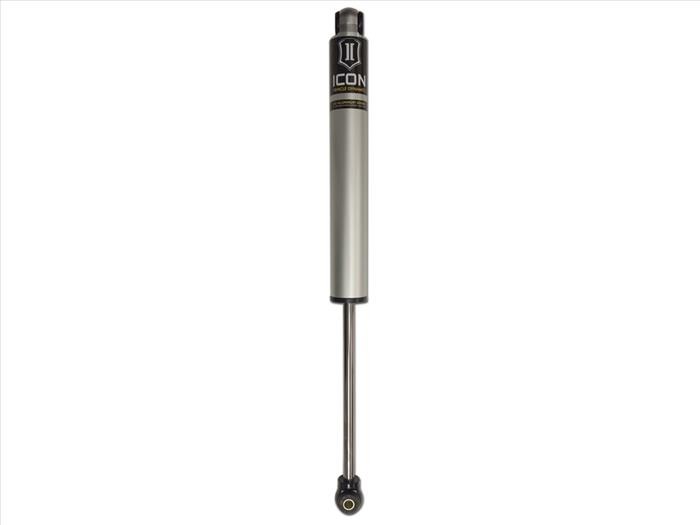

ICON 86534 Rear Shock IR 0-1.5" Nissan Titan 04-15

Name: ICON 86534 Rear Shock IR 0-1.5" Nissan Titan 04-15
Brand: Icon Vehicle Dynamics
SKU: 86534

+1
points

Brand	Icon Vehicle Dynamics
Series	2.0 Internal Reservoir
Shock Type	Monotube
Installation side	Rear
Lift Height, inch	0-1.5"
Type Adjusters	Non Adjustable
Box Height	6.4 in
Box Width	6.5 in

show all features

overview

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

features & Benefits

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with internal reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable
100% revalveable
