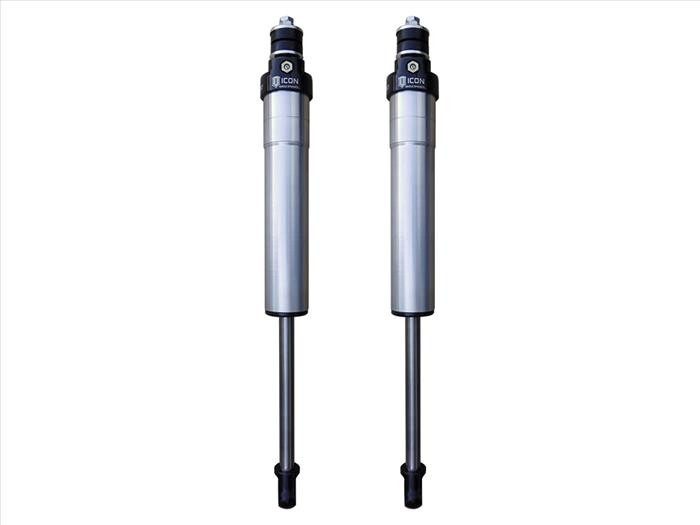

ICON 67620P Front Shock Pair IR 7" Ford F-250/F-350 05-22 4WD

+7
points

Series	2.5 Internal Reservoir
Installation side	Front
Lift Height, inch	7"
Submodel	4WD
Brand	Icon Vehicle Dynamics
Box Weight	23 lbs
Auto Show all	2008\|\|Ford\|\|F-250 2009\|\|Ford\|\|F-250 2010\|\|Ford\|\|F-250 2011\|\|Ford\|\|F-250 2012\|\|Ford\|\|F-250 2013\|\|Ford\|\|F-250 2014\|\|Ford\|\|F-250 2015\|\|Ford\|\|F-250 2016\|\|Ford\|\|F-250 2017\|\|Ford\|\|F-250 2018\|\|Ford\|\|F-250 2019\|\|Ford\|\|F-250 2020\|\|Ford\|\|F-250 2008\|\|Ford\|\|F-350 2009\|\|Ford\|\|F-350 2010\|\|Ford\|\|F-350 2011\|\|Ford\|\|F-350 2012\|\|Ford\|\|F-350 2013\|\|Ford\|\|F-350 2014\|\|Ford\|\|F-350 2015\|\|Ford\|\|F-350 2016\|\|Ford\|\|F-350 2017\|\|Ford\|\|F-350 2018\|\|Ford\|\|F-350 2019\|\|Ford\|\|F-350 2020\|\|Ford\|\|F-350 2021\|\|Ford\|\|F-250 2021\|\|Ford\|\|F-350 2007\|\|Ford\|\|F-250 2007\|\|Ford\|\|F-350 2006\|\|Ford\|\|F-250 2006\|\|Ford\|\|F-350 2005\|\|Ford\|\|F-250 2005\|\|Ford\|\|F-350 2022\|\|Ford\|\|F-250 2022\|\|Ford\|\|F-350

show all features

overview

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

features & Benefits

One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
Nitrogen charged monotube design with internal reservoir
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
6061 aircraft grade aluminum CNC machined components
PTFE lined spherical bearings and application specific mounting hardware
100% Revalveable
7/8” diameter induction hardened, chrome plated shock shaft
100% Rebuildable
Polyurethane bushings and forged steel mounting stems for OE factory type fitment

ICON 67620P Front Shock Pair IR 7" Ford F-250/F-350 05-22 4WD - Features

Series	2.5 Internal Reservoir
Installation side	Front
Lift Height, inch	7"
Submodel	4WD
Brand	Icon Vehicle Dynamics
Box Weight	23 lbs
Auto Show all	2008\|\|Ford\|\|F-250 2009\|\|Ford\|\|F-250 2010\|\|Ford\|\|F-250 2011\|\|Ford\|\|F-250 2012\|\|Ford\|\|F-250 2013\|\|Ford\|\|F-250 2014\|\|Ford\|\|F-250 2015\|\|Ford\|\|F-250 2016\|\|Ford\|\|F-250 2017\|\|Ford\|\|F-250 2018\|\|Ford\|\|F-250 2019\|\|Ford\|\|F-250 2020\|\|Ford\|\|F-250 2008\|\|Ford\|\|F-350 2009\|\|Ford\|\|F-350 2010\|\|Ford\|\|F-350 2011\|\|Ford\|\|F-350 2012\|\|Ford\|\|F-350 2013\|\|Ford\|\|F-350 2014\|\|Ford\|\|F-350 2015\|\|Ford\|\|F-350 2016\|\|Ford\|\|F-350 2017\|\|Ford\|\|F-350 2018\|\|Ford\|\|F-350 2019\|\|Ford\|\|F-350 2020\|\|Ford\|\|F-350 2021\|\|Ford\|\|F-250 2021\|\|Ford\|\|F-350 2007\|\|Ford\|\|F-250 2007\|\|Ford\|\|F-350 2006\|\|Ford\|\|F-250 2006\|\|Ford\|\|F-350 2005\|\|Ford\|\|F-250 2005\|\|Ford\|\|F-350 2022\|\|Ford\|\|F-250 2022\|\|Ford\|\|F-350
Shock Type	Monotube
Type Adjusters	Non Adjustable
