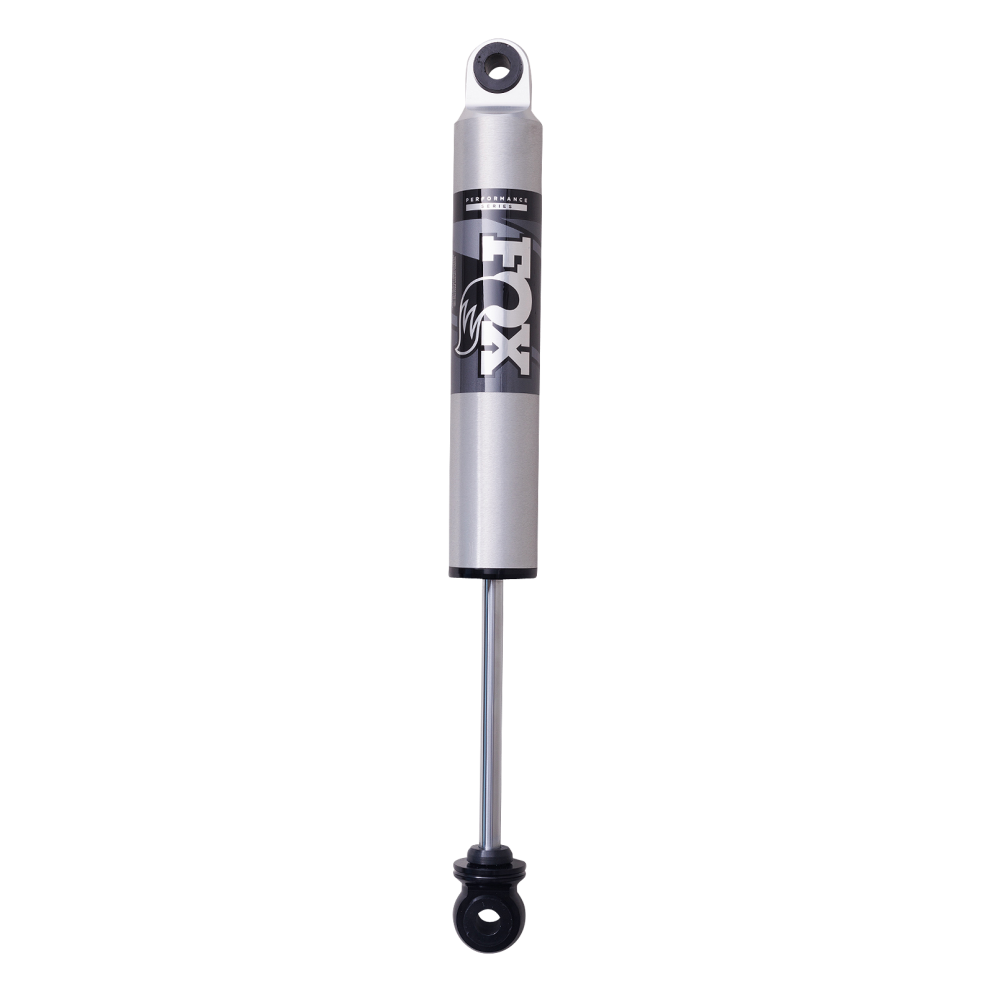

Fox Shocks 987-24-027 Performance Series HTO 2.5 Rear Shock Lift 0-1.5" Dodge Ram 3500 14-25

Name: Fox Shocks 987-24-027 Performance Series HTO 2.5 Rear Shock Lift 0-1.5" Dodge Ram 3500 14-25
Brand: Ridefox
SKU: 987-24-027

+3
points

Brand	Ridefox
Note	Fits Single and Dual Rear Wheels
Note	Compatible with Air Suspension Equipped Trucks
Series	Performance Series HTO 2.5
Shock Type	Smooth Body
Installation side	Rear
Lift Height, inch	0-1.5"
Type Adjusters	Non Adjustable

show all features

FOX 2.5 Performance Series HTO

The FOX 2.5 Performance Series HTO shock is a bolt-on, position-sensitive shock designed to improve on- and off-road performance. It features a durable, type II anodized aluminum body and larger pistons to increase damping capacity and ride comfort.

2.5-inch body with an internal floating piston (IFP) to separate shock oil from high-pressure nitrogen, optimizing damping.
Type II anodized aluminum construction for efficient heat dissipation and corrosion resistance.
Hydraulic Top Out (HTO) technology provides usable position-sensitive rebound control and reduces harsh top-outs.
Vehicle-specific valving and larger pistons for enhanced on- and off-road handling.

HTO forces shock oil through a secondary shim stack to slow shaft speed, increasing comfort and control—especially useful when running heavier, aggressive tires or lifted applications.

*Bolt-on installation; verify fitment for your specific vehicle and note that optimal performance is achieved when matched with the intended ride height and tire setup.

Fox Shocks 987-24-027 Performance Series HTO 2.5 Rear Shock Lift 0-1.5" Dodge Ram 3500 14-25 - Features

Brand	Ridefox
Note	Fits Single and Dual Rear Wheels
Note	Compatible with Air Suspension Equipped Trucks
Series	Performance Series HTO 2.5
Shock Type	Smooth Body
Installation side	Rear
Lift Height, inch	0-1.5"
Type Adjusters	Non Adjustable
Reservoir	No
Body Diameter (in)	2.5
Material	Aluminum
Compressed	17.39
Extended	26.48
Travel	9.09
Quantity	Single
Box Height	3.3 in
Box Width	3.4 in
Box Length	25 in
Box Weight	6.4 lbs
Fitment Show all	2014\|\|Dodge\|\|Ram 3500, 2015\|\|Dodge\|\|Ram 3500, 2016\|\|Dodge\|\|Ram 3500, 2017\|\|Dodge\|\|Ram 3500, 2018\|\|Dodge\|\|Ram 3500, 2019\|\|Dodge\|\|Ram 3500, 2020\|\|Dodge\|\|Ram 3500, 2021\|\|Dodge\|\|Ram 3500, 2021\|\|Ram\|\|3500, 2020\|\|Ram\|\|3500, 2019\|\|Ram\|\|3500, 2018\|\|Ram\|\|3500, 2017\|\|Ram\|\|3500, 2016\|\|Ram\|\|3500, 2015\|\|Ram\|\|3500, 2014\|\|Ram\|\|3500, 2022\|\|Dodge\|\|Ram 3500, 2022\|\|Ram\|\|3500, 2023\|\|Dodge\|\|Ram 3500, 2023\|\|Ram\|\|3500, 2024\|\|Dodge\|\|Ram 3500, 2024\|\|Ram\|\|3500, 2025\|\|Ram\|\|3500, 2025\|\|Dodge\|\|Ram 3500
