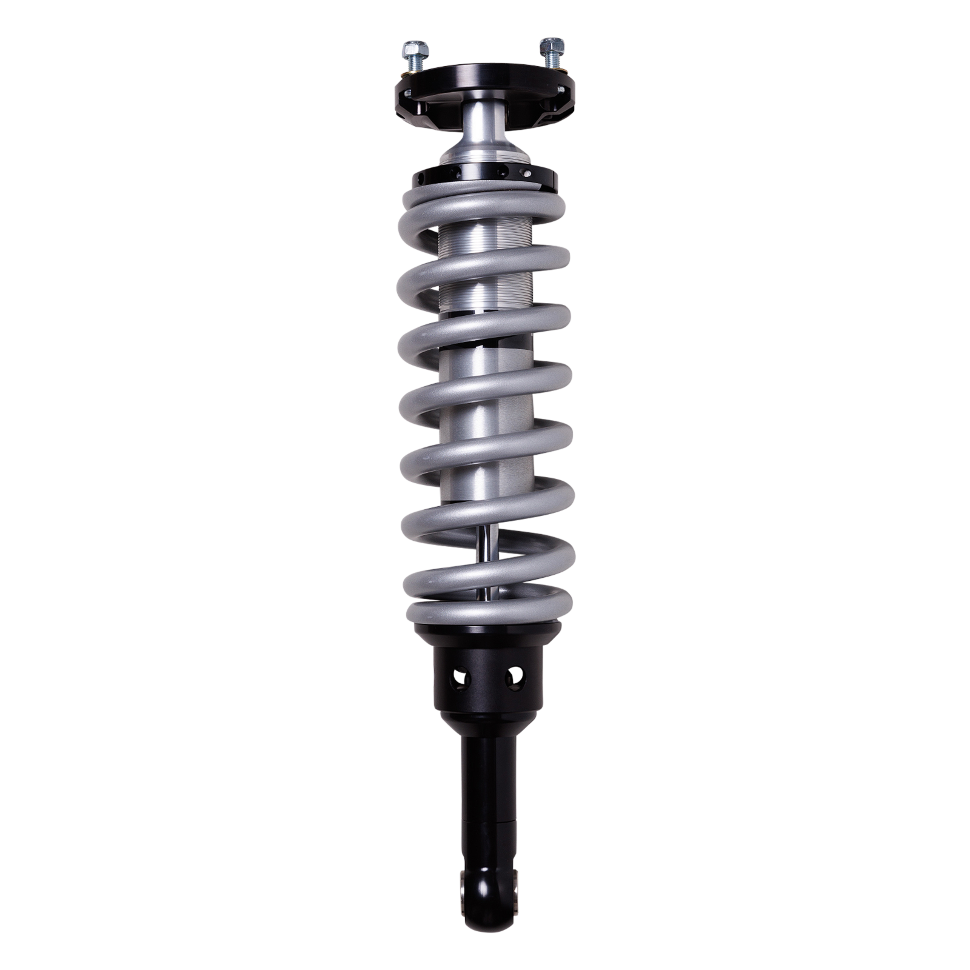

Fox Shocks 987-02-009 Performance Series HTO 2.5 Front Coilover Shock Lift 2-3" Toyota Hilux 16-24

Name: Fox Shocks 987-02-009 Performance Series HTO 2.5 Front Coilover Shock Lift 2-3" Toyota Hilux 16-24
Brand: Ridefox
SKU: 987-02-009

+7
points

Brand	Ridefox
Note	Requires Upper Control Arm
Series	Performance Series HTO 2.5
Shock Type	Coil-Over
Installation side	Front
Lift Height, inch	2-3"
Type Adjusters	Non Adjustable
Reservoir	No

show all features

FOX Performance Series 2.5 Shocks

Bolt-on performance shocks engineered to improve on- and off-road ride quality while maintaining OEM behavior and reliability.

Vehicle-specific valving and larger pistons for improved control and damping
2.5-inch monotube design with an Internal Floating Piston (IFP) to separate oil and high-pressure nitrogen for consistent performance
Type II anodized aluminum body for efficient heat dissipation and corrosion resistance
Increased damping capacity for a more comfortable ride without overstressing ball joints or linkages
Direct bolt-on fit designed to preserve OEM suspension behavior

*Compatibility/Installation: Compatible with Toyota Hilux; bolt-on installation. Follow vehicle-specific installation procedures and torque specifications.

Fox Shocks 987-02-009 Performance Series HTO 2.5 Front Coilover Shock Lift 2-3" Toyota Hilux 16-24 - Features

Brand	Ridefox
Note	Requires Upper Control Arm
Series	Performance Series HTO 2.5
Shock Type	Coil-Over
Installation side	Front
Lift Height, inch	2-3"
Type Adjusters	Non Adjustable
Reservoir	No
Body Diameter (in)	2.5
Material	Aluminum
Compressed	17.98
Extended	22.18
Travel	4.2
Quantity	Single
Box Height	6 in
Box Width	6.4 in
Box Length	28.9 in
Box Weight	21.8 lbs
Fitment Show all	2020\|\|Toyota\|\|Hilux, 2023\|\|Toyota\|\|Hilux, 2024\|\|Toyota\|\|Hilux, 2016\|\|Toyota\|\|Hilux, 2017\|\|Toyota\|\|Hilux, 2018\|\|Toyota\|\|Hilux, 2019\|\|Toyota\|\|Hilux, 2021\|\|Toyota\|\|Hilux, 2022\|\|Toyota\|\|Hilux
