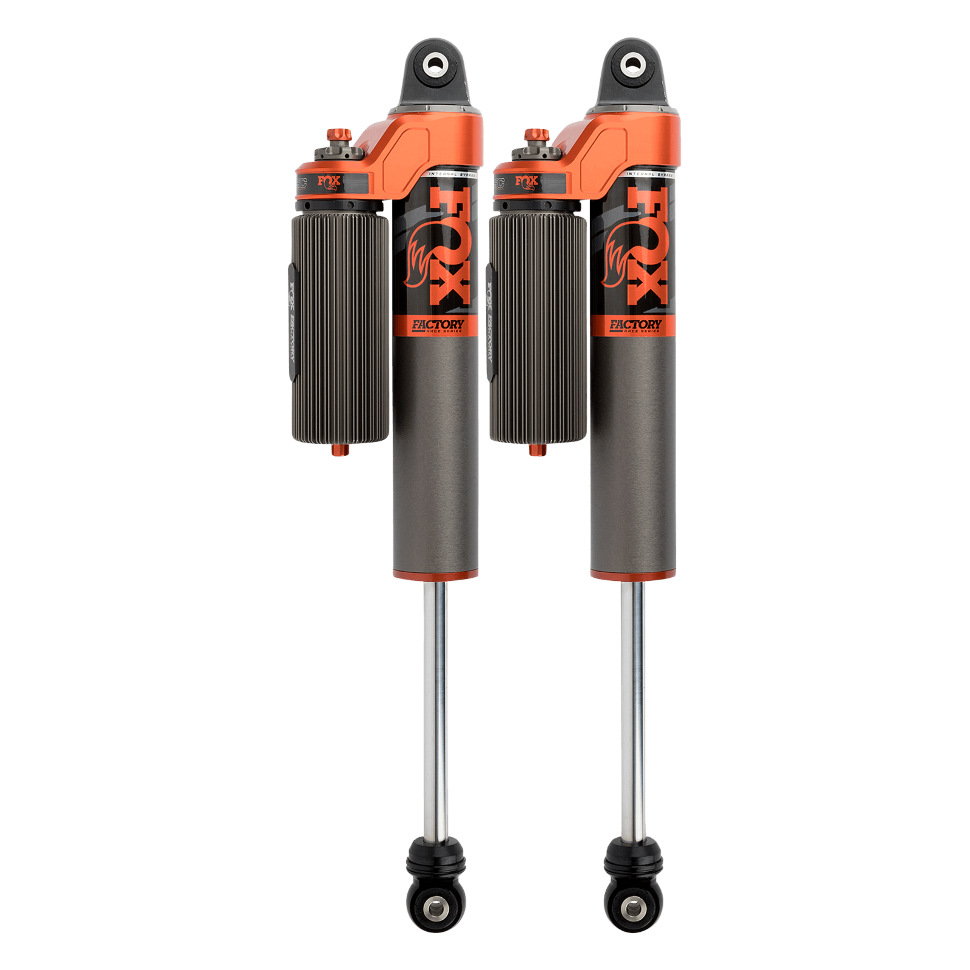

Fox Shocks 883-26-083 Factory Race Series 3.0 Rear Reservoir Adjustable Shock Lift 3.5-4.5" Jeep Gladiator JT 20-25 Pair

Name: Fox Shocks 883-26-083 Factory Race Series 3.0 Rear Reservoir Adjustable Shock Lift 3.5-4.5" Jeep Gladiator JT 20-25 Pair
Brand: Ridefox
SKU: 883-26-083

+31
points

Brand	Ridefox
Series	Factory Race Series 3.0
Shock Type	Smooth Body Internal Bypass
Installation side	Rear
Lift Height, inch	3.5-4.5"
Type Adjusters	Adjustable
Reservoir	Yes
Tank Type	Piggyback

show all features

Factory Race Series 3.0

The Factory Race Series 3.0 Internal Bypass shock delivers race-capable, position-sensitive damping in a straightforward bolt-on package. Its patented internal bypass design provides controlled fluid flow for a plush ride during normal travel while stepping up damping at the extremes to resist harsh bottom-outs and top-outs.

Position-sensitive internal bypass: Regulated ports allow fluid to bypass the piston through initial travel and route fluid through the piston at extreme compression and rebound.
Plush, predictable ride: Tuned to offer comfort over typical off-road terrain while increasing force where needed to control severe impacts.
Precision construction: Hard-anodized aluminum body with precision-machined components and race-bred internal valving for durability and consistent performance.
Heavy-duty piggyback: New piggyback bridge design optimized for Wrangler JL applications.

*Designed to bolt onto 3.5–4.5" aftermarket suspension lift kits using OEM shock pivots. Verify fitment for specific vehicle year and model before installation.

Fox Shocks 883-26-083 Factory Race Series 3.0 Rear Reservoir Adjustable Shock Lift 3.5-4.5" Jeep Gladiator JT 20-25 Pair - Features

Brand	Ridefox
Series	Factory Race Series 3.0
Shock Type	Smooth Body Internal Bypass
Installation side	Rear
Lift Height, inch	3.5-4.5"
Type Adjusters	Adjustable
Reservoir	Yes
Tank Type	Piggyback
Body Diameter (in)	3
Material	Aluminum
Compressed	18.93
Extended	28.34
Travel	9.41
Quantity	Pair
Box Height	11.9 in
Box Width	20.9 in
Box Length	39 in
Box Weight	45.6 lbs
UPCCode	711745590526
Fitment Show all	2020\|\|Jeep\|\|Gladiator JT, 2021\|\|Jeep\|\|Gladiator JT, 2022\|\|Jeep\|\|Gladiator JT, 2023\|\|Jeep\|\|Gladiator JT, 2024\|\|Jeep\|\|Gladiator JT, 2025\|\|Jeep\|\|Gladiator JT

Fox Shocks 883-26-083 Factory Race Series 3.0 Rear Reservoir Adjustable Shock Lift 3.5-4.5" Jeep Gladiator JT 20-25 Pair reviews

No reviews for this product. Be the first to leave feedback!

Loading account data

Limited Lifetime Warranty on 2.0 Performance Series (purchased after 3/30/2025)

FOX Factory guarantees to the original retail owner that each new FOX 2.0 Performance Series suspension product is free from defects in materials and workmanship. This warranty covers factory defects, excluding finish and coatings, under normal use on the vehicle type intended.

Limited One (1) Year Warranty on Suspension Products
FOX Factory warrants that each new FOX suspension product is free from defects for one year from the original purchase date from an authorized dealer or original equipment manufacturer. If law requires a longer period, that will apply.

Lifetime Warranty on Upper Control Arms
Lifetime warranty applies except for serviceable components (e.g., bearings, rod ends) and finishes, which have a 12-month warranty. Damage caused by misuse or abuse is excluded.

Important Notes
Certain noises such as squeaks or creaks may be normal. However, clunks or thuds should be inspected by a qualified mechanic.

Warranty Terms
Warranty applies only if the product is used under normal conditions and maintained properly. It is non-transferable and void if abused, modified, improperly repaired, or damaged by accident or misuse.

FOX Factory reserves the right to repair or replace defective products with comparable models at its sole discretion. This remedy is exclusive. Incidental, consequential, or punitive damages are excluded.

This warranty does not cover normal wear, malfunctions due to abuse or neglect, or damages from crashes or misuse.

You may have additional legal rights depending on jurisdiction. If a part of this warranty is invalidated by law, other provisions remain effective.

This is the sole and exclusive warranty by FOX Factory on its suspension products. Any implied warranties, including merchantability or fitness for a particular purpose, are excluded.
