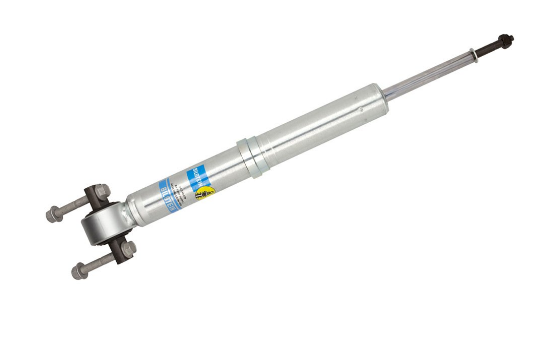

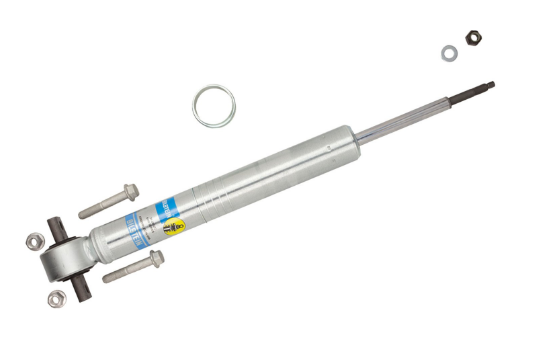

Bilstein 24-248129 Shock Absorber Ford F-150 15-20 RWD B8 5100 Series Ride Height Adjustable Front

Designed to level out the front of half-ton trucks and SUVs, the BILSTEIN B8 5100 Ride Height Adjustable is the perfect alternative to coil spring spacers.

Easy right height adjustment.

Lose no time on the trail – these shock absorbers use your vehicle‘s OEM coilover springs and mounting hardware for an easy, direct-fit installation.

5100 Series Lift Shocks

• - Available for 2in-6in Suspension lifts (some stock height applications also)
• - Specifically designed and manufactured for lifted pickups and SUV's
• - Monotube design for cooler, more efficient operation and longer life
• - 46mm piston diameter provides superior handling and performance
• - Patented digressive valving instantly reacts to changing surface conditions for maximum comfort and control on or off-road

5100 Series Ride Height Adjustable

Bilstein's ride height adjustable 5100 Series replacement shocks for coil-over design front suspension pickups utilize the vehicle's existing stock coil spring.

The 5100 Series (Ride Height Adjustable) shocks feature multiple snap-ring grooves on the body of the shock to accommodate different spring seat positions, allowing height adjustments from 0-3in (depending on application) By raising the spring seat position, the factory rake can be altered to achieve a level front to rear ride height.

Bilstein's patented digressive self-adjusting valving delivers improved damping control and a smooth ride on all road surfaces at any speed.

• - Zinc-plated bodies
• - Self-adjusting deflecting disc valving
• - High-flow piston reduces harshness
• - Independent rebound & Compression Tuning
• - Larger Working Piston Area for Exact Damping
• - Superior Control for Large Diameter Tires

The Bilstein Principle

All Bilstein gas pressure struts/inserts and gas pressure shock absorbers operate on the same principle. They are manufactured with the rod pointing down into the strut tube, thereby utilizing the thicker, stouter body portion of the shock absorber to dissipate side loads. Consequently, due to the increased diameter and surface of the pressure tube, the Bilstein gas pressure strut/insert or shock is better suited to take increased side loads when compared with the conventional version.

Additional advantages, based on development strongly influenced by the motorsport industry, include greater stability, better road handling, and accurate steering. This combined with extremely high quality manufacturing and materials, means Bilsteins will last approximately four times as long as Original Equipment.

Battling Heat Build Up

Conventional shocks trap the heat within the shock body and prevent adequate dissipation, making them prone to heat build up, fade and eventual failure.

Bilstein's patented design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.

The tube of a Bilstein gas pressure shock or strut is fabricated using a special extrusion method. This process achieves an extremely tight peak-to-valley tolerance and maintains consistent wall thickness. Bilstein's seamless monotube design provides superior tube strength while maximizing heat dissipation and shock life.

Ride Comfort and Performance Without Compromise

The piston head design allows independent tuning of the compression and rebound damping forces to provide optimum ride comfort and performance without compromise. It features fewer parts than most conventional designs. The product's simple, yet exceptionally functional digressive design contributes to the extreme durability and long life of Bilstein Shock Absorbers.

Better Built

Bilstein's shock bodies are precision formed through a unique seamless extrusion process. This provides superior strength along with high finish tolerances. The shock body is then treated with a special paint finish durable enough to withstand grueling 240-hour salt spray tests. The finished body is mated with a solid, induction-hardened steel chrome plated and polished shaft, machined valving components and highest quality seals.

Bilstein products are backed by an aftermarket lifetime warranty.

Bilstein 24-248129 Shock Absorber Ford F-150 15-20 RWD B8 5100 Series Ride Height Adjustable Front - Features
