Baja Designs 557803 Squadron Sport 3.07"x3.07" Driving Led Off-Road Light Pair

Buy Baja Designs 557803 Squadron Sport 3.07"x3.07" Driving Led Off-Road Light Pair
Price
$249.95
Item: 557803
Quantity
Universal product

This product fits all vehicles

(!)

Two is always better than one, right?  We think so, which is why we’re offering a pair of Squadron® Sport LED auxiliary lights with wiring harness for the price of $229.95.  Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies.  The Squadron® Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts per light, making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications (per light):
Lumens: 3,150 Utilizing 4 LEDs
Wattage/Amps: 26W / 2A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)


Please note that this light does include a harness though if you’re interested in an upgraded harness please look up part: 640117

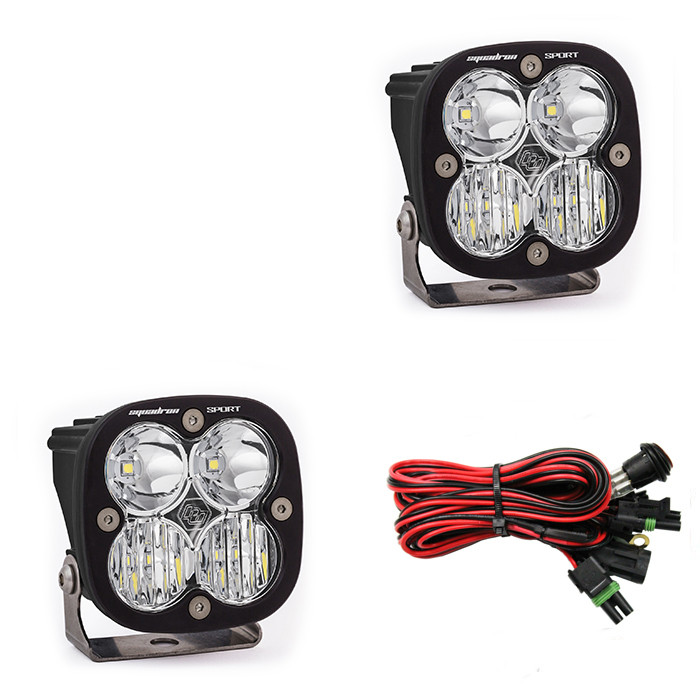

Includes:

  • (2) Squadron® Sport LED Lights
  • Mounting Brackets
  • Wiring Harness

 

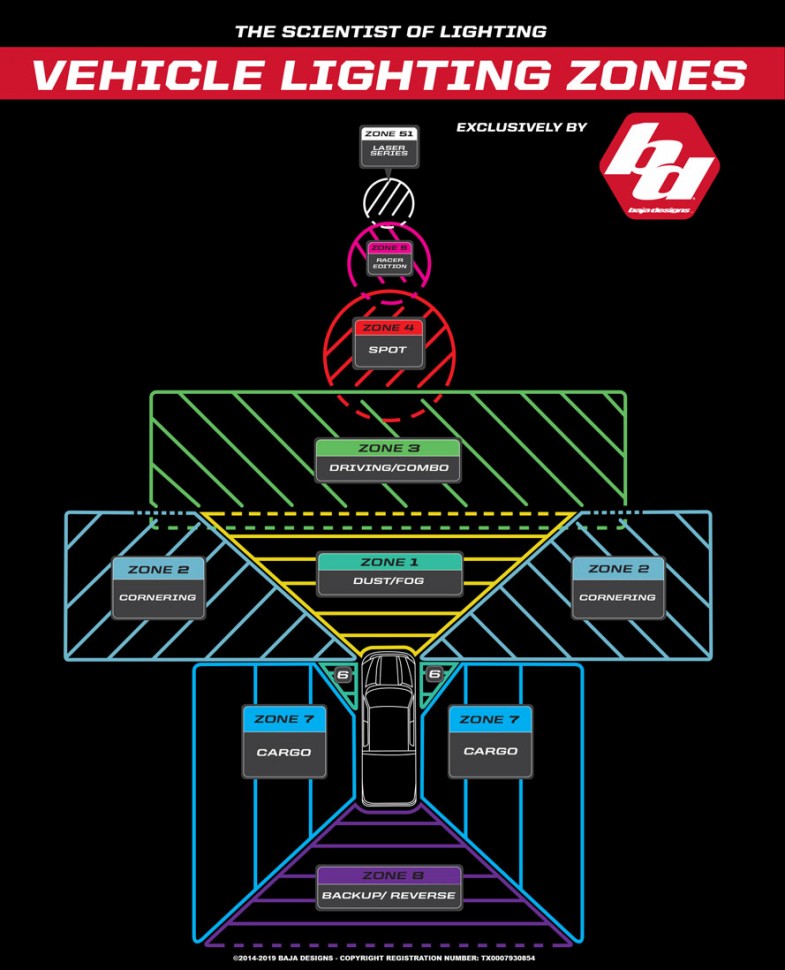

Patterns:

Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft.  This pattern is not suitable for driving. (Lighting Zone 7)



Baja Designs 557803 Squadron Sport 3.07"x3.07" Driving Led Off-Road Light Pair - Features

Quantity 2PC Set
Housing Material Aluminum
Light Color White
Mounting Style Surface Mount
Watts 26
Housing Black
Series Squadron Sport
Auto all
Brand Baja
Headlight type Square
Size 3.07 x 3.07"
Light pattern Driving
Lumens 3150
Box Height 8 in
Box Width 10 in
Box Length 10 in
Box Weight 5 lbs
