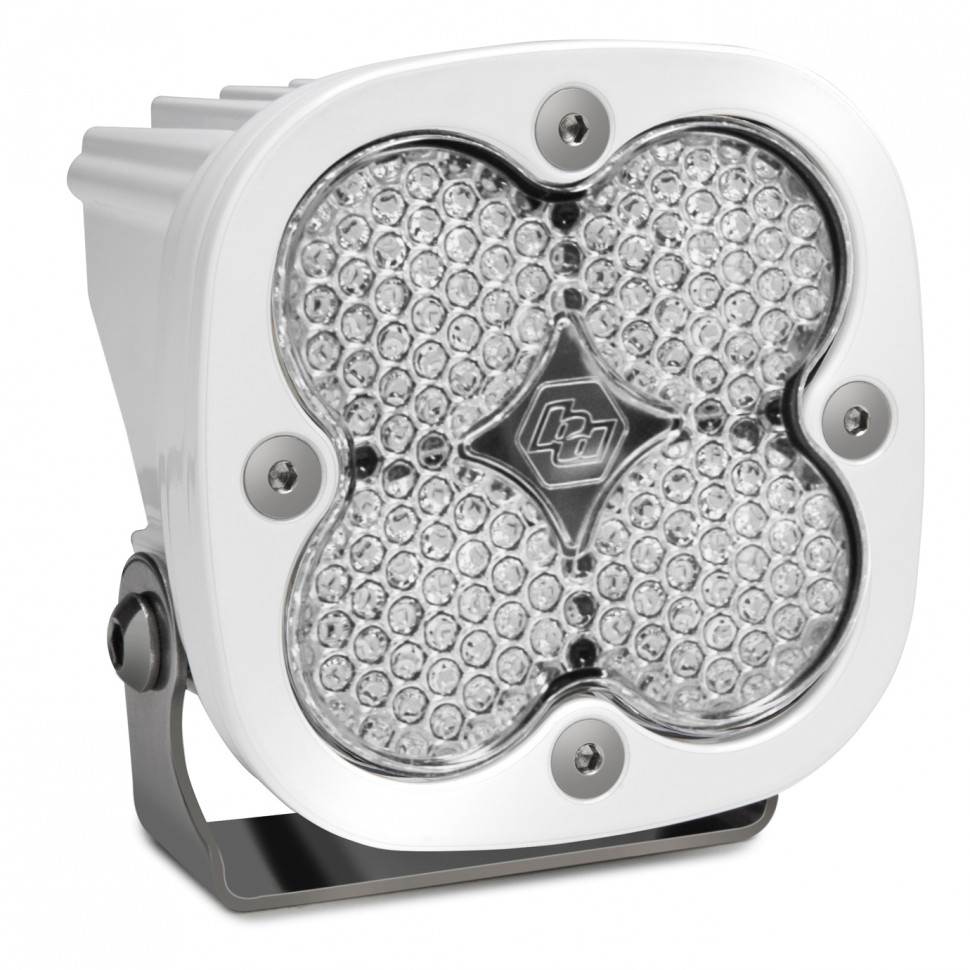

Baja Designs 550006WT Squadron Sport 3.07"x3.07" Work/Scene Led Off-Road Light

+1
points

Quantity	Single
Housing Material	Aluminum
Light Color	White
Mounting Style	Surface Mount
Watts	26
Housing	White
Series	Squadron Sport
Auto	ALL

show all features

(!)

Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies. The Squadron® Sport utilizes 4 LEDs producing an impressive 3,150 lumens at 26 watts making it ideal for near field, side/backup and scene lighting application. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Baja Designs Features:
Satisfactions Guarantee –30 Day Money Back
Guarantee
Limited Lifetime Warranty– Complete Purchase Protection
uService®– Replaceable Lenses And Optics
ClearView®– All The Light, Right Where You Need It.
MoistureBlock™– Waterproof, Rain Proof, Submersible
CopperDrive®– Only LED Driven At 100%
5000K Daylight– Less Driver Fatigue, Natural Color

Specifications:
Lumens:3,150 Utilizing 4 LEDs
Wattage/Amps:26W / 2A
Dimensions:3.07" x 2.77" x 3.07"
Weight:12 ounces
LED Life Expectancy:49,930 Hours
Front Lens:Hard Coated Polycarbonate
Housing:Powder Coated Cast Aluminum
Bezel:Billet Machined Aluminum
Hardware & Bracket Material:Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Please note that this light does NOT include a harness and the applicable harness to this light is 640117

Includes:

Squadron® Sport LED Light
Mounting Bracket

Patterns:

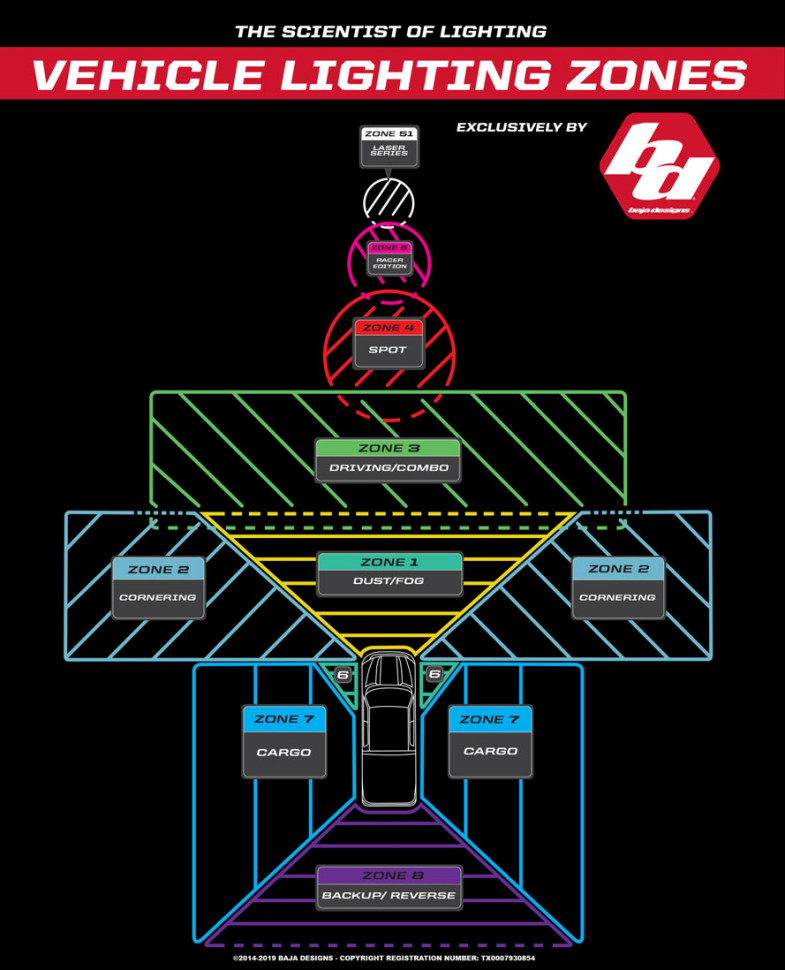

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering:BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot:A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene:Excellent work light or “scene light” with an extremely smooth120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
