Baja Designs 447740 XL Linkable Led Bar Ford F-150 Raptor 17-20

+18
points

Light Color	White
Watts	182
Series	XL Linkable
Note	This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.
Submodel	Raptor
Auto Show all	2017 Ford F-150 2018 Ford F-150 2019 Ford F-150 2020 Ford F-150
Brand	Baja
Headlight type	Light Bar

show all features

(PATENT PENDING)

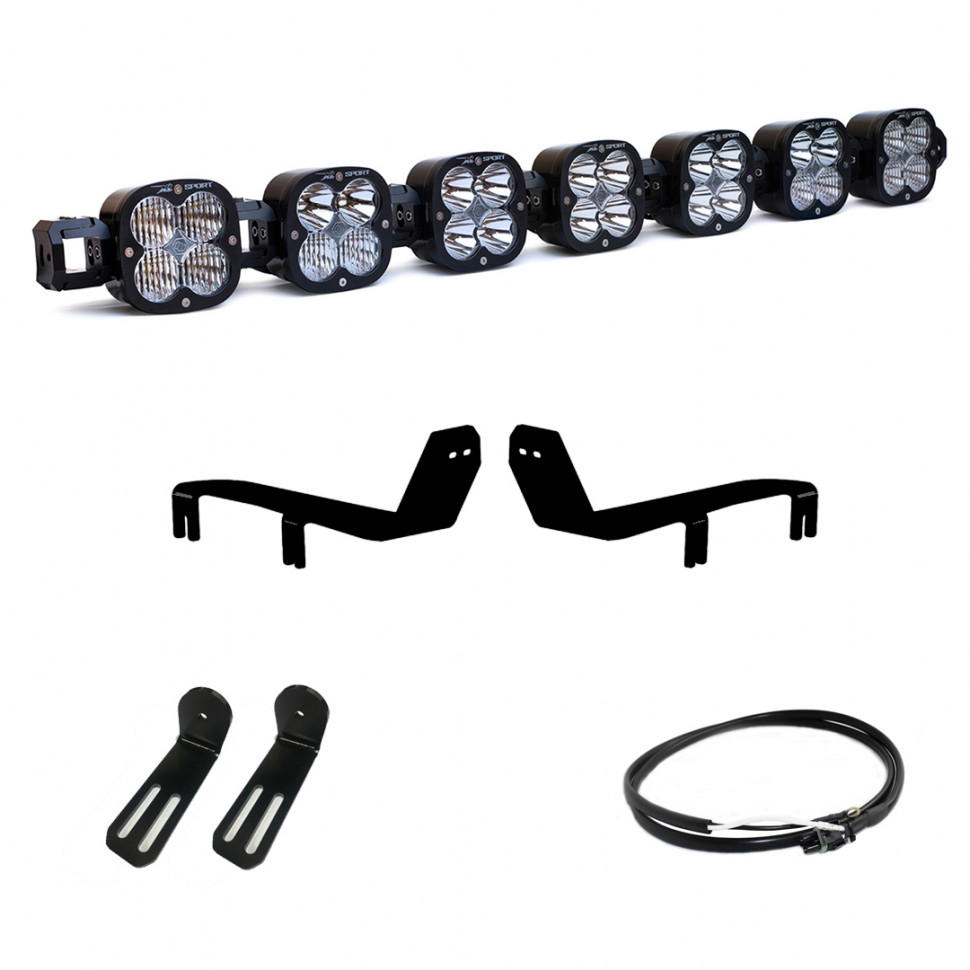

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit includes all the necessary components to outfit your 2017+ Ford Raptor with 7 XL Linkables. This kit is designed for the enthusiast who has a factory upfitter system in their truck or sPOD / Switch Pros unit.

Please Note: This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Lumens: 22,050 Utilizing 28 LEDs
Wattage/Amps: 182W / 14A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)

Includes:

x3 XL Sport Spot LED Light
x2 XL Sport Driving/Combo LED Light
x2 XL Sport Wide Cornering LED Light
x7 XL Sport Rock Guards
Support kit
Upfitter Harness
Super Duty Brackets

Application:

(2017- On) Ford Raptor

Adjustability:

Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Baja Designs 447740 XL Linkable Led Bar Ford F-150 Raptor 17-20 - Features

Light Color	White
Watts	182
Series	XL Linkable
Note	This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.
Submodel	Raptor
Auto Show all	2017 Ford F-150 2018 Ford F-150 2019 Ford F-150 2020 Ford F-150
Brand	Baja
Headlight type	Light Bar
Lumens	22050
Color	White
