Baja Designs 447732 XL Sport Linkable Led Bar Ford F-250/F-350 20-22
Product images
+18
points
points
| Light Color | White |
| Watts | 182 |
| Series | XL Linkable |
| Note | This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles. |
|
Auto
Show all |
2020||Ford||F-250 2020||Ford||F-350 2021||Ford||F-250 2021||Ford||F-350 2022||Ford||F-250 2022||Ford||F-350 |
| Brand | Baja |
| Headlight type | Light Bar |
| Lumens | 22050 |
(PATENT PENDING)
Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 7 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.
This kit includes all the necessary components to outfit your 2020+ Ford Superduty with 7 XL Linkables. The harness in this kit is a toggle switch style designed for the enthusiast who DOES NOT have the factory upfitters in their Superduty.
Please Note: This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles.
| Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color |
Specifications: Lumens: 22,050 Utilizing 28 LEDs Wattage/Amps: 182W / 14A LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof, Submersible to 9ft) IK10 Compliant (Mechanical Impact Testing) |
Includes:
- x3 XL Sport Spot LED Light
- x2 XL Sport Driving/Combo LED Light
- x2 XL Sport Wide Cornering LED Light
- x7 XL Sport Rock Guards
- Support Kit
- Standard Harness
- Super Duty Brackets
Application:
- (2020- On) Ford Superduty
Adjustability:
Patterns:

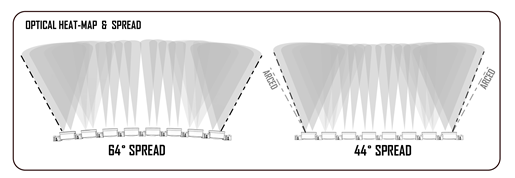

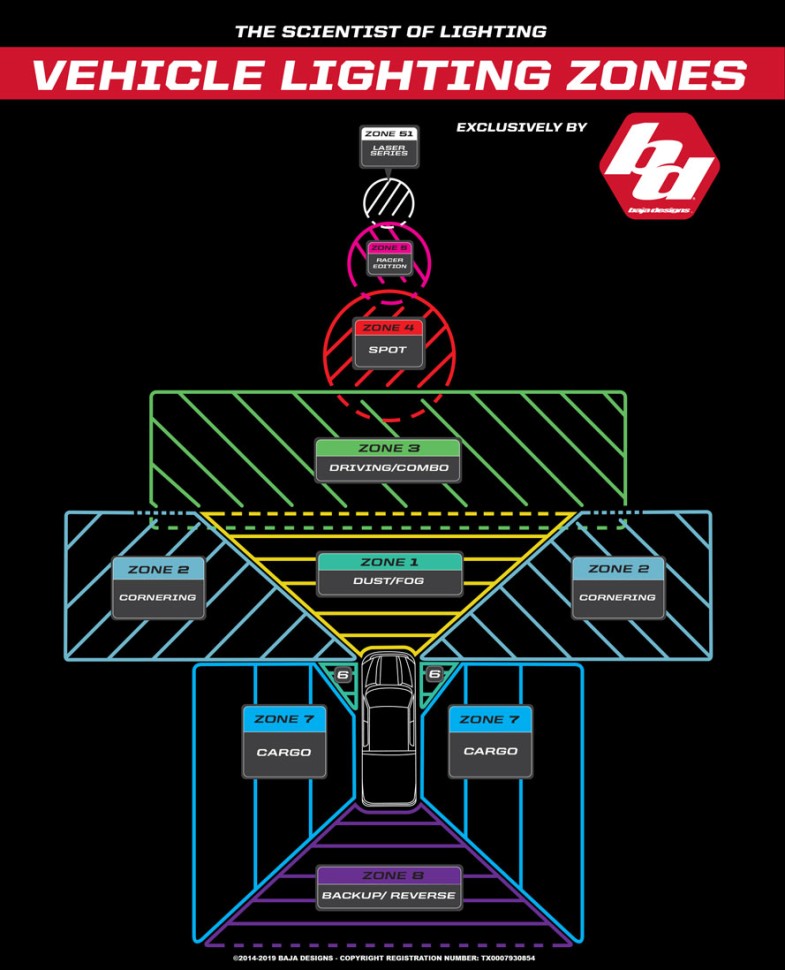

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
Baja Designs 447732 XL Sport Linkable Led Bar Ford F-250/F-350 20-22 - Features
| Light Color | White |
| Watts | 182 |
| Series | XL Linkable |
| Note | This lightbar may interfere with a portion of the viewing window in front facing camera equipped vehicles. |
|
Auto
Show all |
2020||Ford||F-250 2020||Ford||F-350 2021||Ford||F-250 2021||Ford||F-350 2022||Ford||F-250 2022||Ford||F-350 |
| Brand | Baja |
| Headlight type | Light Bar |
| Lumens | 22050 |
| Color | White |
